Diagnostic Circuit Check
›
Fuel Metering Rich Fault Inspection Procedure
Fuel Metering Rich Fault Inspection Procedure

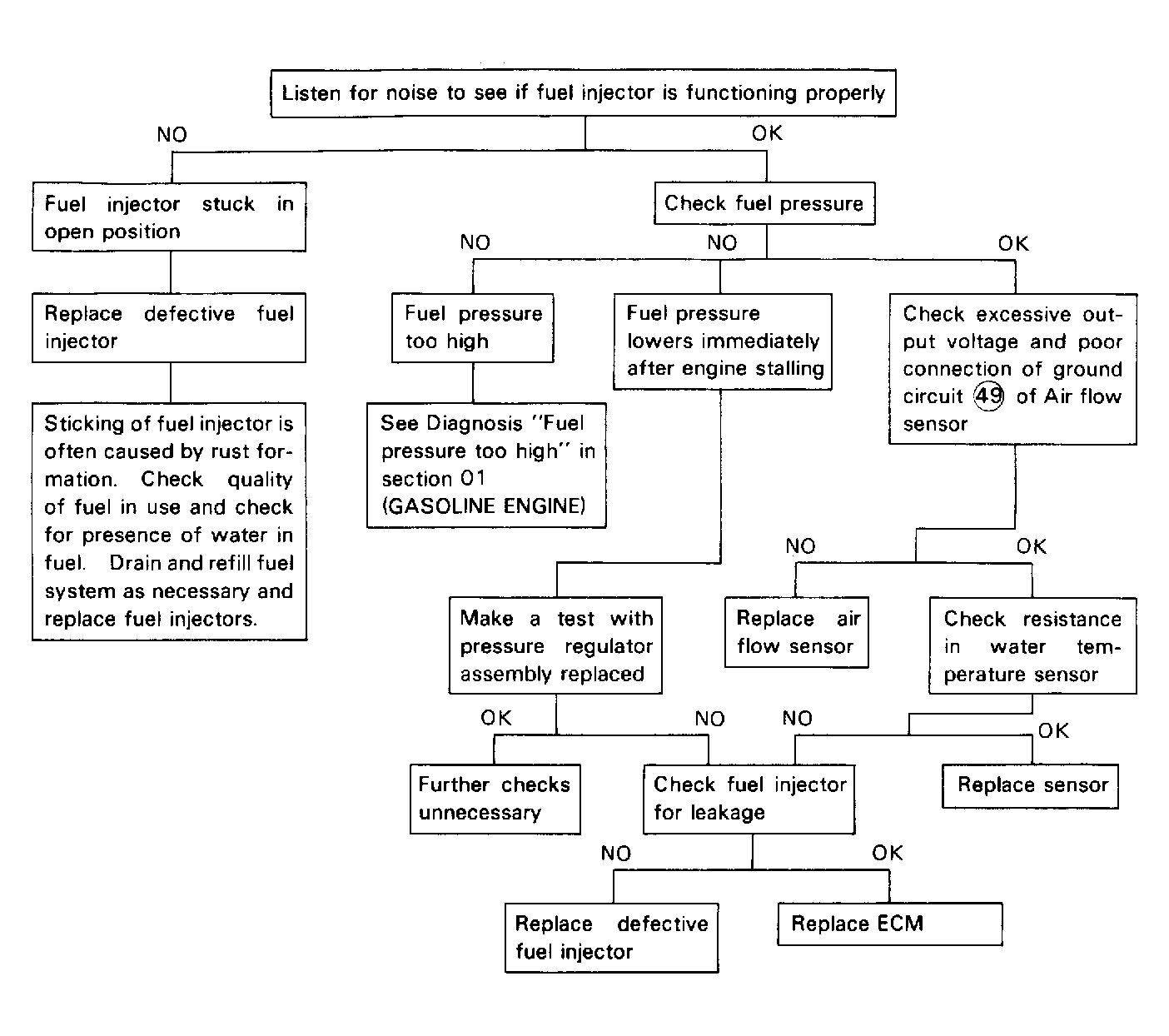

Fig 1: Flow Chart - Fuel Metering Rich Faulty Inspection Procedure
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
