Test 1 - ECM Power Supply
Test 1 - ECM Power Supply

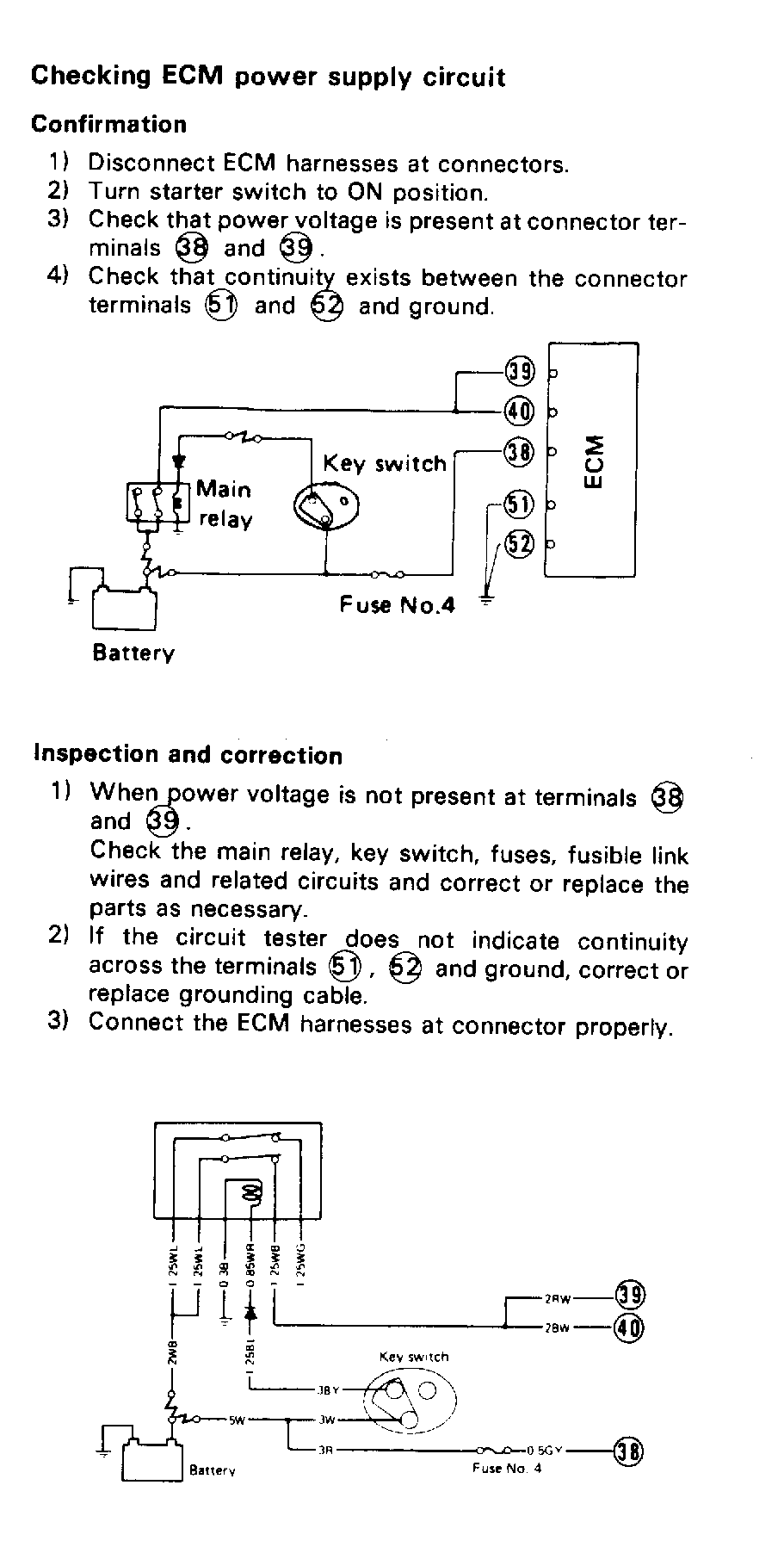

Fig 1: ECM Power Supply Diagnosis & Wiring Schematic
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
