Engine Controls - Tests W/Codes - CARBURETED
›
Trouble Code Charts
›
Code 32 - EGR System Malfunction
Code 32 - EGR System Malfunction

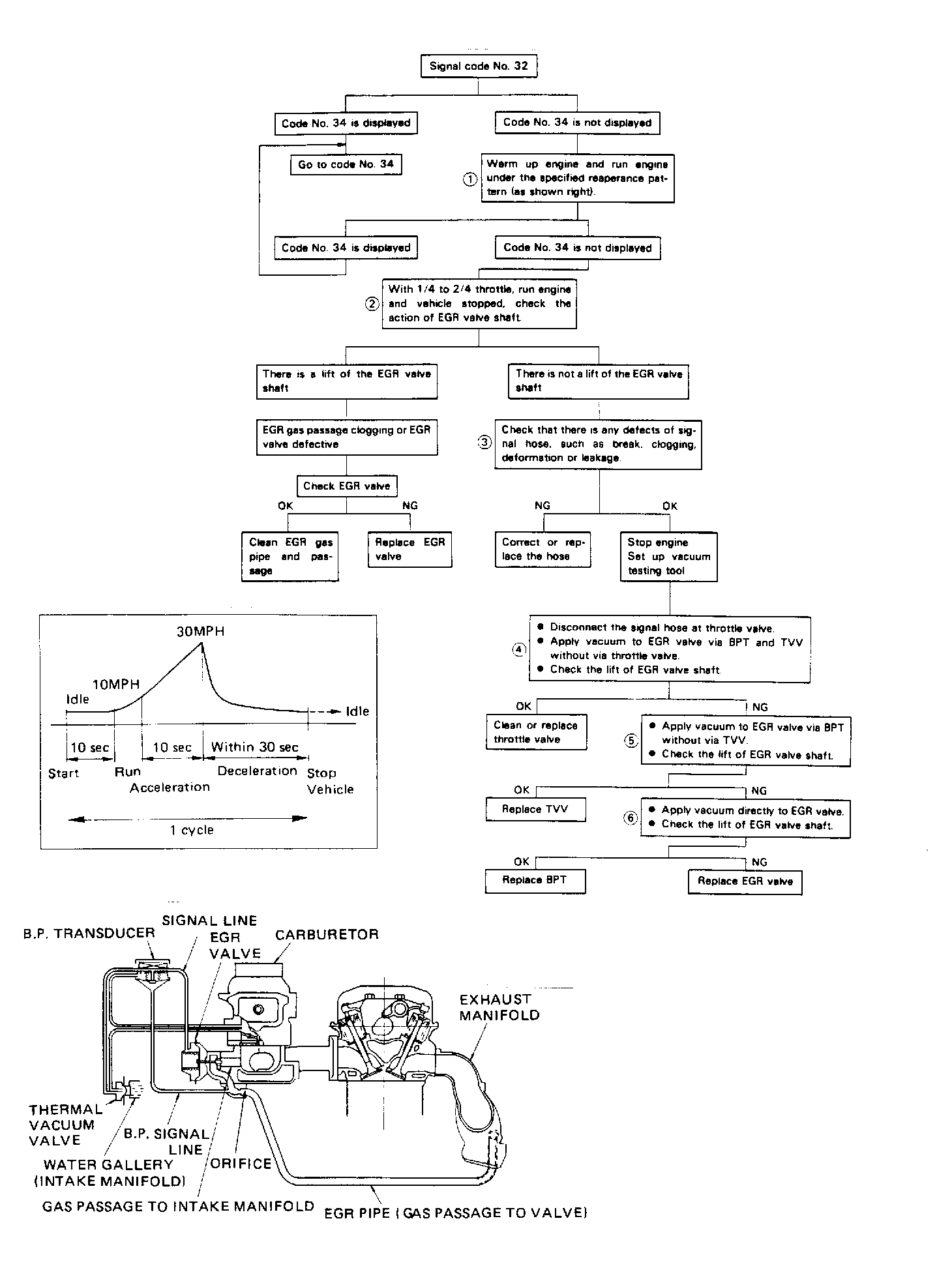

Fig 1: Flow Chart - Code 32, EGR System Malfunction
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
