Engine Controls - Tests W/Codes - CARBURETED
›
Trouble Code Charts
›
Test 2 - No Code 12
Test 2 - No Code 12

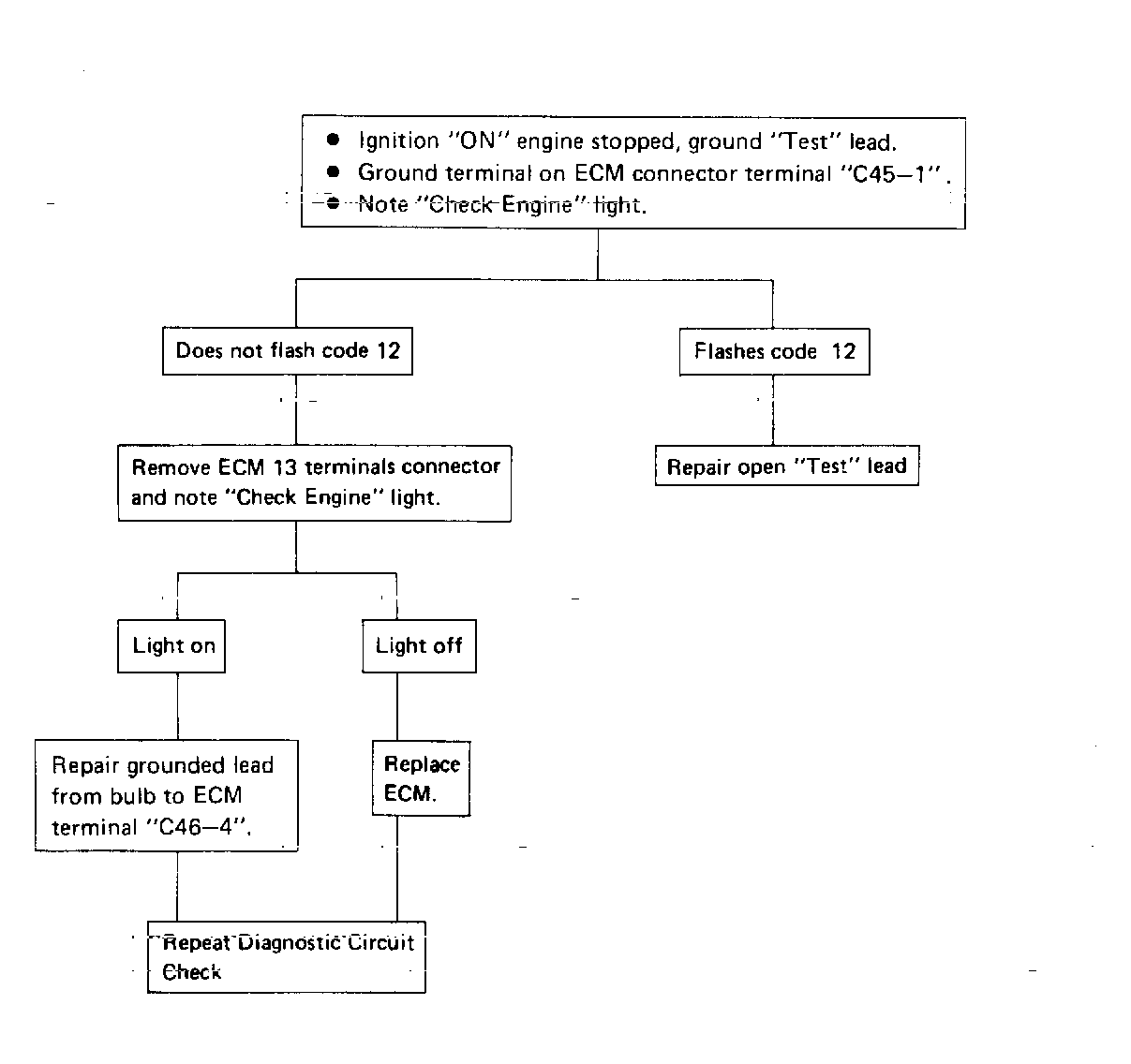

Fig 1: Flow Chart - Test 2, Will Not Flash Code 12
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
