Component Location
NOTE:
For information fuses and fusible links, see FUSES & CIRCUIT BREAKERS
article in ELECTRICAL.
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Diode Box | Left Side Of Engine Compartment, In Fuse/Relay Box |

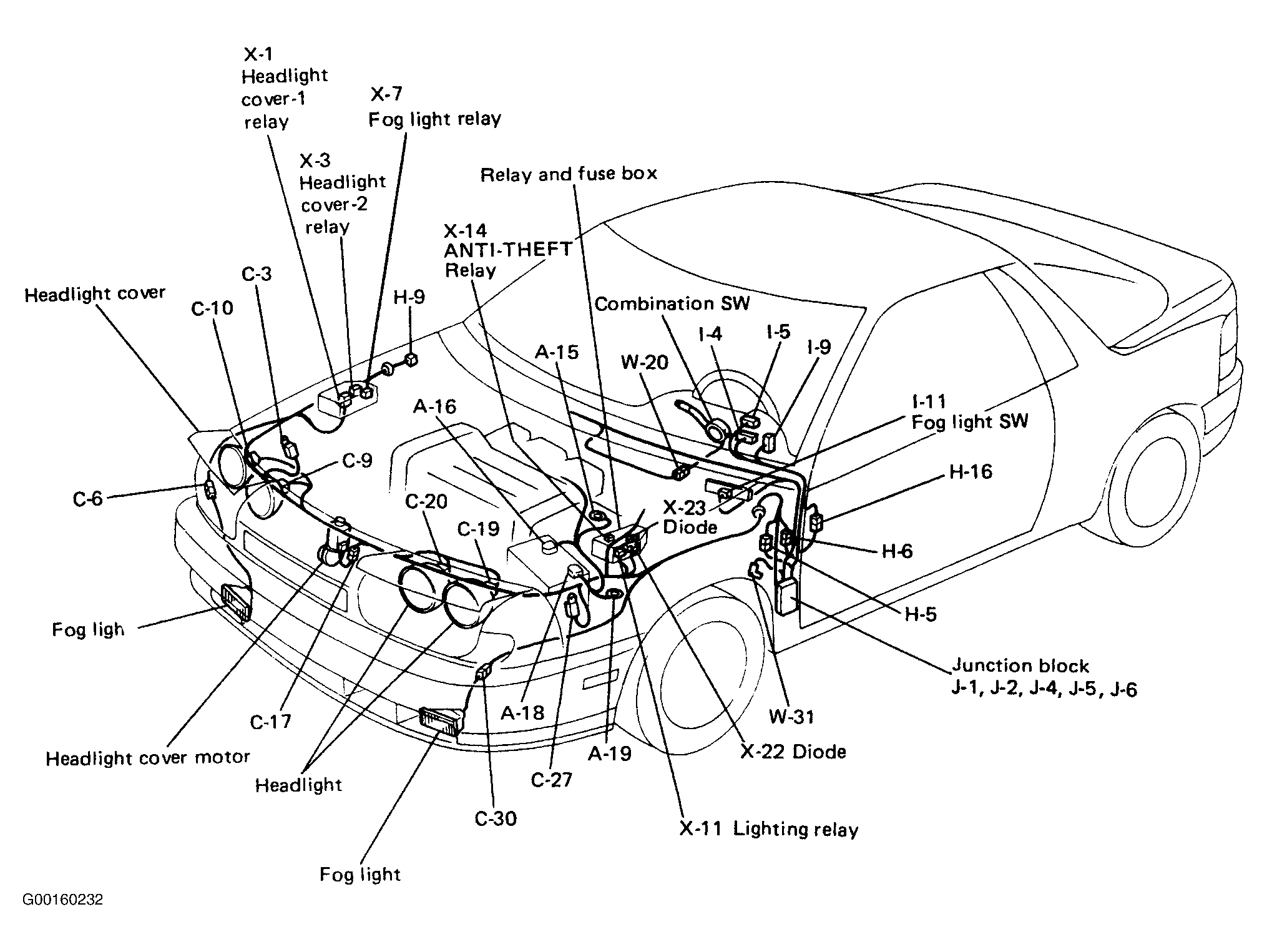

| Headlight Cover | At front of Car Above Headlights, See Fig 1 |
| Headlight Cover Relay | In Engine Bay, On Passenger Side Wheel Well, See Fig 1 |
| Headlight Cover Motor | Very Front Of Vehicle Body, In Engine Bay, Next To Hood Release, See Fig 1 |
| Headlight Switch | In Cab, On Multifunction Switch, See Fig 1 |
| Junction Block | In Engine Lower Engine Bay, Behind Drivers Side Front Wheel, See Fig 1 |
| Lighting Relay | In Relay And Fuse Box, See Fig 1 |
| Relay And Fuse Box | In Engine Bay, On Drivers Side Wheel Well, See Fig 1 |
