Driver's Door Power Window Motor

To inspect the operation of the motor, first start with the driver's power window switch connector before inspecting the motor.

1. Inspection With Driver's Power Window Switch Connector

   Disconnect the switch connector, connect the battery to the harness side connector terminals and check operation. See Fig 1 .

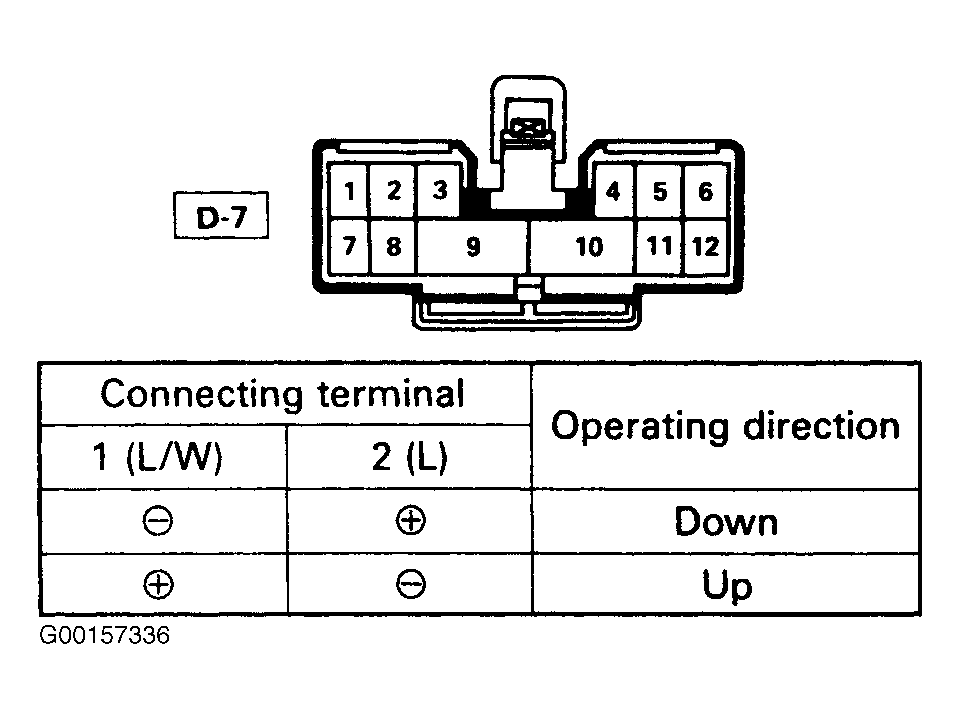

   Fig 1: Inspecting Power Window Switch ConnectorCircuits

   Courtesy of ISUZU MOTOR CO.
2. Inspect With Driver's Side Motor Connector

   Disconnect the motor connector, connect the battery to the motor side connector terminals and check operation. See Fig 2 .

Fig 2: Testing Driver Side Motor

Courtesy of ISUZU MOTOR CO.
