Passenger's Door Power Window Switch

It opens or closes the window on the passenger side. The switch does not function when the lock switch on the driver side is pressed. Check voltage and continuity between the passenger's switch harness side connector terminals. See Fig 1 and Fig 2 .

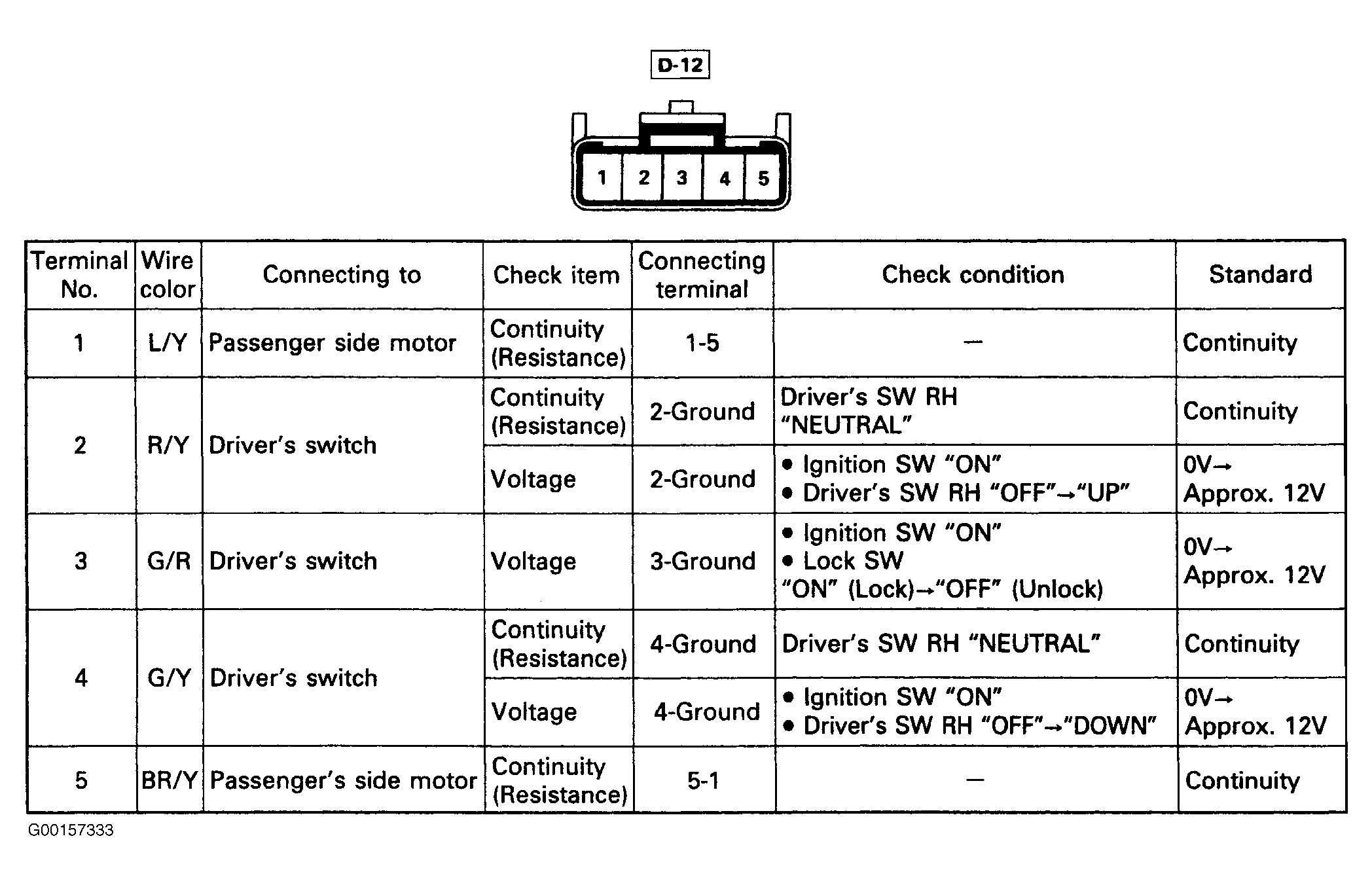

Fig 1: Testing Passenger's Power Window SwitchCircuits

Courtesy of ISUZU MOTOR CO.

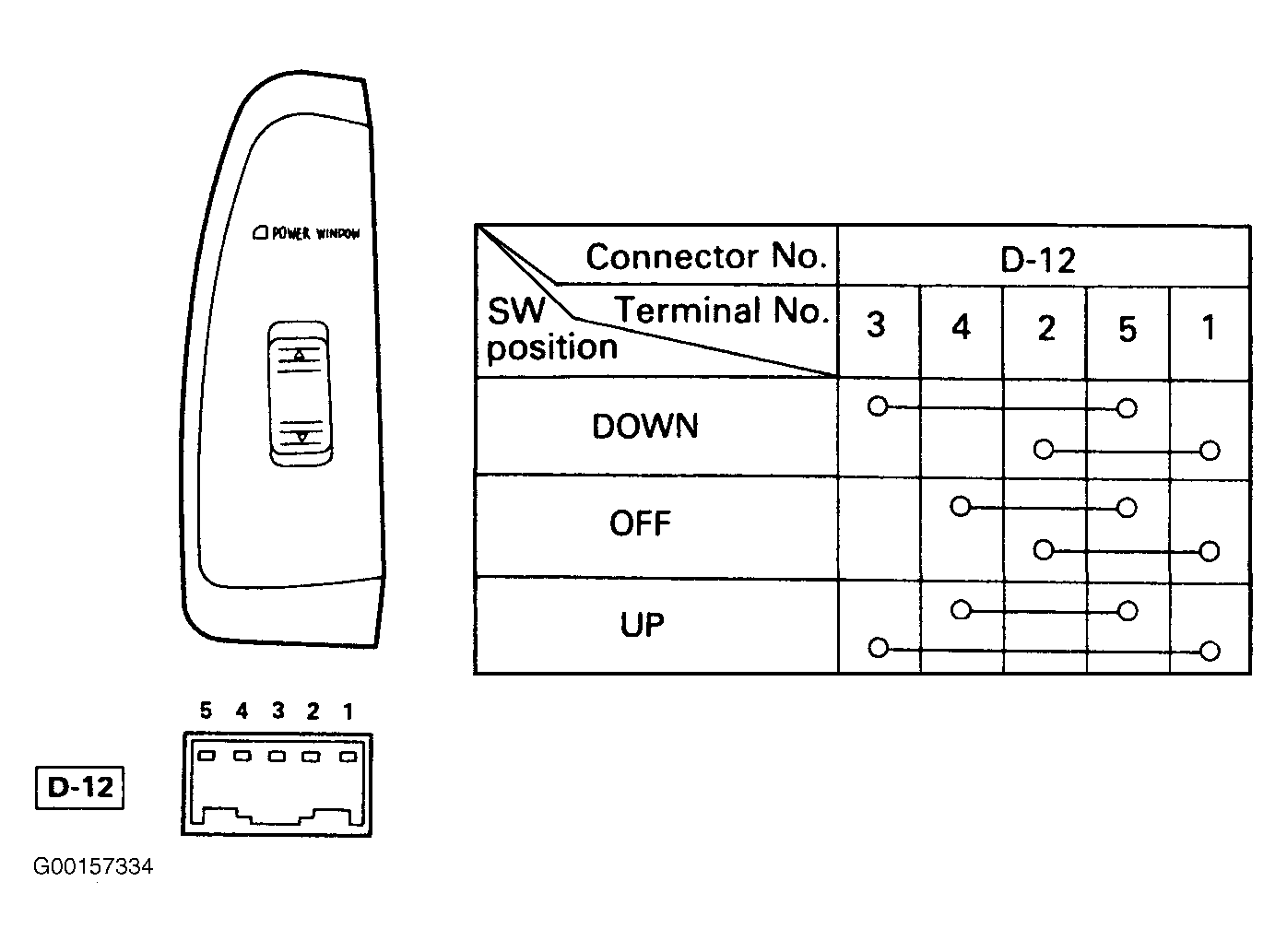

Fig 2: Testing Passenger's Power Window Switch Continuity

Courtesy of ISUZU MOTOR CO.
