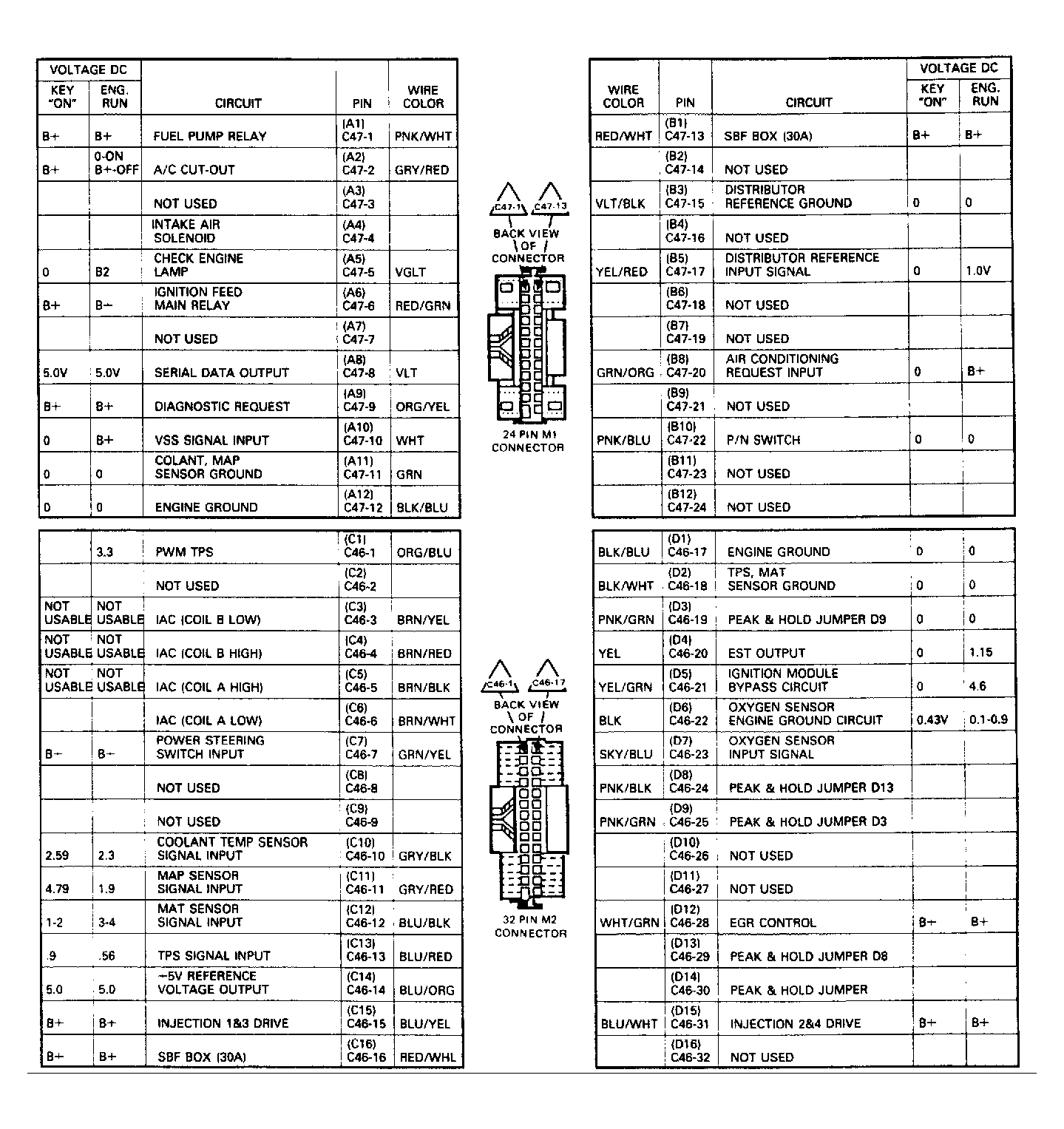

ECM Terminal Identification
The following conditions must be met before testing:
- Engine at normal operating temperature.
- Engine idling at closed loop.
- Scan tester not installed.
- Test terminal not grounded.
- Transaxle in Neutral or Park.
NOTE:
All voltages showing B+ indicate battery or charging system voltage. Voltages showing 0 are ground circuits and should indicate less than .1 volt.
