Code 22: Starter Signal

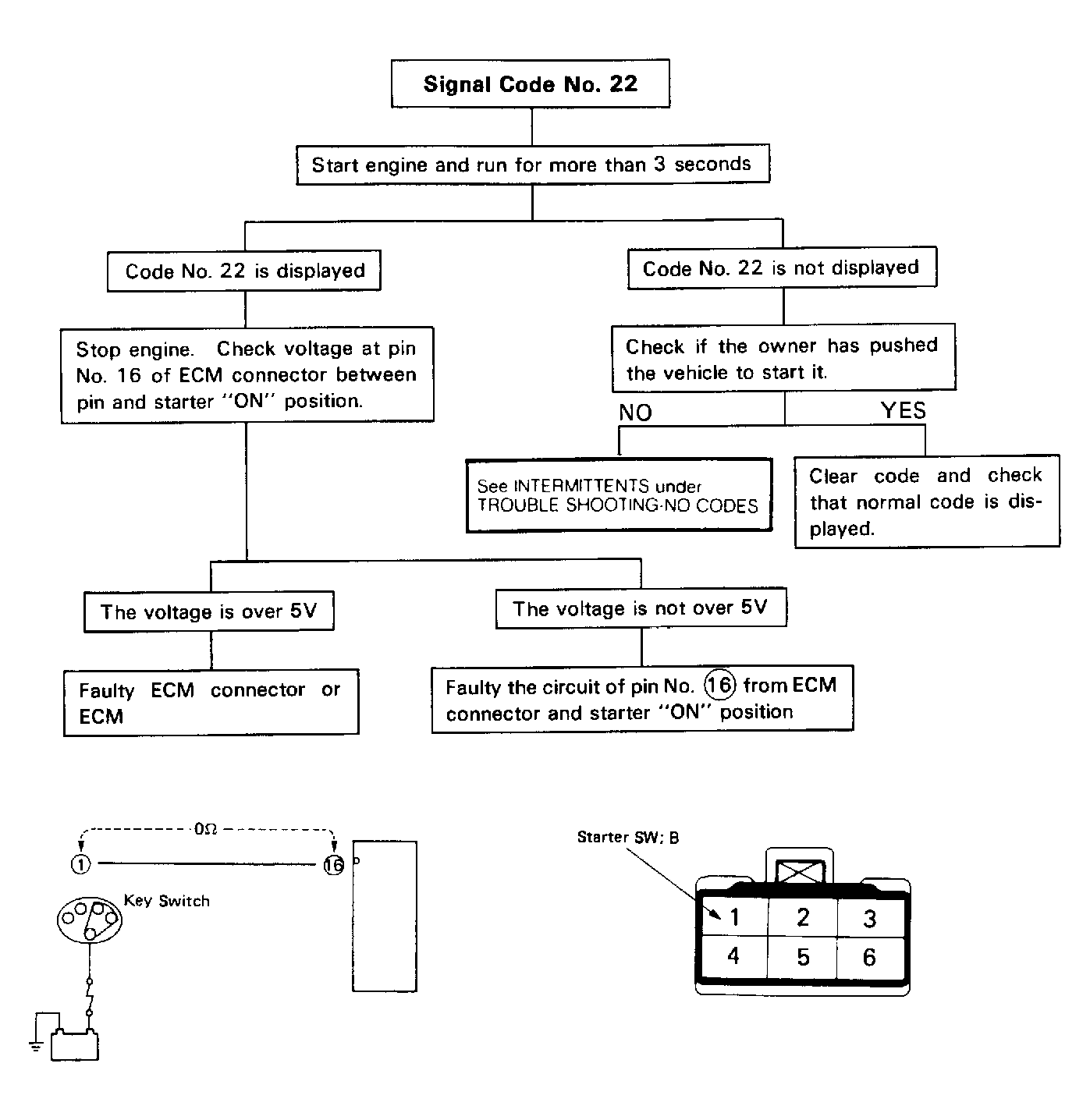

Fig 1: Code 22: Circuit Diagram & Flow Chart Starter Signal
G122235Courtesy of ISUZU MOTOR CO.
