Code 32: EGR System Malfunction

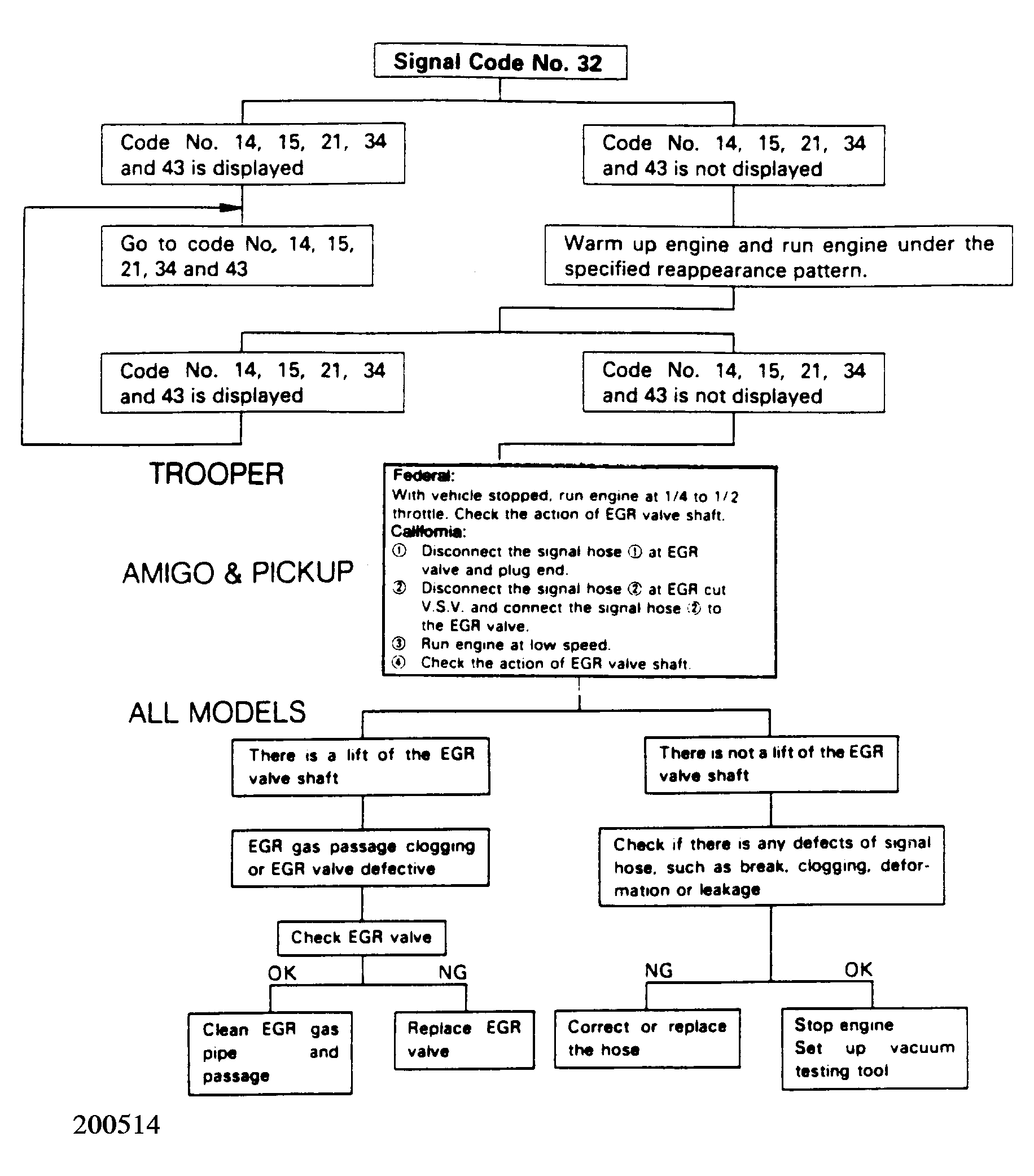

Fig 1: Code 32: Flow Chart (1 of 2), EGR System Malfunction

Courtesy of ISUZU MOTOR CO.

Fig 2: Code 32: Flow Chart (2 of 2 Calif) EGR System Malfunction

Courtesy of ISUZU MOTOR CO.

Fig 3: Code 32: Flow Chart (2 of 2 Federal) EGR System Malfunction

Courtesy of ISUZU MOTOR CO.

Fig 4: Code 32: Specified Reappearance Pattern

Courtesy of ISUZU MOTOR CO.
