Code 41: Crank Angle Sensor Signal

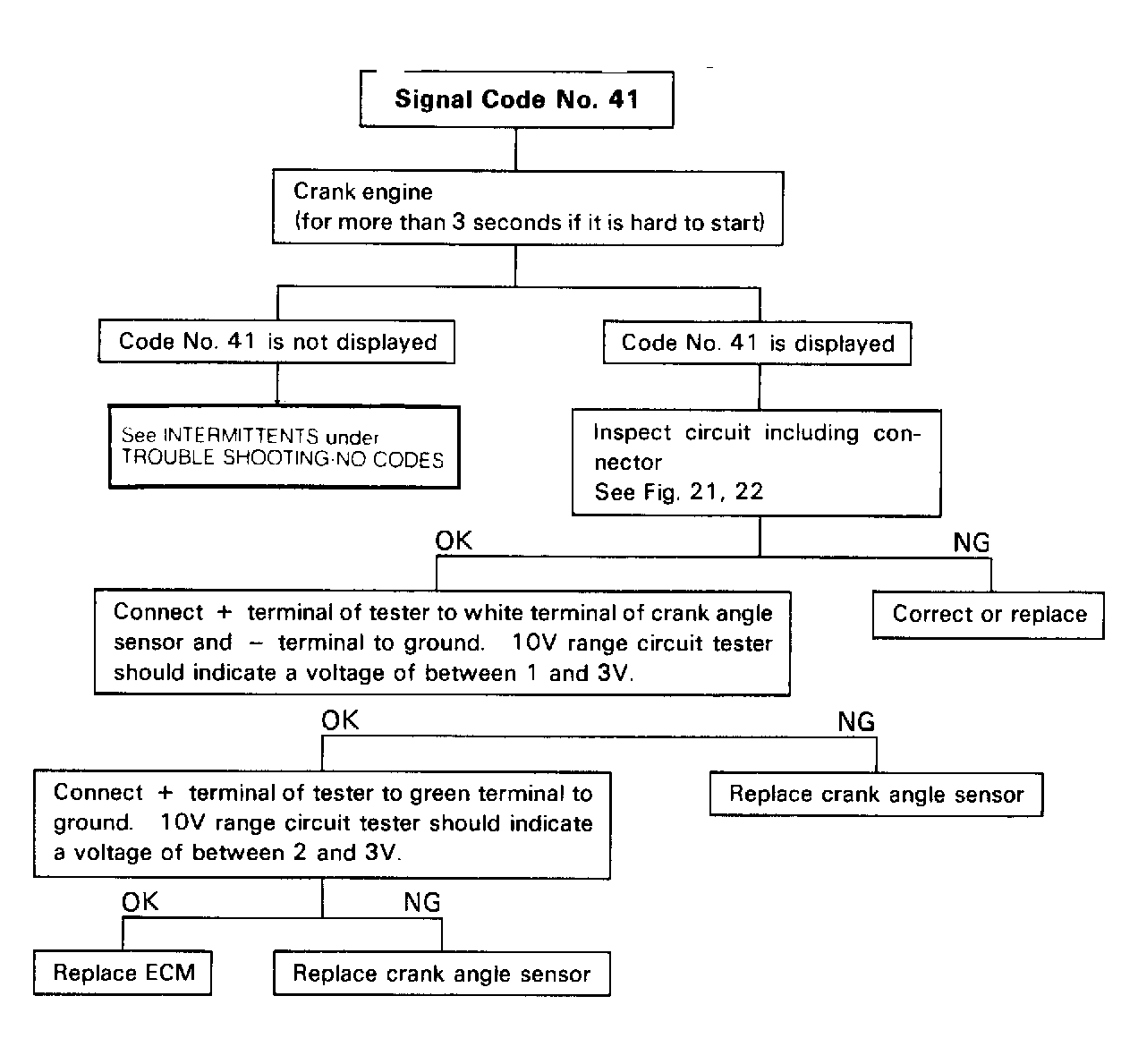

Fig 1: Code 41: Flow Chart Crank Angle Sensor Signal

Courtesy of ISUZU MOTOR CO.

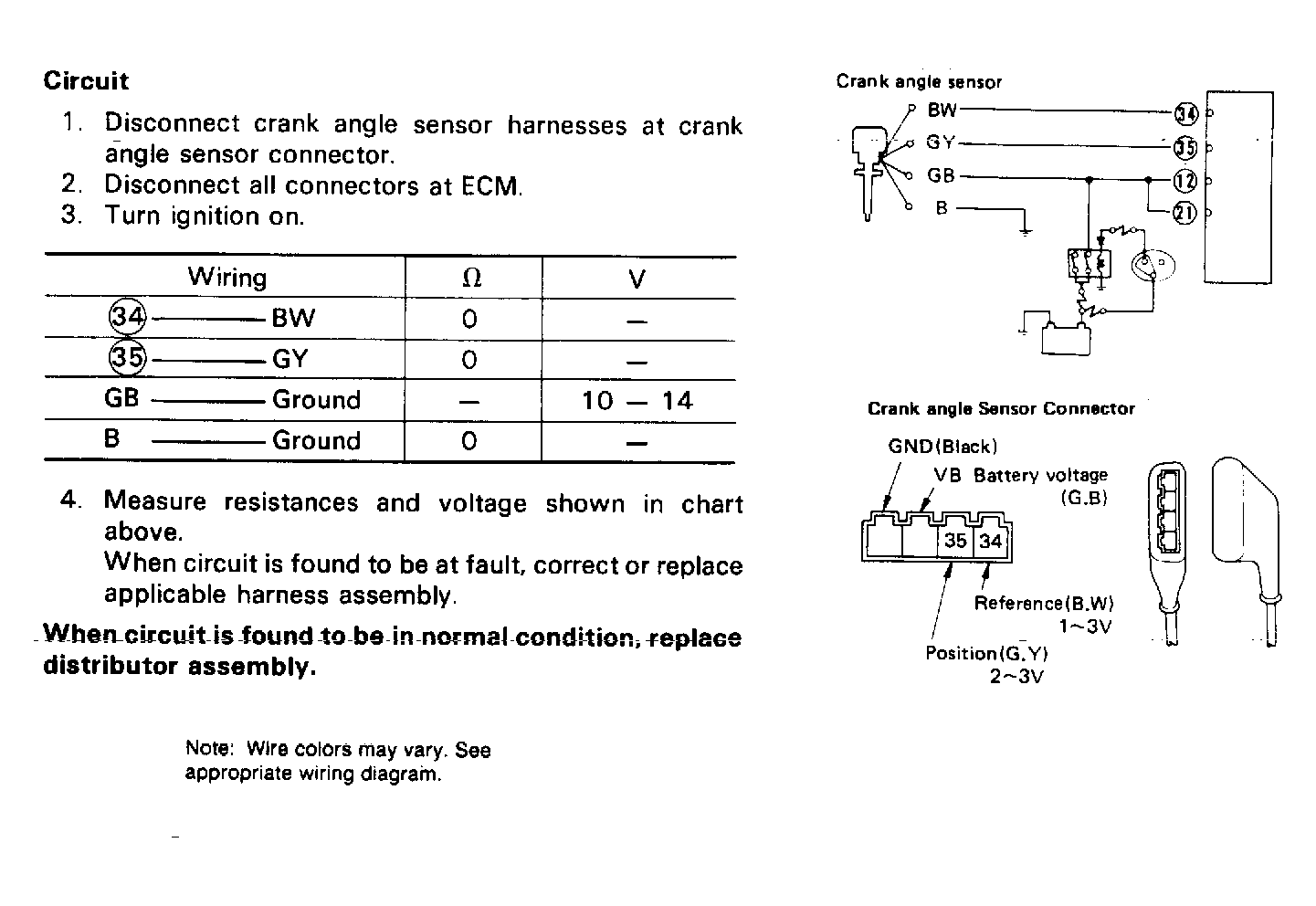

Fig 2: Code 41: Crank Angle Sensor Circuit & Connector Pin Voltages

Courtesy of ISUZU MOTOR CO.
