Engine Controls - Tests W/Codes - 2.6L
›
Diagnostic Circuit Check
›
Ecu Terminal Identification
Ecu Terminal Identification

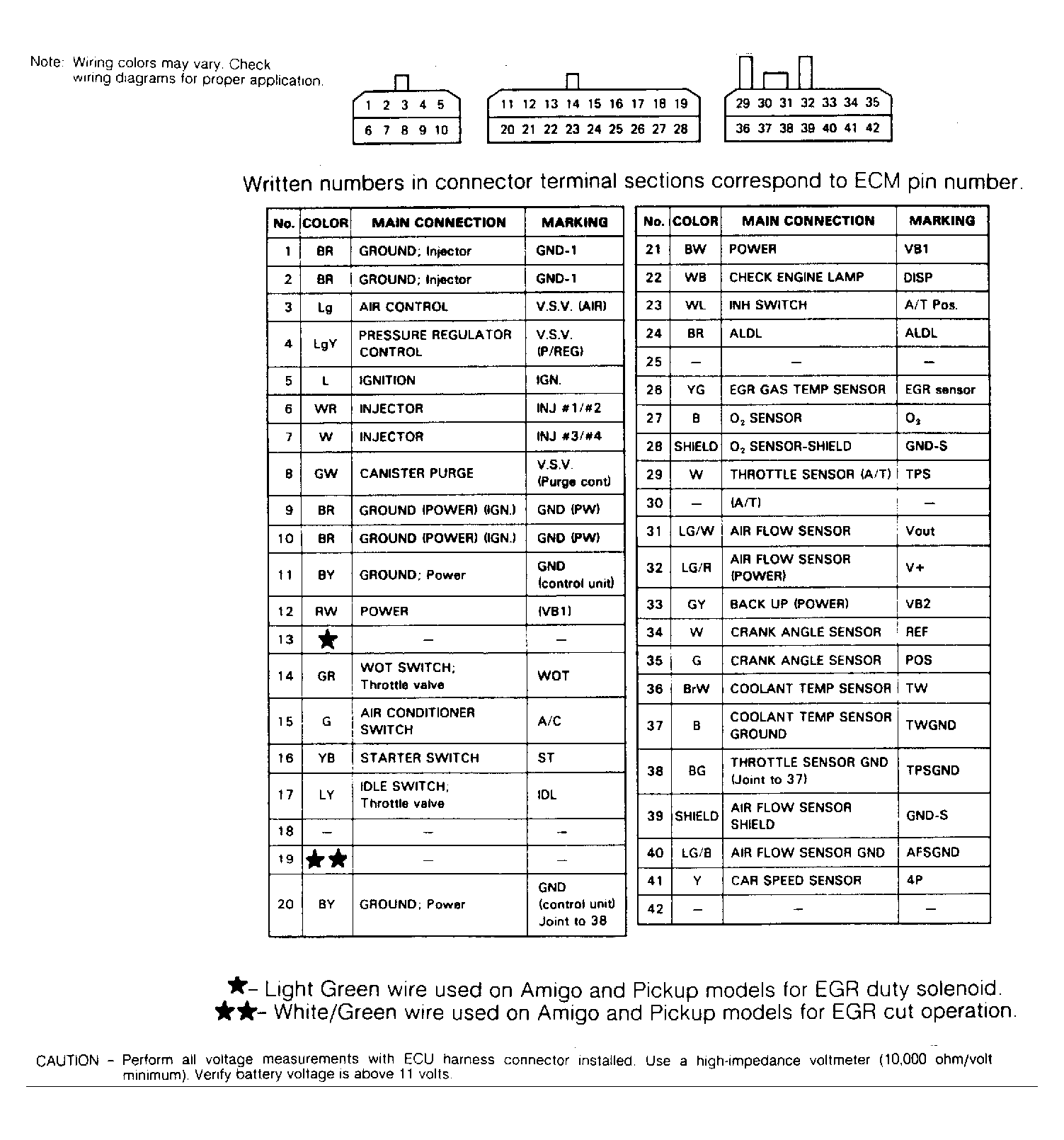

Fig 1: ECU Terminal Identification
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
