FixVault
Home
›
Isuzu
›
1990
›
Pickup 1 Ton, MSG5E
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Controls - Tests W/Codes - CARBURETED
›
Trouble Code Charts
›
Code 21 - Idle (Vacuum) Switch Or Map Sensor
Code 21 - Idle (Vacuum) Switch Or Map Sensor

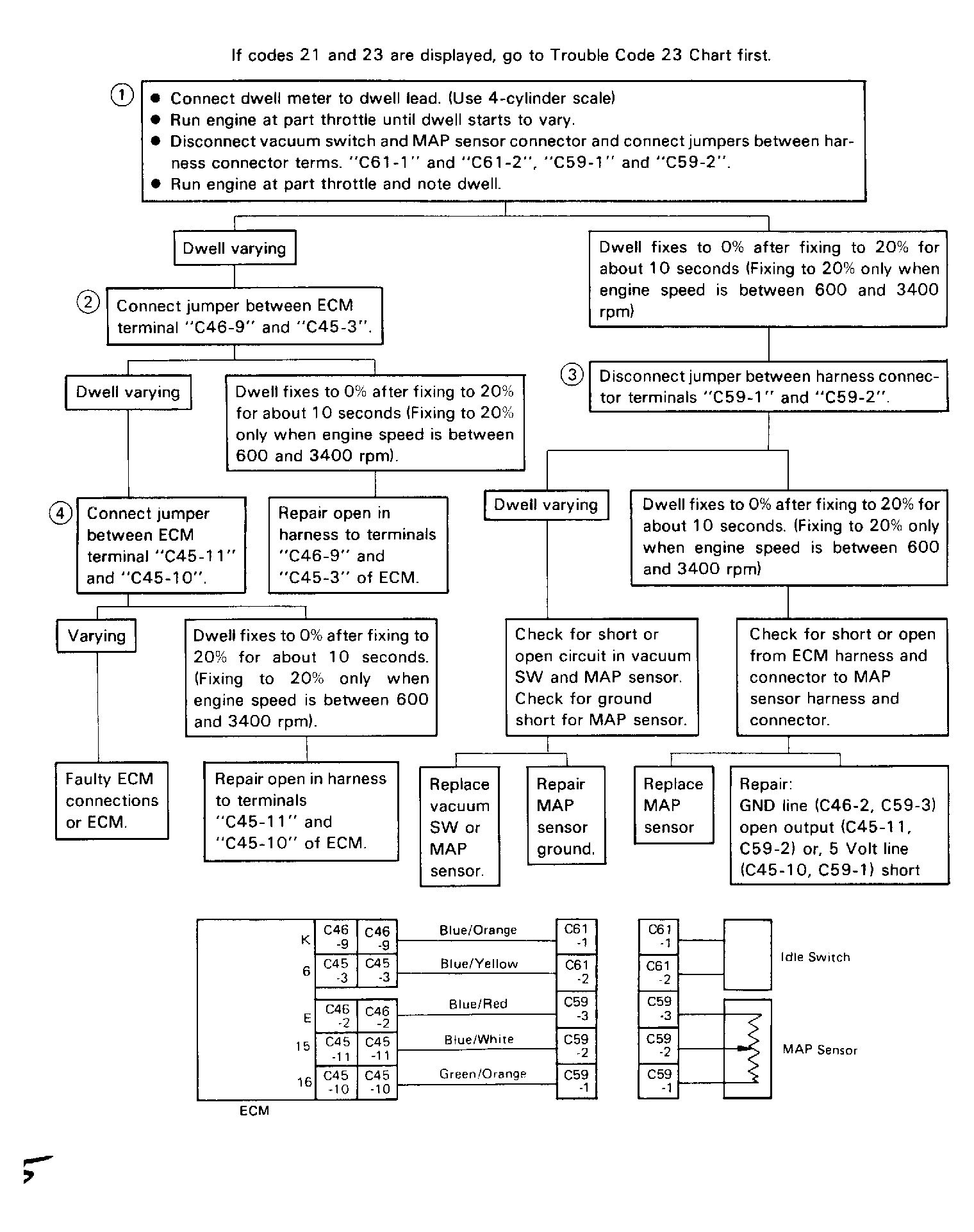

Fig 1: Flow Chart - Code 21, Idle (Vacuum) Switch Or Map Sensor
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
