Code 14: Coolant Temp Sensor Shorted

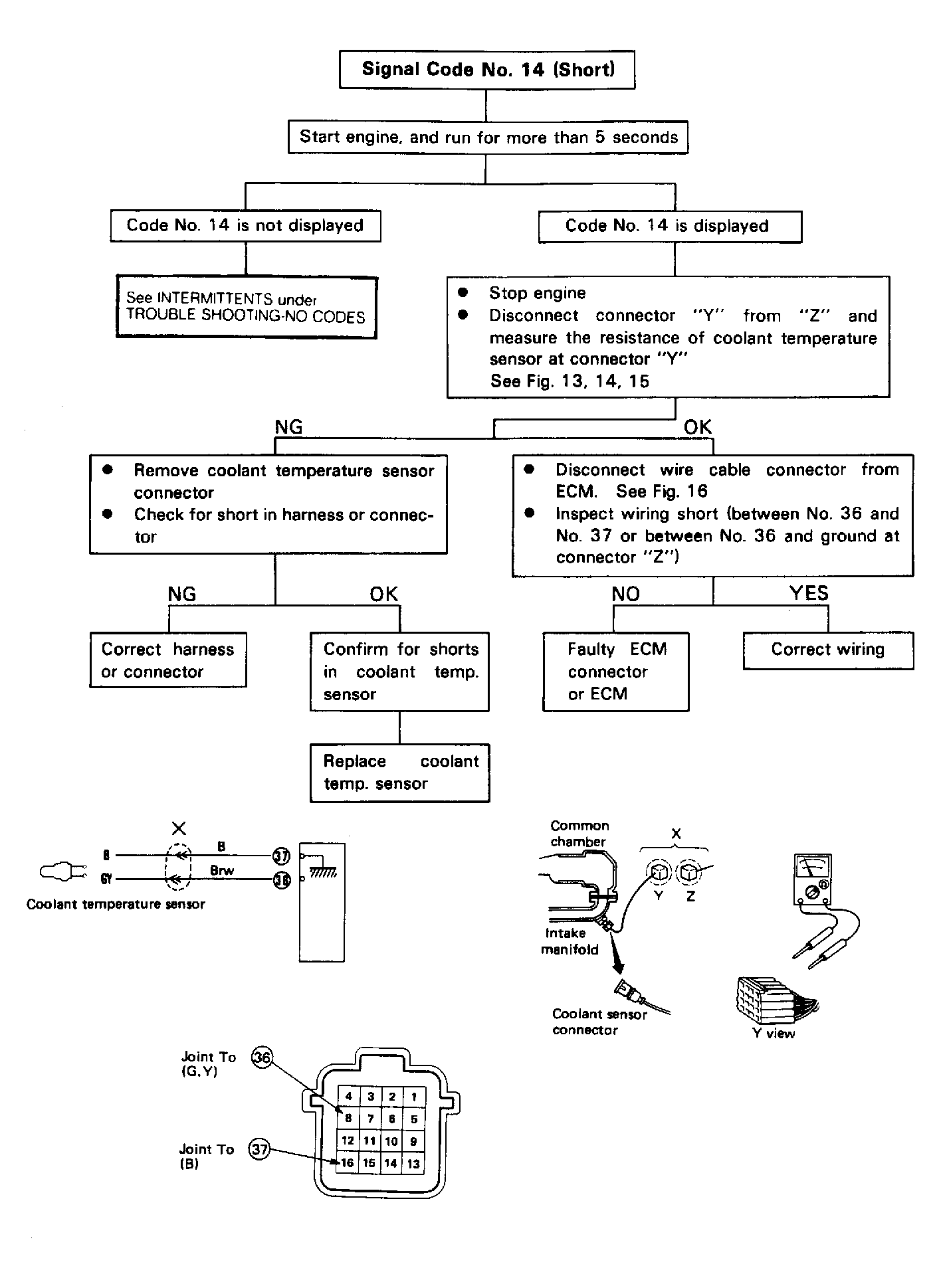

Fig 1: Code 14: Circuit Diagram & Flow Chart CTS Shorted
G122232Courtesy of ISUZU MOTOR CO.
