Engine Controls - Tests W/Codes - 2.6L
›
Diagnostic Circuit Check
›
Code 35: Power Transistor Circuit
Code 35: Power Transistor Circuit

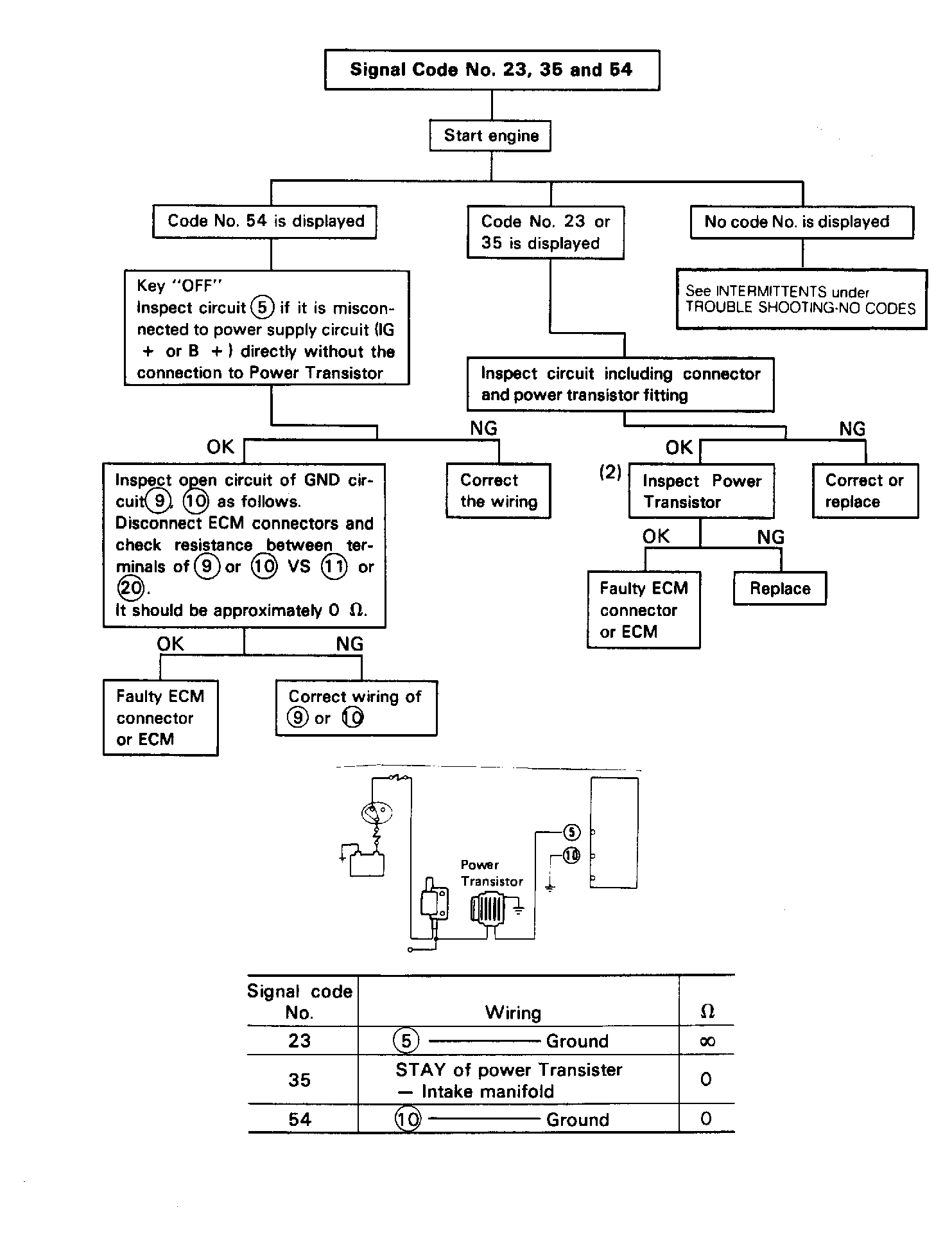

Fig 1: Code 35: Flow Chart Power Transistor Circuit
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
