Code 63: VSS Signal

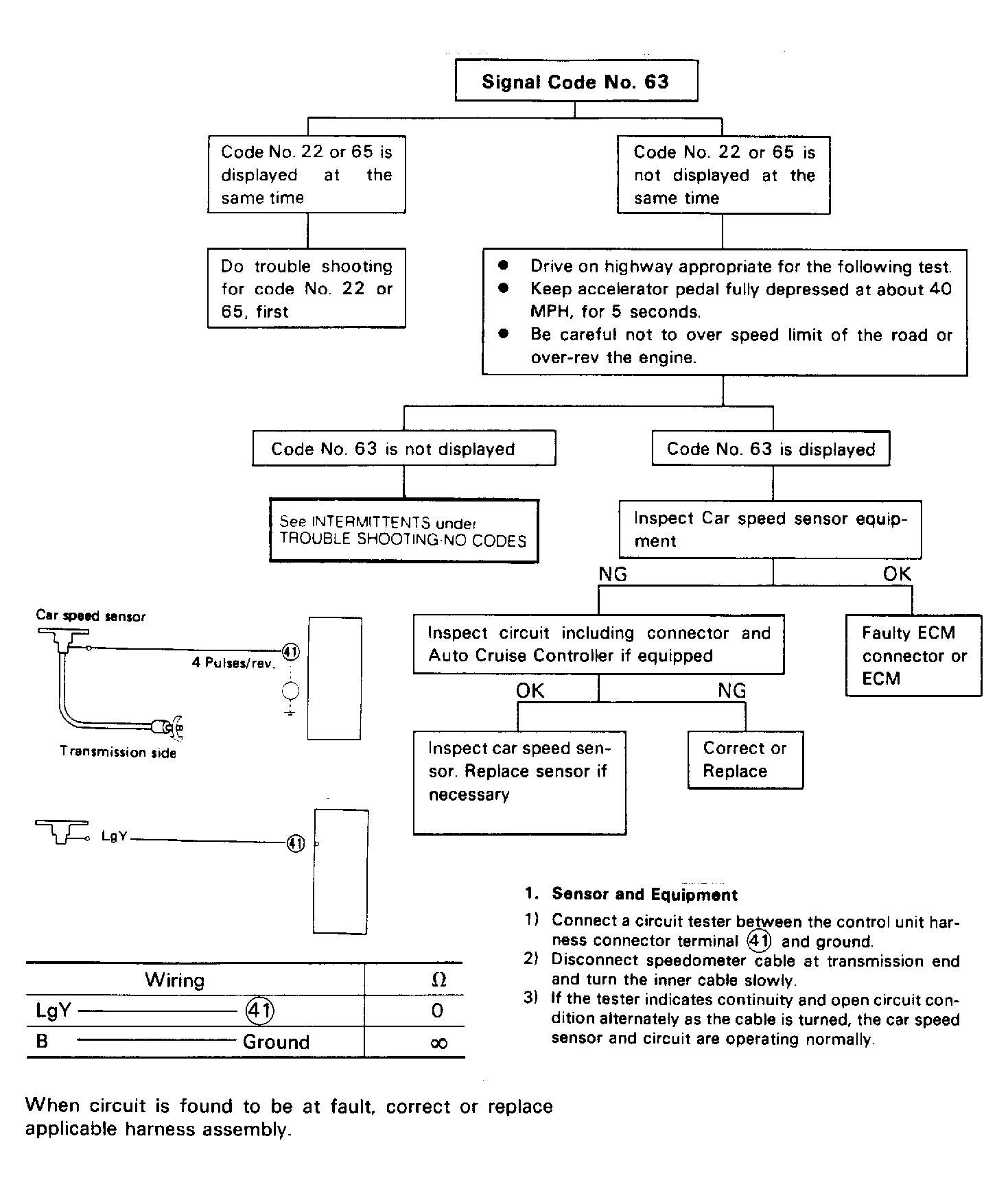

Fig 1: Code 63: Circuit Diagram & Flow Chart, Sensor & Equipment Test
G122260Courtesy of ISUZU MOTOR CO.

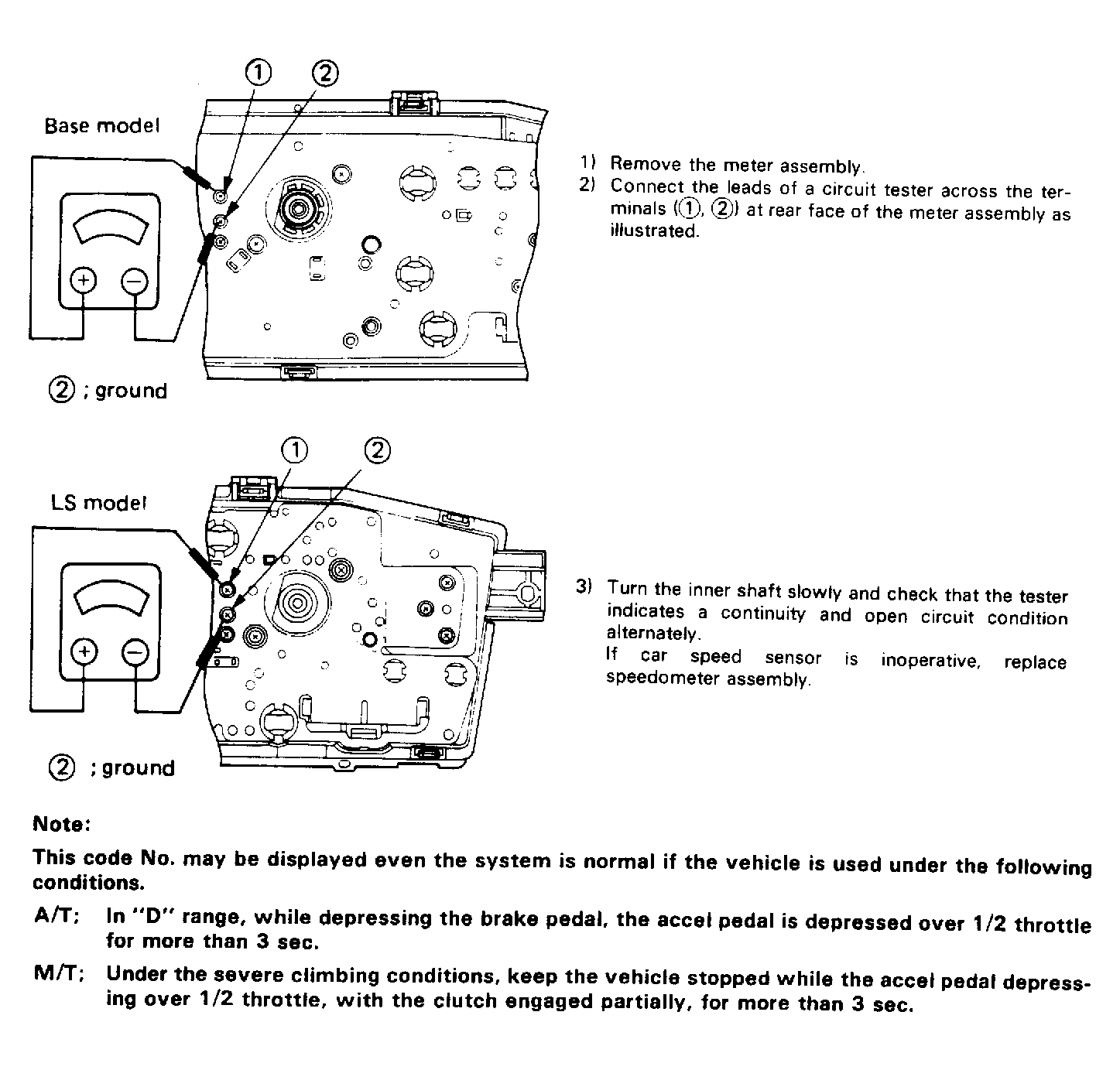

Fig 2: Code 63: Car Speed Sensor Test & Test Points
G122261Courtesy of ISUZU MOTOR CO.
