Code 61 & 62: Airflow Sensor Circuit

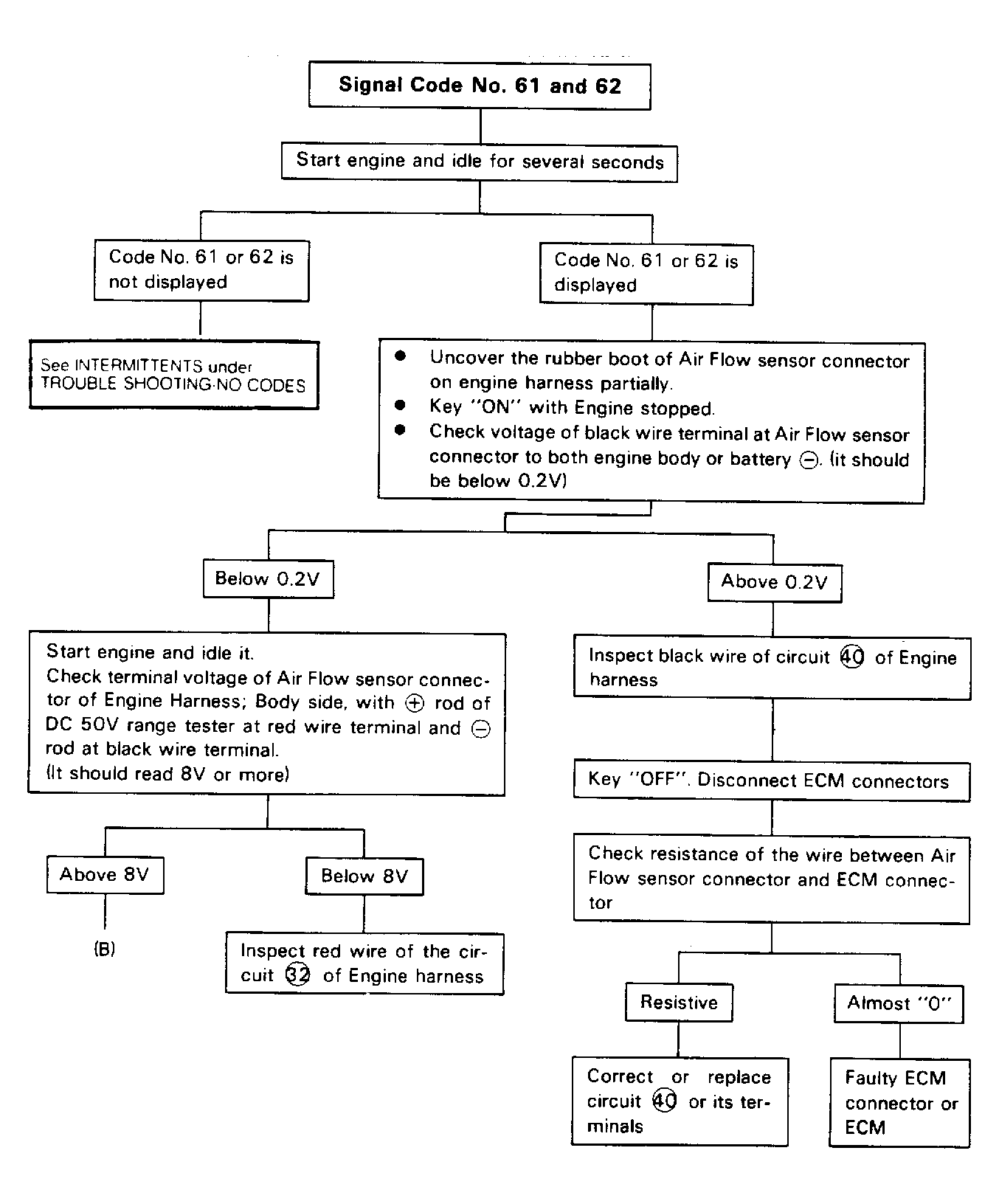

Fig 1: Code 61 & 62: Flow Chart, Airflow Sensor Circuit (1 of 2)

Courtesy of ISUZU MOTOR CO.

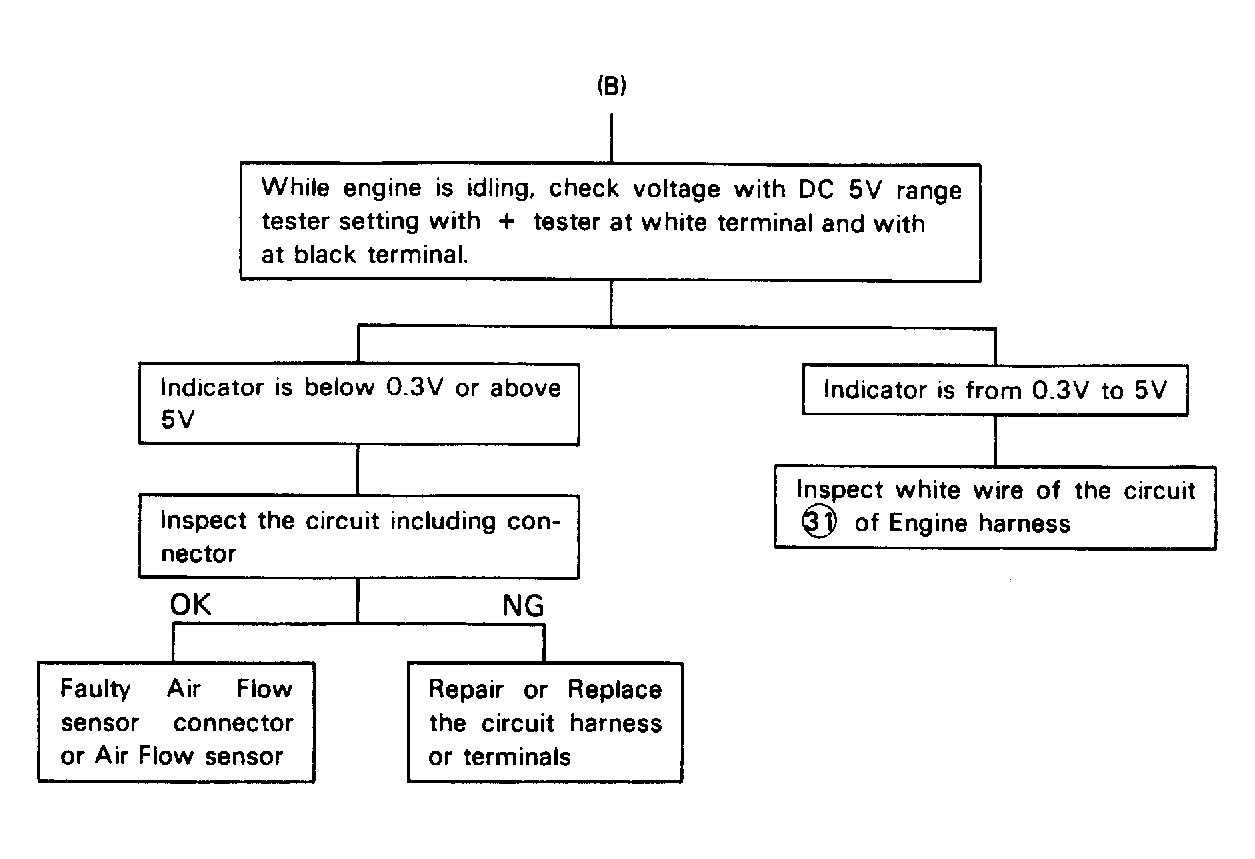

Fig 2: Code 61 & 62: Flow Chart, Airflow Sensor Circuit (2 of 2)

Courtesy of ISUZU MOTOR CO.

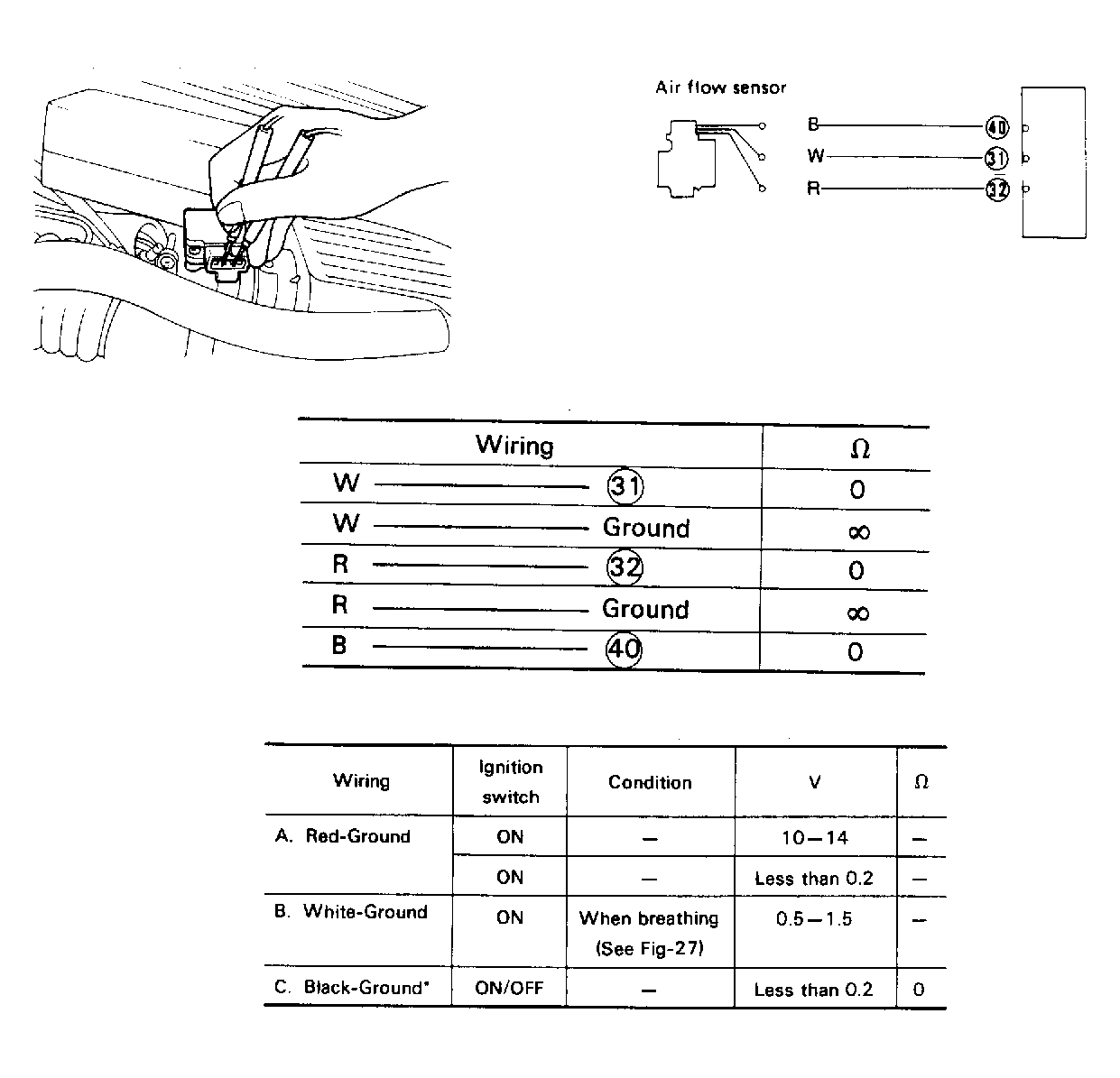

Fig 3: Airflow Sensor Schematic & Circuit Voltages

Courtesy of ISUZU MOTOR CO.
