Wiring Diagrams

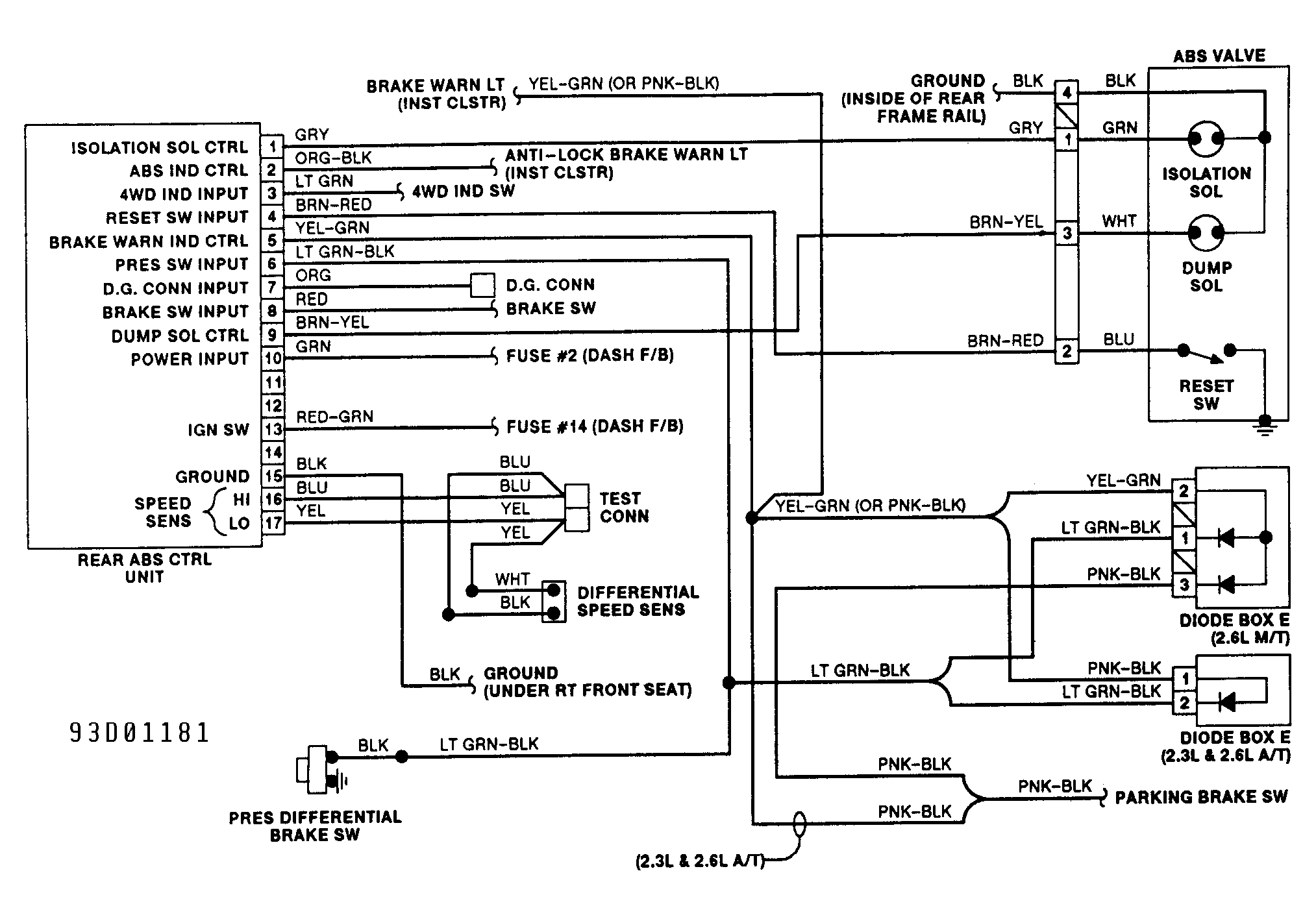

Fig 1: Anti-Lock Brake System Wiring Diagram (Amigo & Pickup)

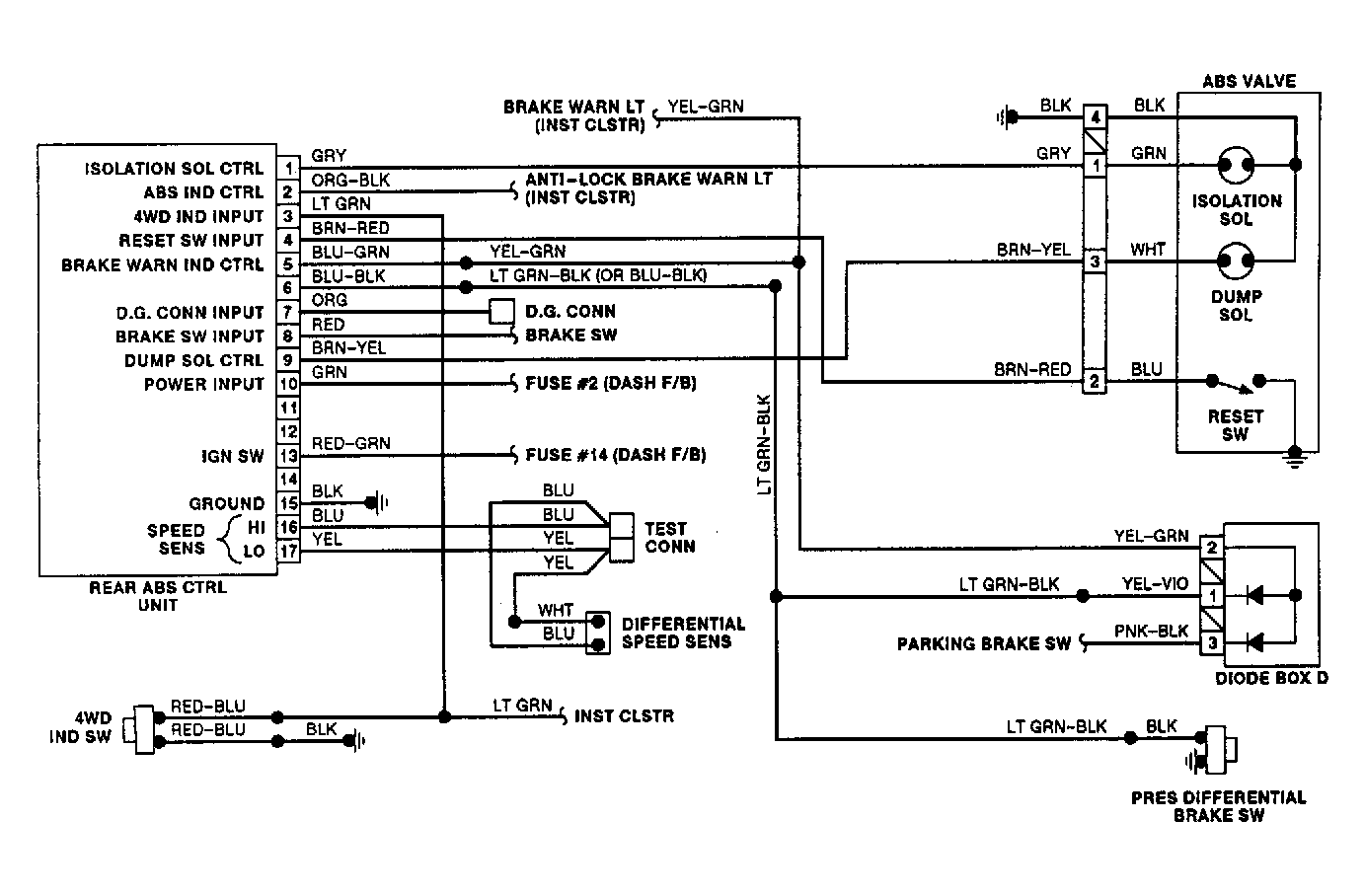

Fig 2: Anti-Lock Brake System Wiring Diagram (Rodeo)

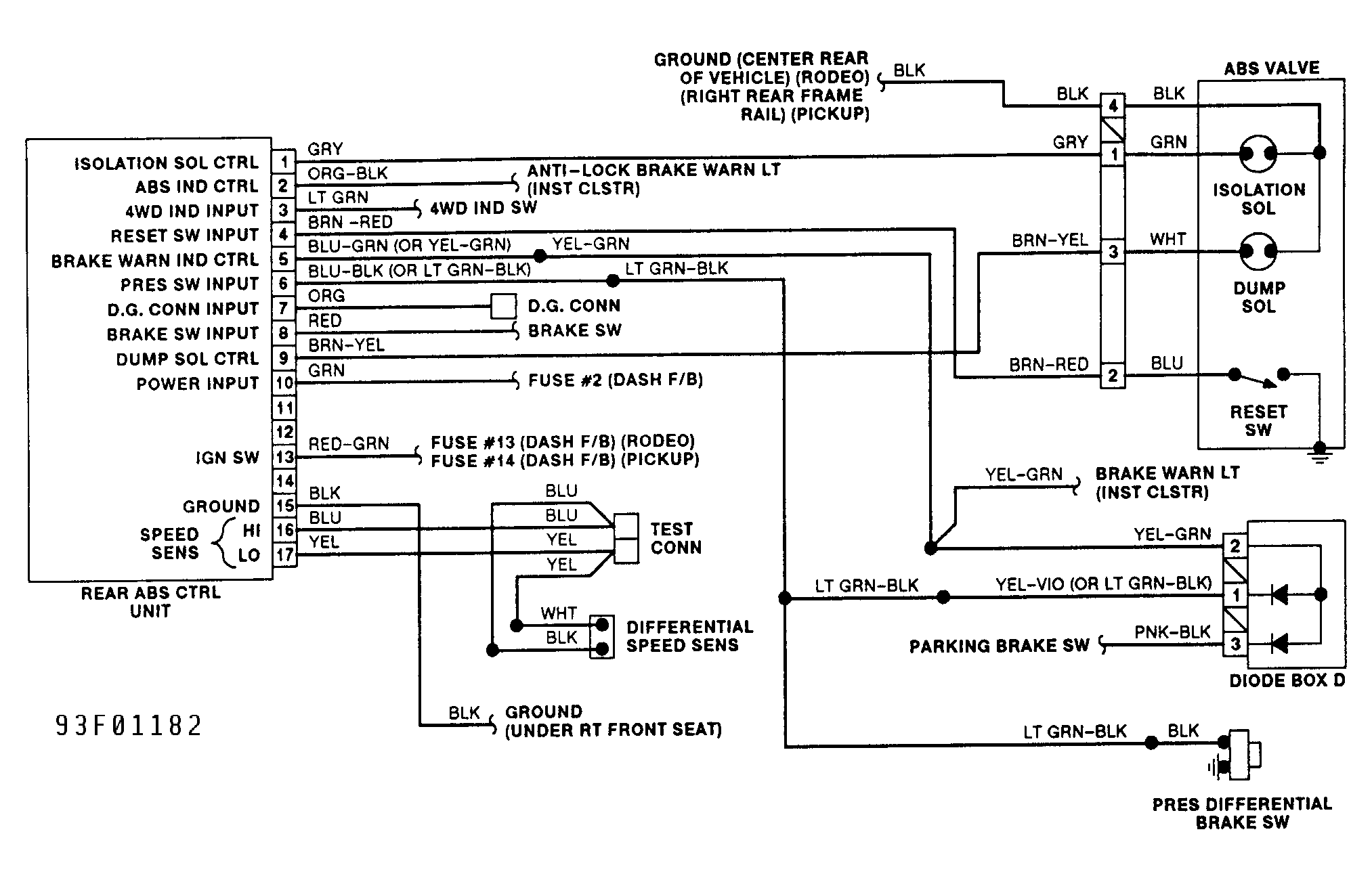

Fig 3: Anti-Lock Brake System Wiring Diagram (Trooper)

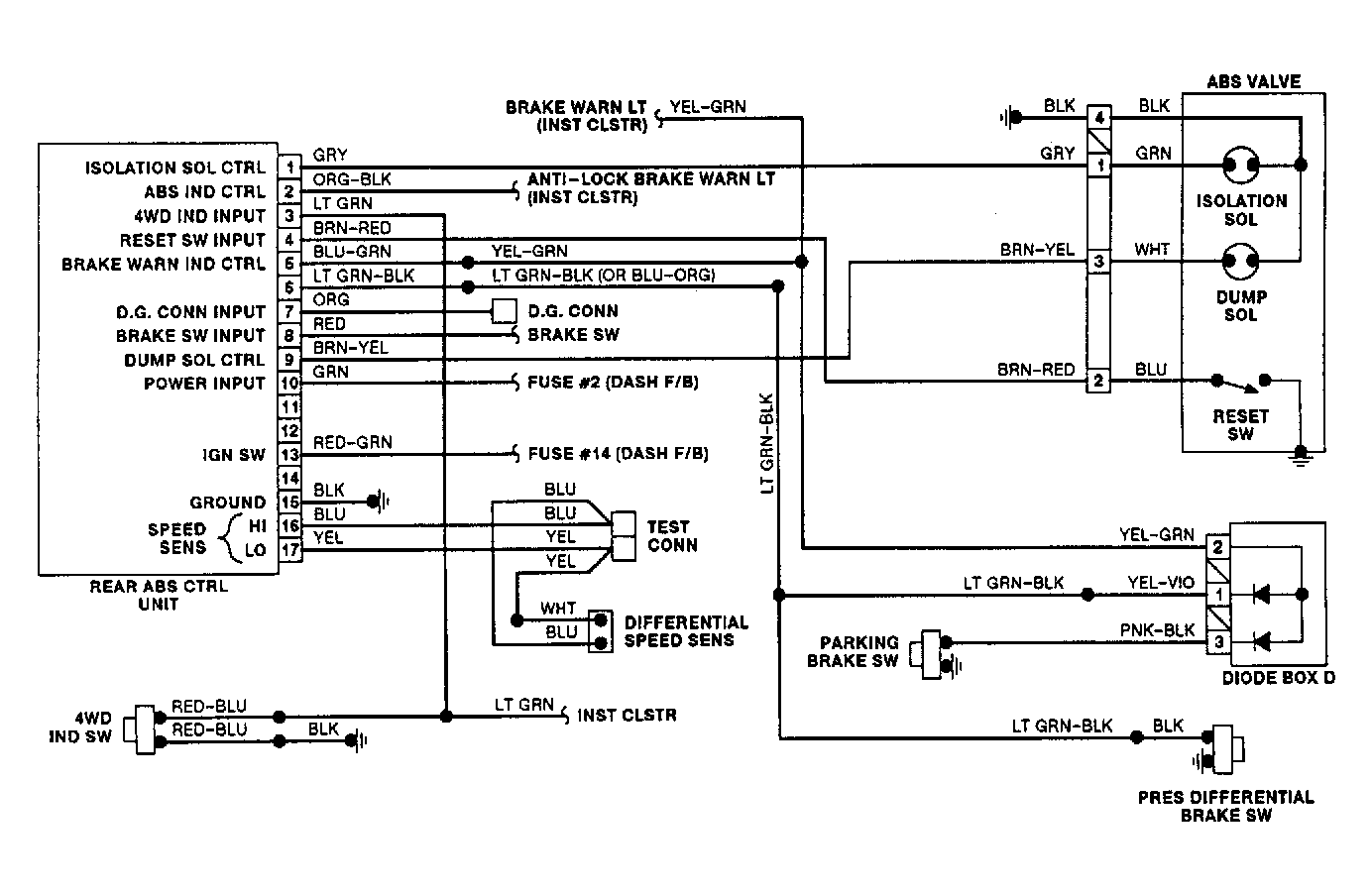

Fig 4: Anti-Lock Brake System Wiring Diagram (1991 Pickup)

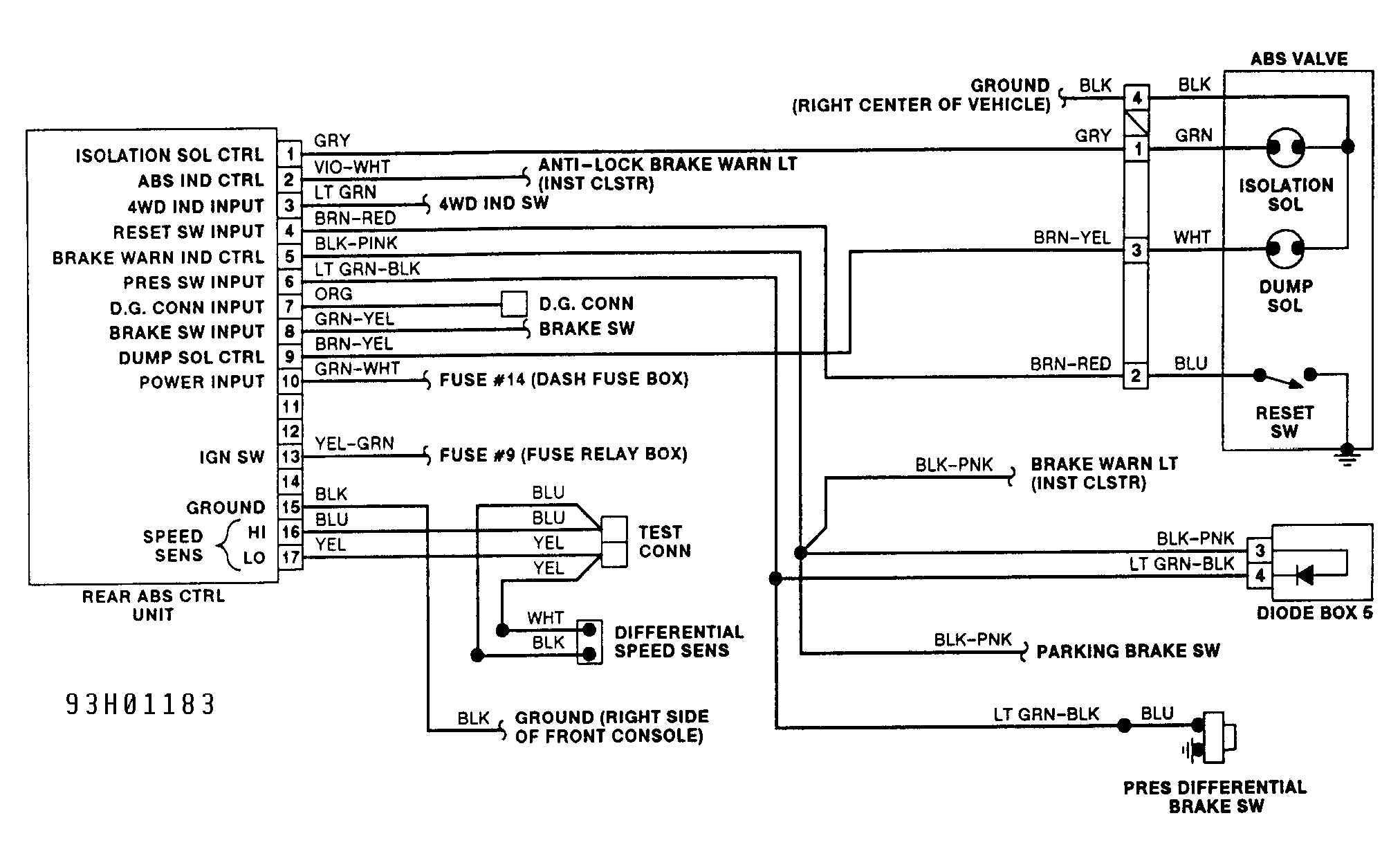

Fig 5: Anti-Lock Brake System Wiring Diagram (1991 Rodeo)
