Inspection & Repair

Check the continuity between the switch terminals. See Fig 1 . If readings are not as specified, replace switch. See KEY DETECT SWITCH  under REMOVAL & INSTALLATION.

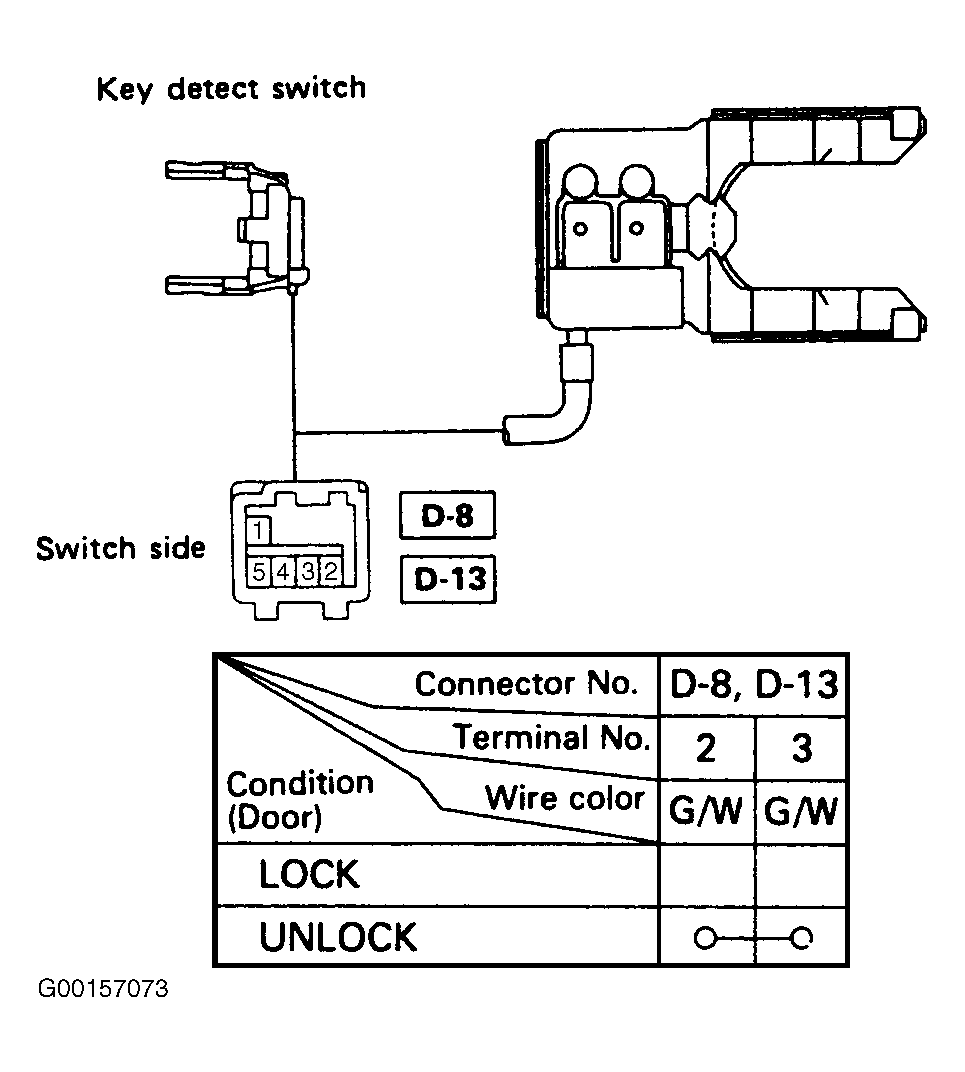

Fig 1: Testing Key Detect Switch Connectors D-8 & D-13

Courtesy of ISUZU MOTOR CO.
