Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Circuit Breaker: Power Windows (2.6L & 3.1L) | In passenger compartment fuse/relay block. | |
| Fuse Block | On left side of dash, behind access panel. See Figure . | |
| Fuse/Relay Block | ||
| 2.3L Overhead View of Engine Compartment | On right side of engine compartment, near battery. See Figure . | |

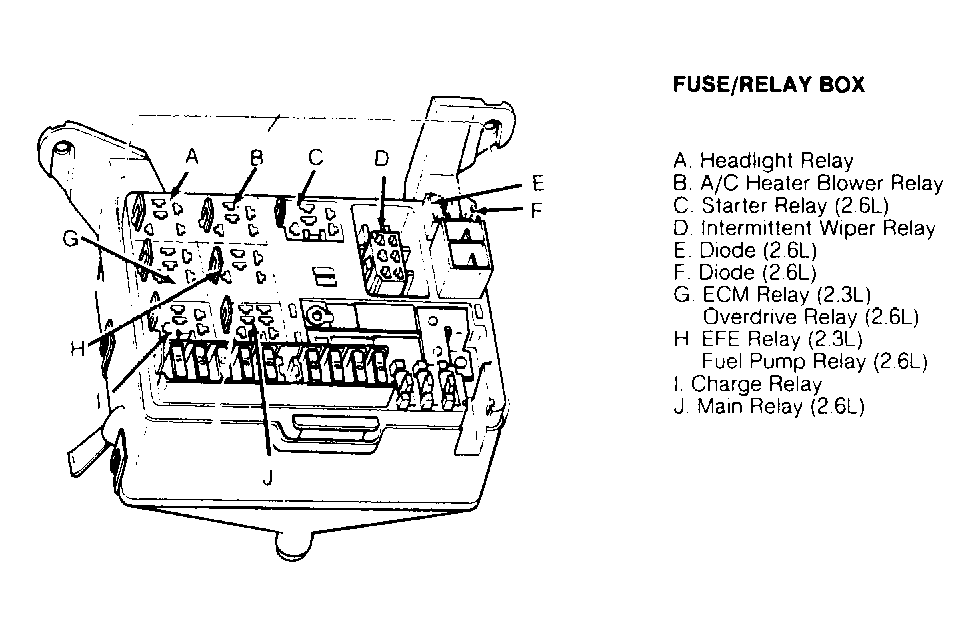

| View of Fuse Relay Block | On right side of engine compartment, near battery. See Figure . | |
| 3.1L Emission Control Component Location | On right side of engine compartment, near battery. See Figure . | |
