Code 22 - Starter Signal

NOTE: Starter relay is located in relay box, in engine compartment.
Fig 1: Code No. 22 Schematic, Starter Signal
G91D16942Courtesy of ISUZU MOTOR CO.

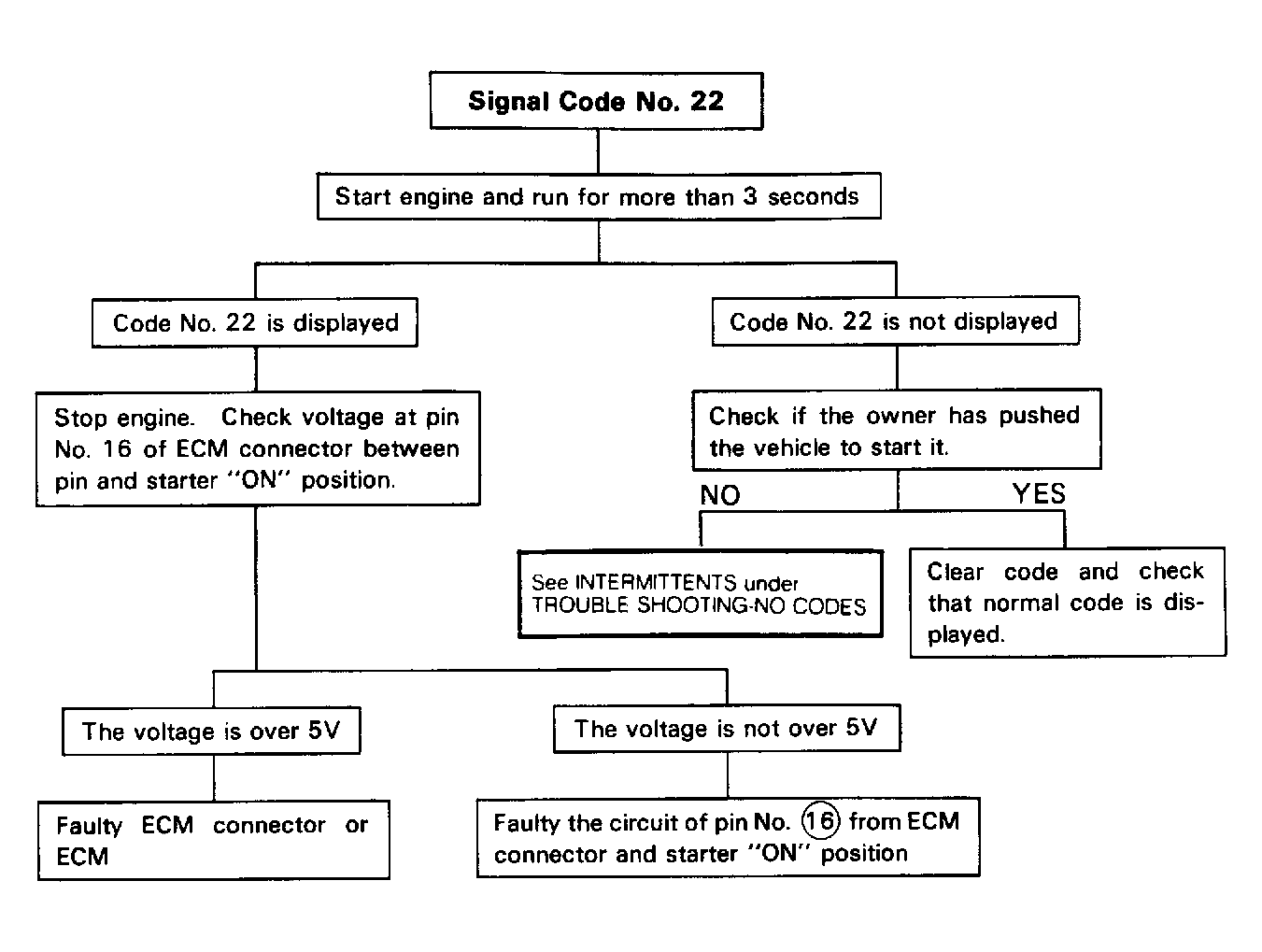

Fig 2: Code No. 22 Flow Chart, Starter Signal
G91E16943Courtesy of ISUZU MOTOR CO.
