Code 43 & 65 - Throttle Valve Switch

THROTTLE VALVE SWITCH RESISTANCE

Accelerator Pedal Position	Continuity I - P (Ohms)	Continuity P - F (Ohms)
Not Depressed	0	Infinity
Slightly Depressed	Infinity	Infinity
Fully Depressed	Infinity	0

Fig 1: Code No. 43, 65 Schematic, Throttle Valve Switch

Courtesy of ISUZU MOTOR CO.

Fig 2: Code No. 43, 65 Connector, Throttle Valve Switch

Courtesy of ISUZU MOTOR CO.

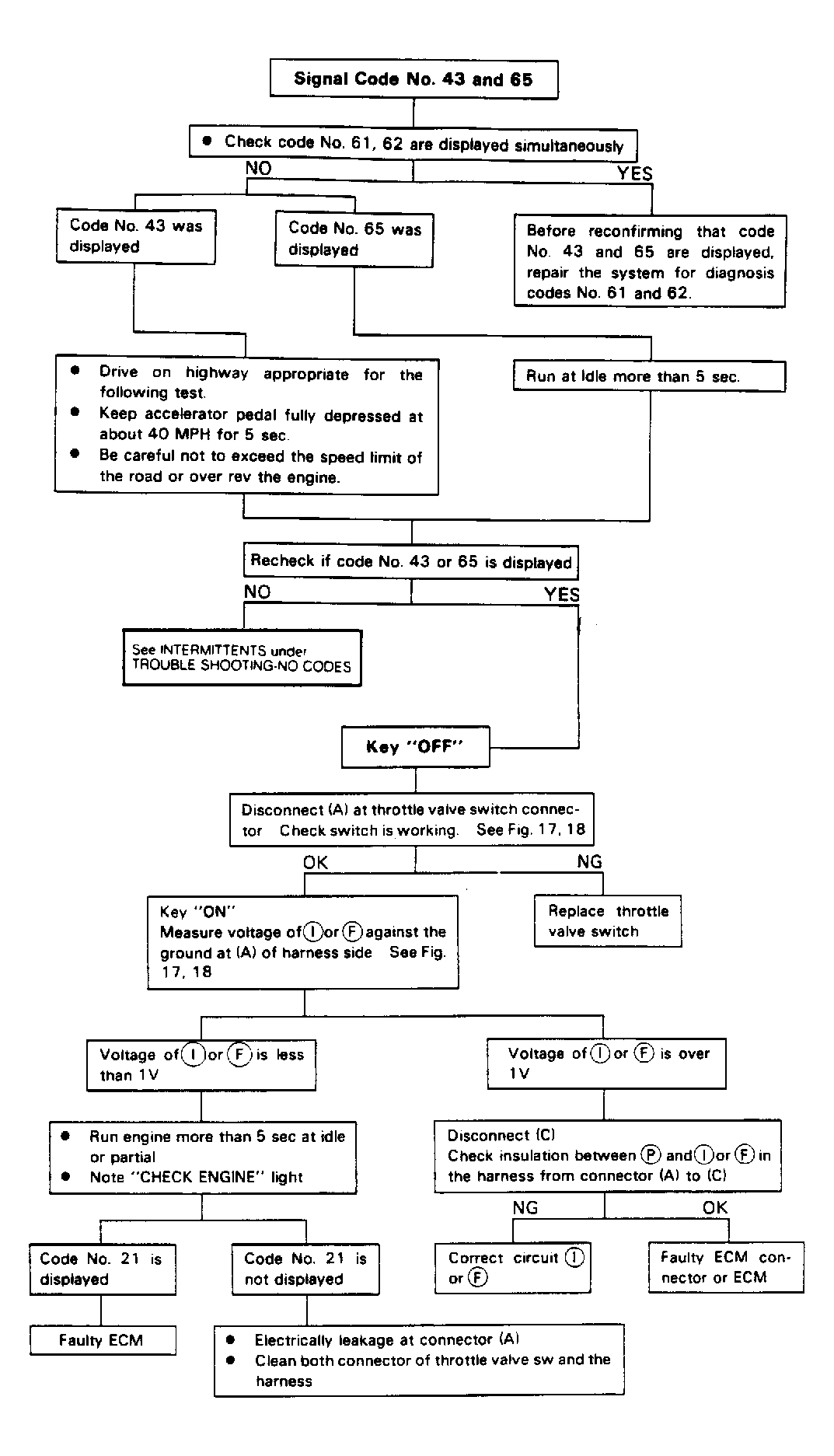

Fig 3: Code No. 43, 65 Flow Chart, Throttle Valve Switch

Courtesy of ISUZU MOTOR CO.
