Service Indicator & Warning Lights: Notes

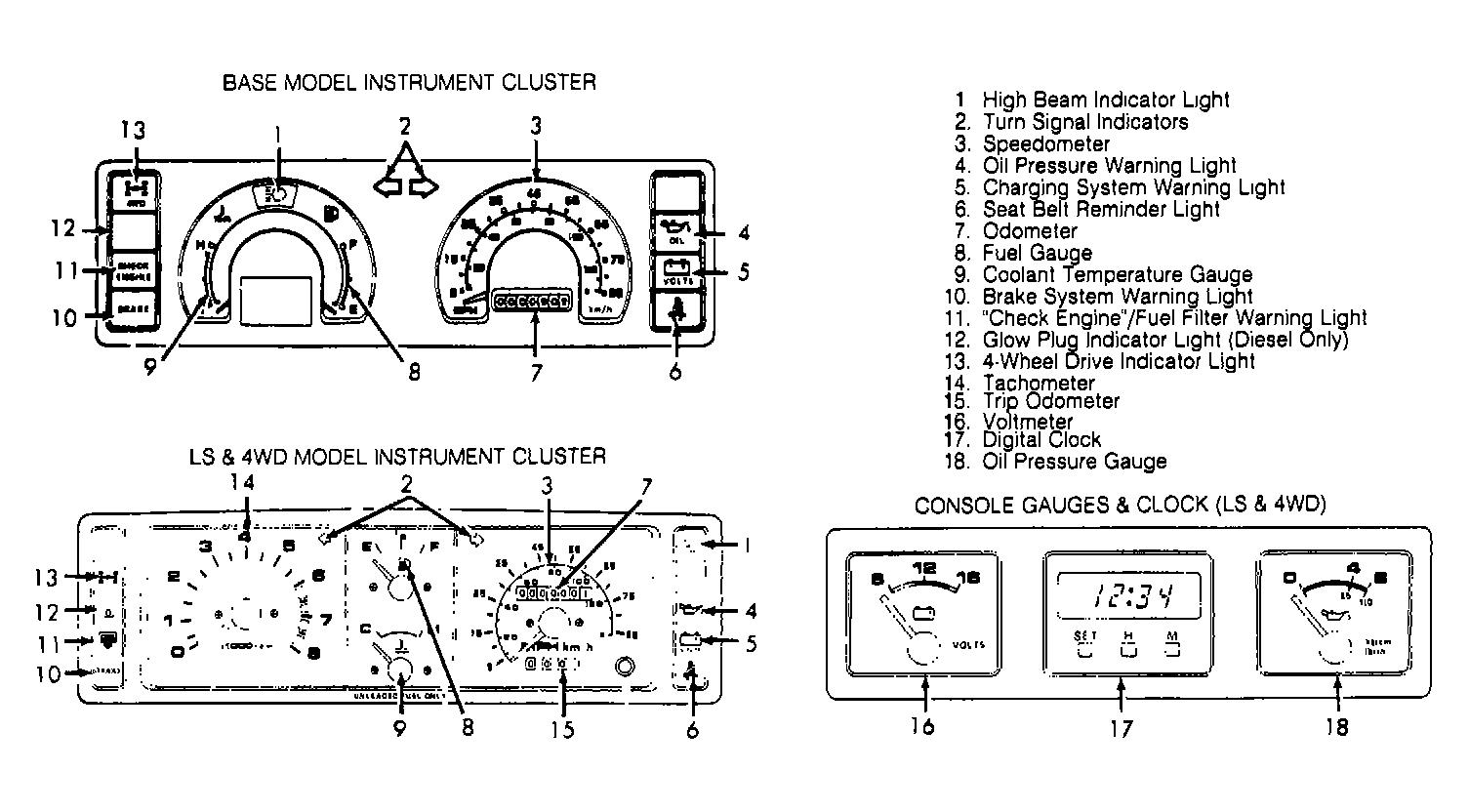

Fig 1: Dash Gauges & Warning Lights (1983-87)
G90A04871Courtesy of ISUZU MOTOR CO.

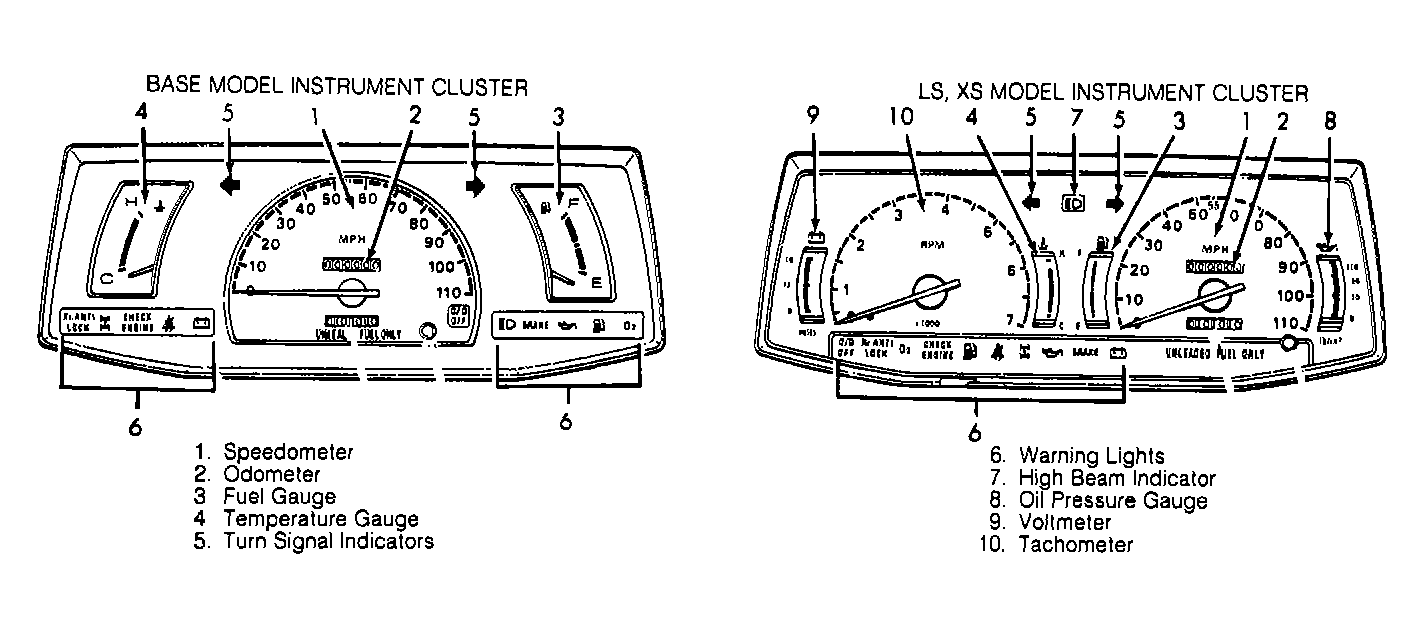

Fig 2: Dash Gauges & Warning Lights (1988-92)
G90C04872Courtesy of ISUZU MOTOR CO.
