Brake Switch

Disconnect brake switch connector. Check continuity between switch terminals. See Fig 1. If continuity is not as specified, replace switch.

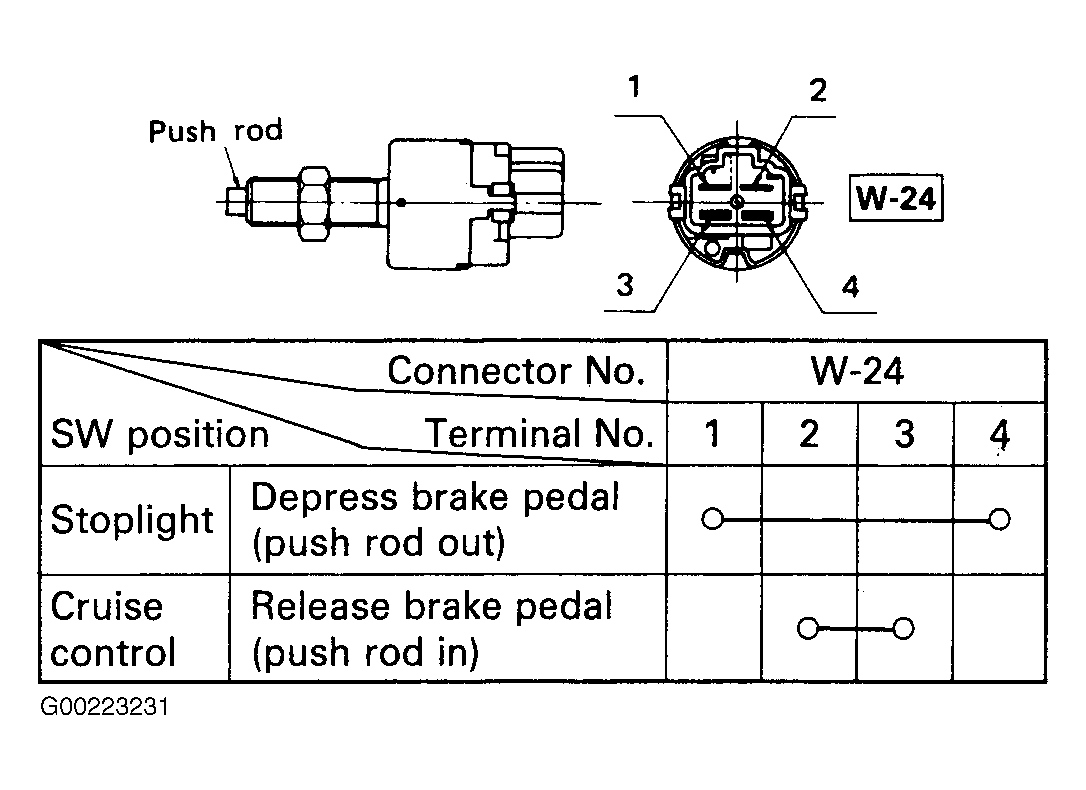

Fig 1: Testing Brake Switch

Courtesy of INGERSOLL-RAND CO.
