Pin-Out Chart
Pin-Out Chart

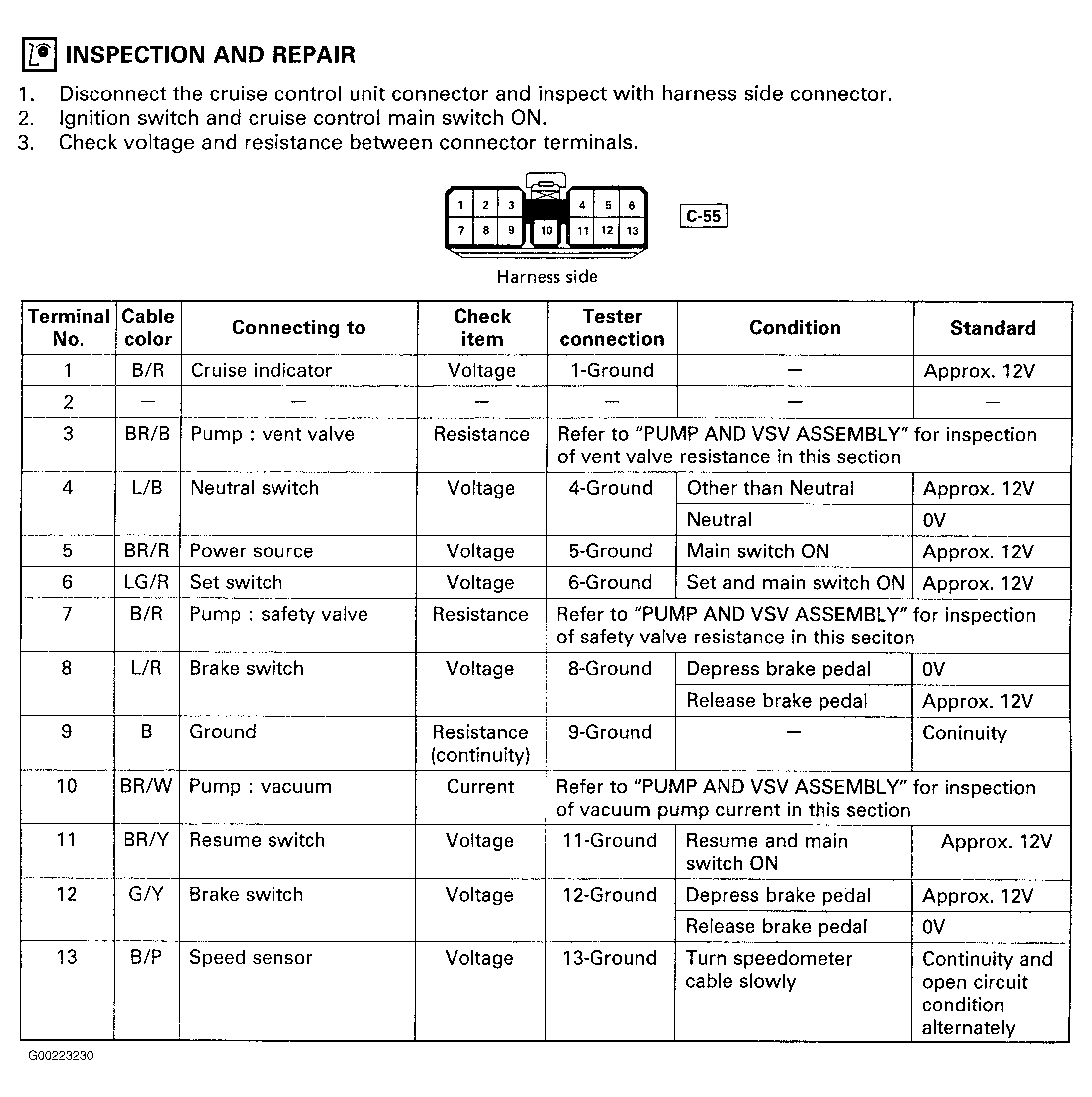

Fig 1: Cruise Control Unit Pin-Out Chart
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
