Engine Controls - Tests W/Codes - CARBURETED
›
Code Charts
›
Chart No. 6 - Will Not Flash Code 12
Chart No. 6 - Will Not Flash Code 12

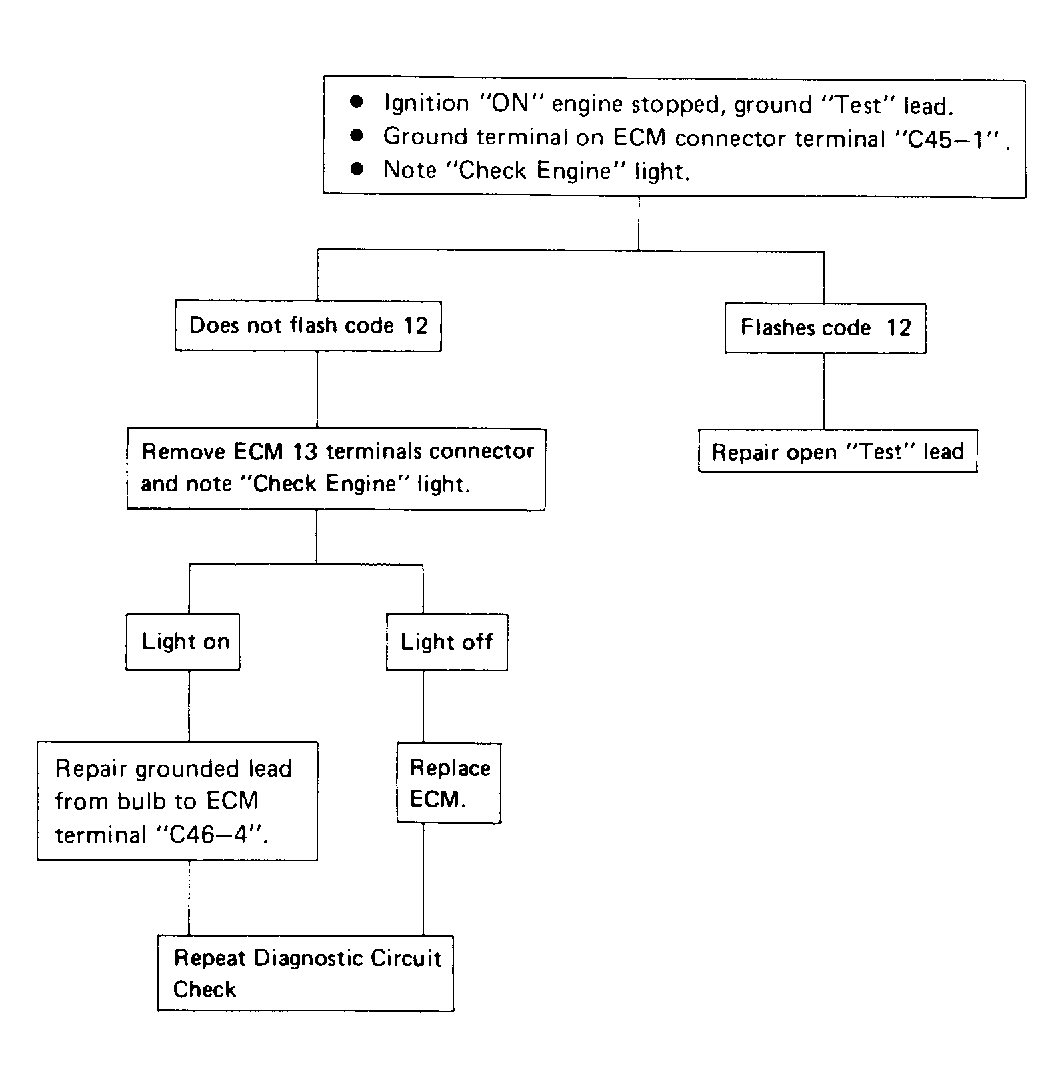

Fig 1: Chart 6 - Diagnostic Flowchart
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
