Headlight Switch
- Disconnect negative battery cable. Remove instrument cluster panel and disconnect all connectors. Pull headlight switch knob from switch. Release lock tabs in 2 places and remove switch bezel.

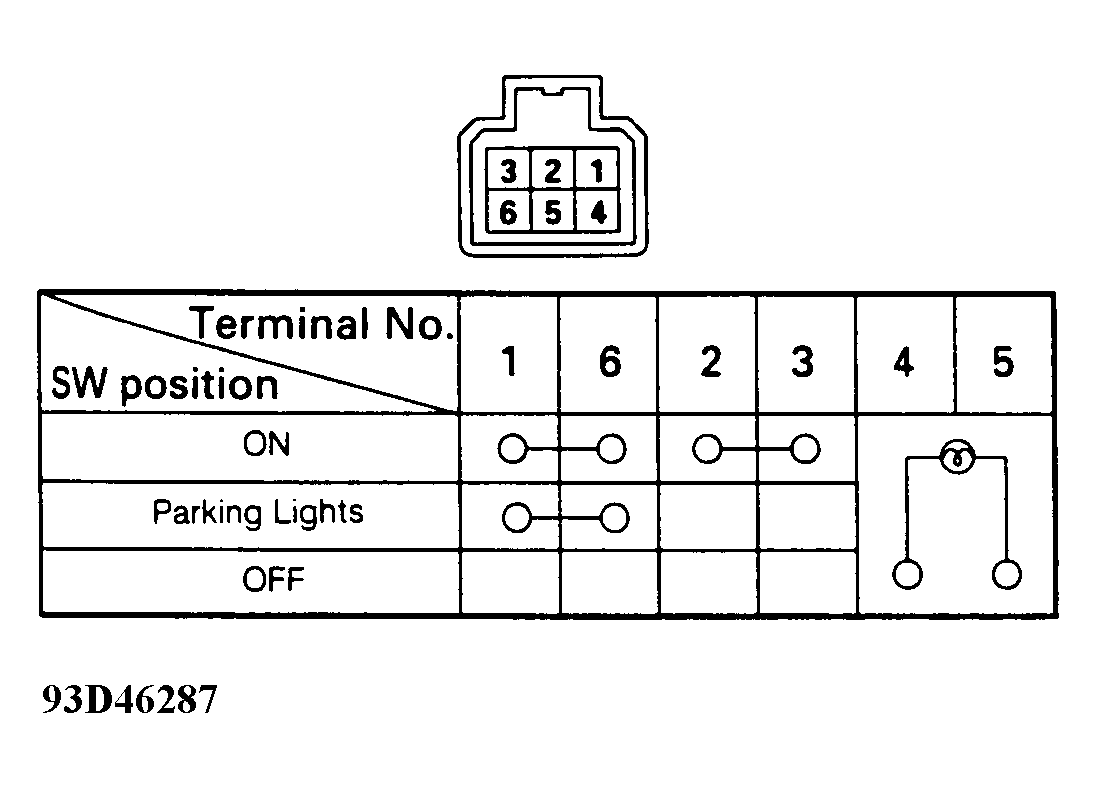

- Remove 2 switch screws, release 2 lock tabs from back side and remove headlight switch from rear of instrument cluster panel. Check for continuity between specified switch terminals. SeeFig 1 .
