Engine Controls - System/Component Tests - EFI
›
Air Induction Systems
›
Induction Air Control System
›
Trooper DOHC
Trooper DOHC

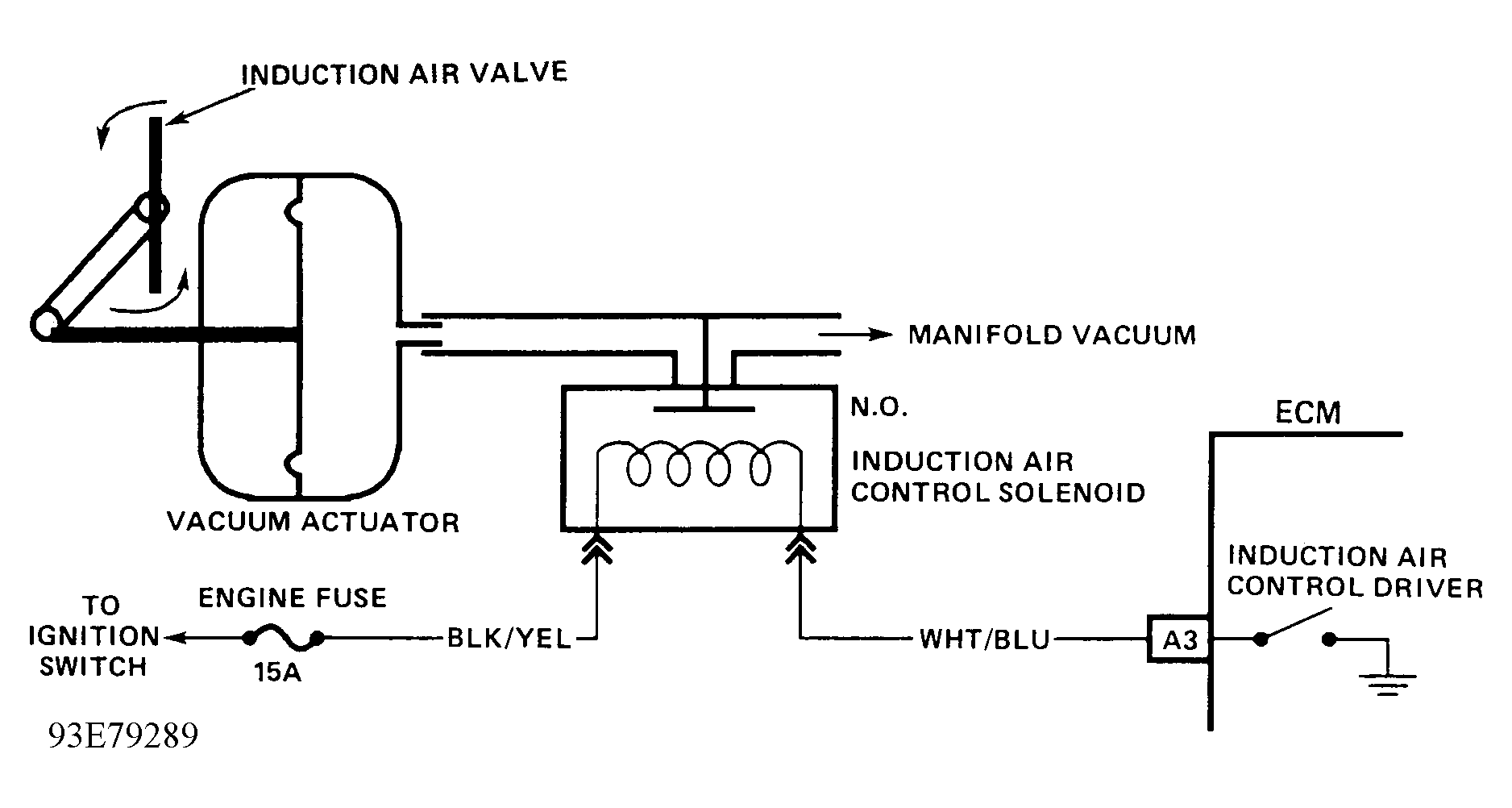

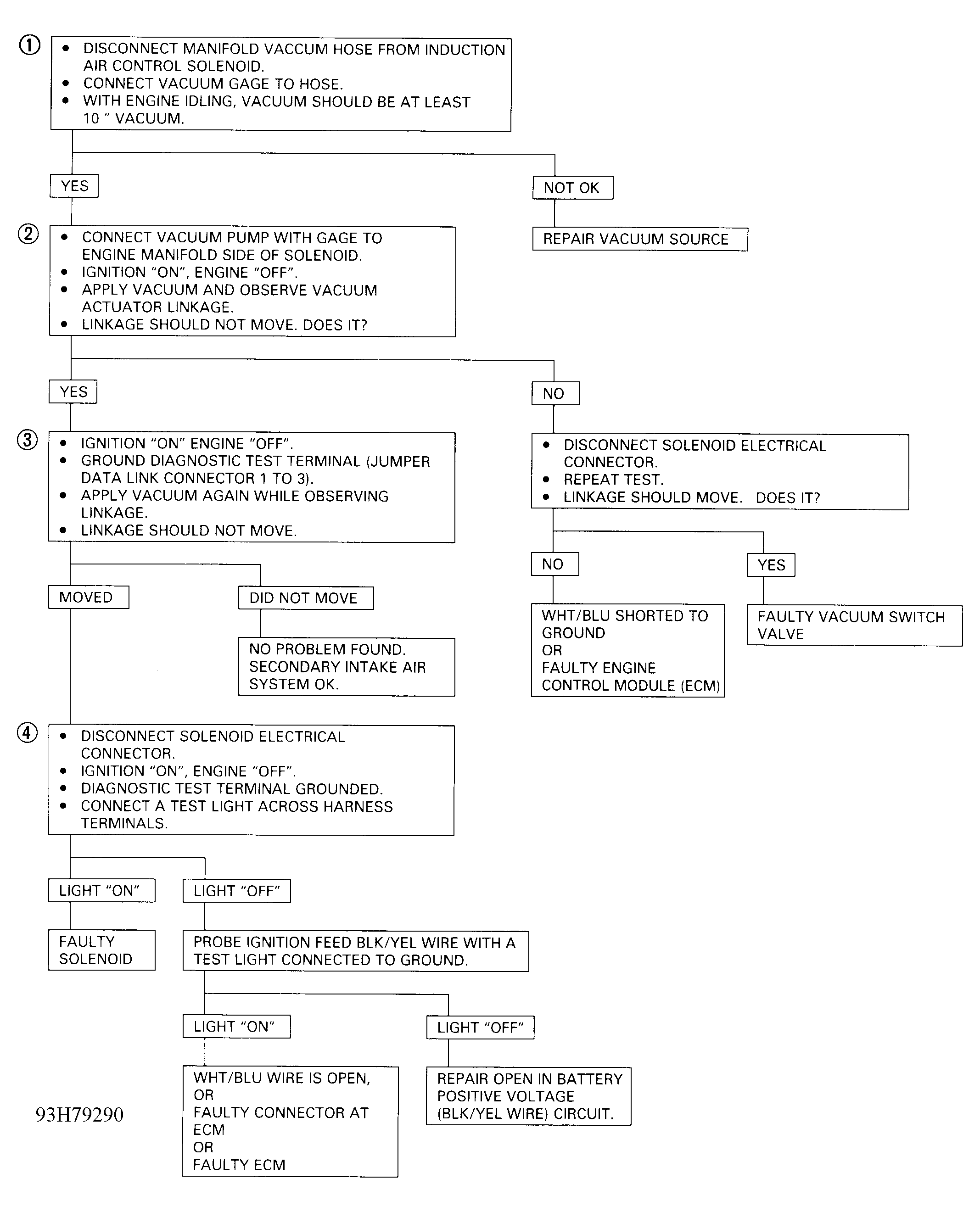

To check induction air control system, proceed to CHART C-2D. See
Figure
and
Figure
.
