Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Fuse Block | On left side of dash, behind access panel. See Figure . |

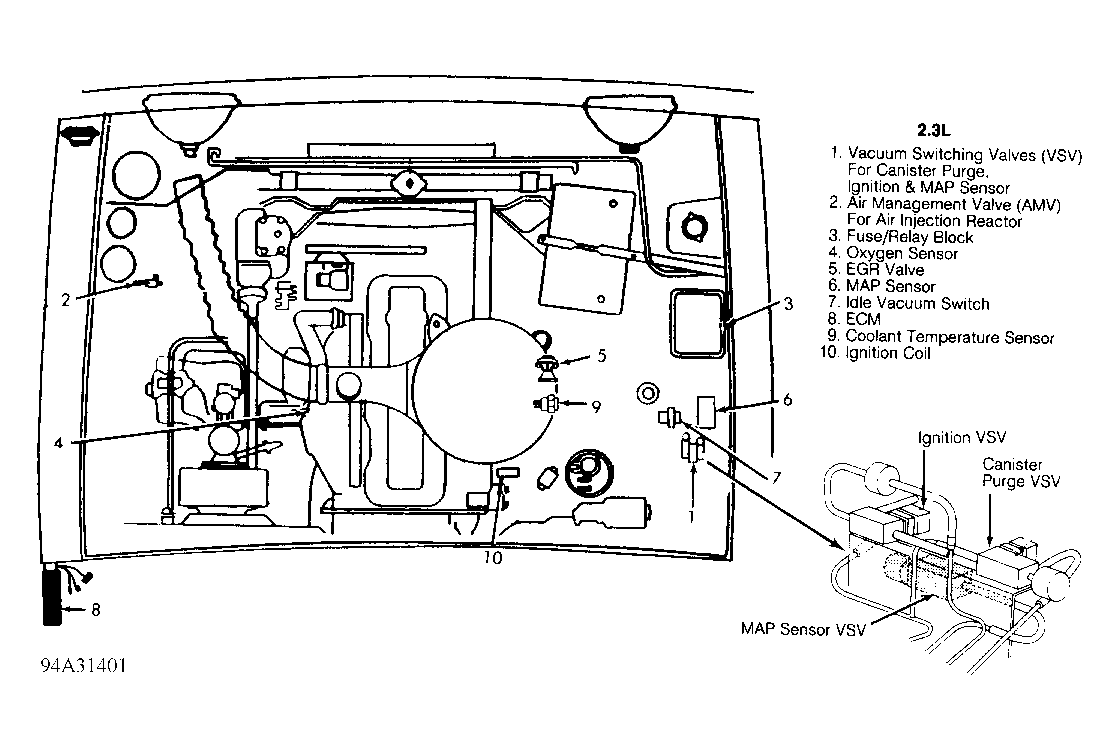

| Fuse/Relay Block Location (2.3L) | On right side of engine compartment, near battery. See Figure . |

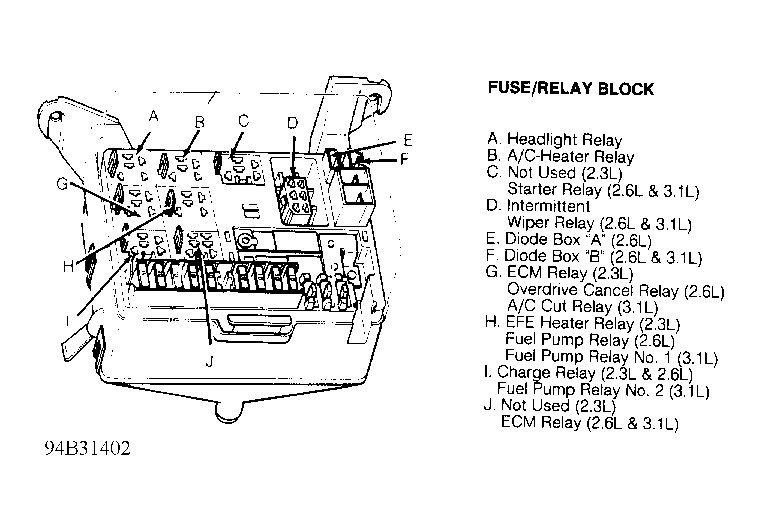

| Fuse/Relay Block | On right side of engine compartment, near battery. See Figure . |

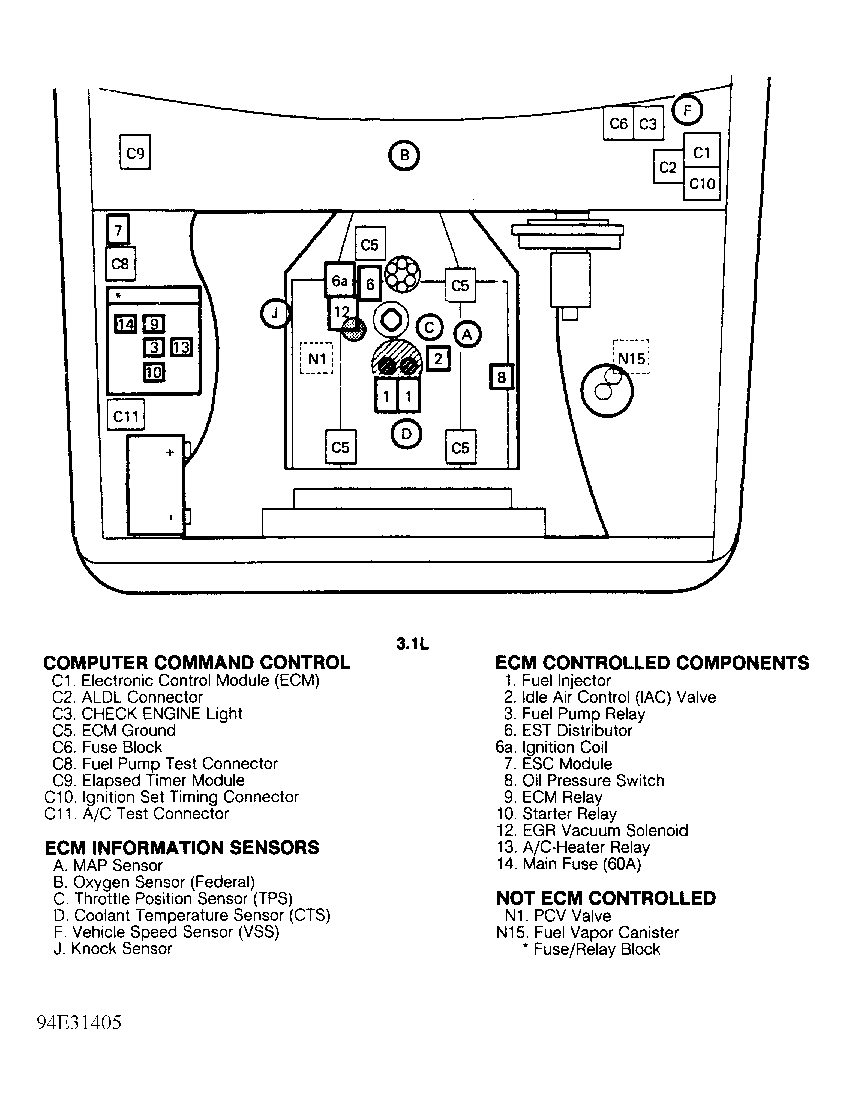

| Fuse/Relay Block Location (3.1L) | On right side of engine compartment, near battery. See Figure . |
