Code 61 & 62 - Airflow Sensor Signal
Code 61 & 62 - Airflow Sensor Signal
NOTE:
See appropriate wiring diagram in WIRING DIAGRAMS article for terminal and connector identification.

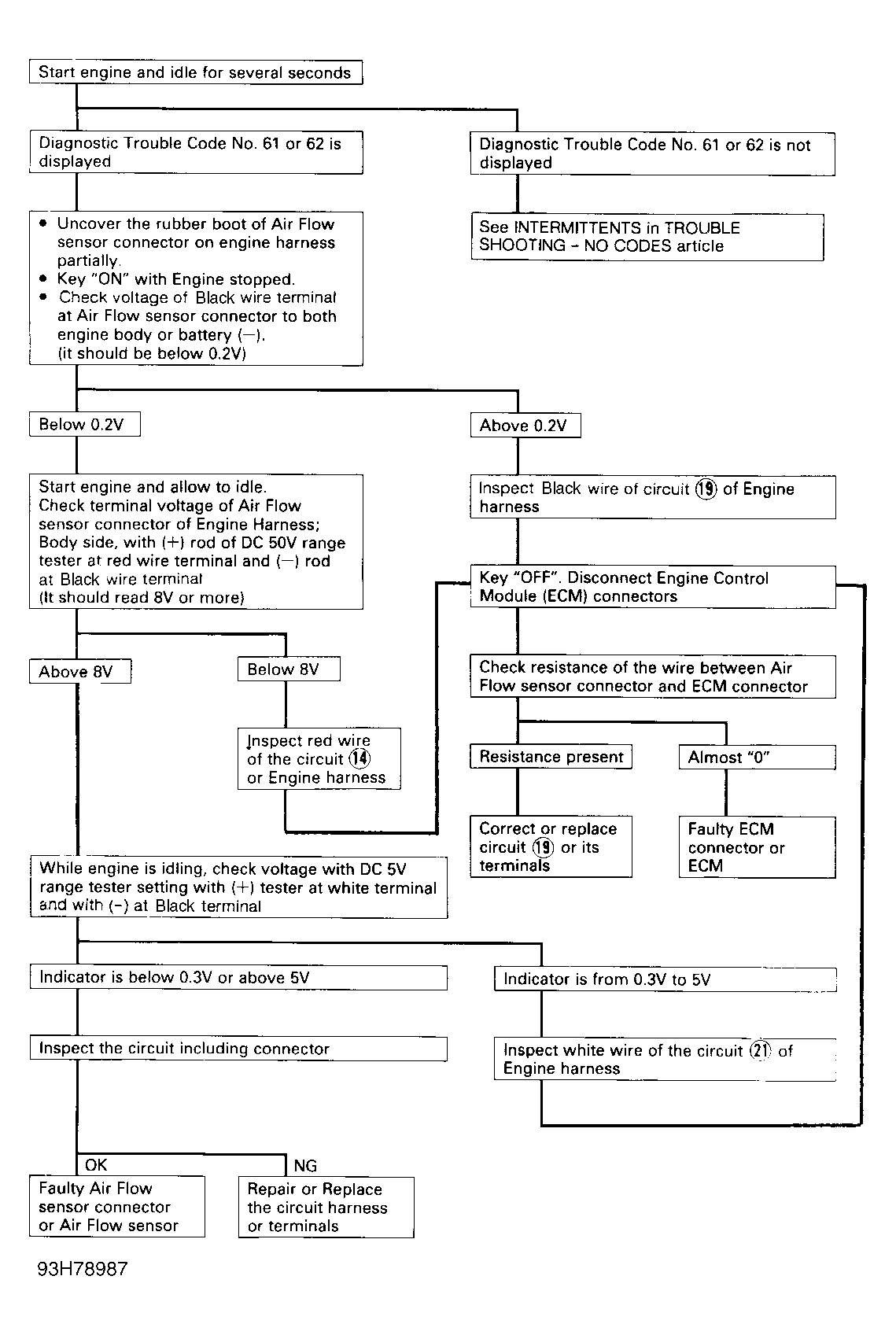

Fig 1: Code 61, 62 - Diagnostic Flowchart (1 Of 2)
Courtesy of ISUZU MOTOR CO.
Fig 2: Code 61, 62 - Diagnostic Flowchart (2 Of 2)
Courtesy of ISUZU MOTOR CO.
