Code 10 - Low Speed Sensor Resistance

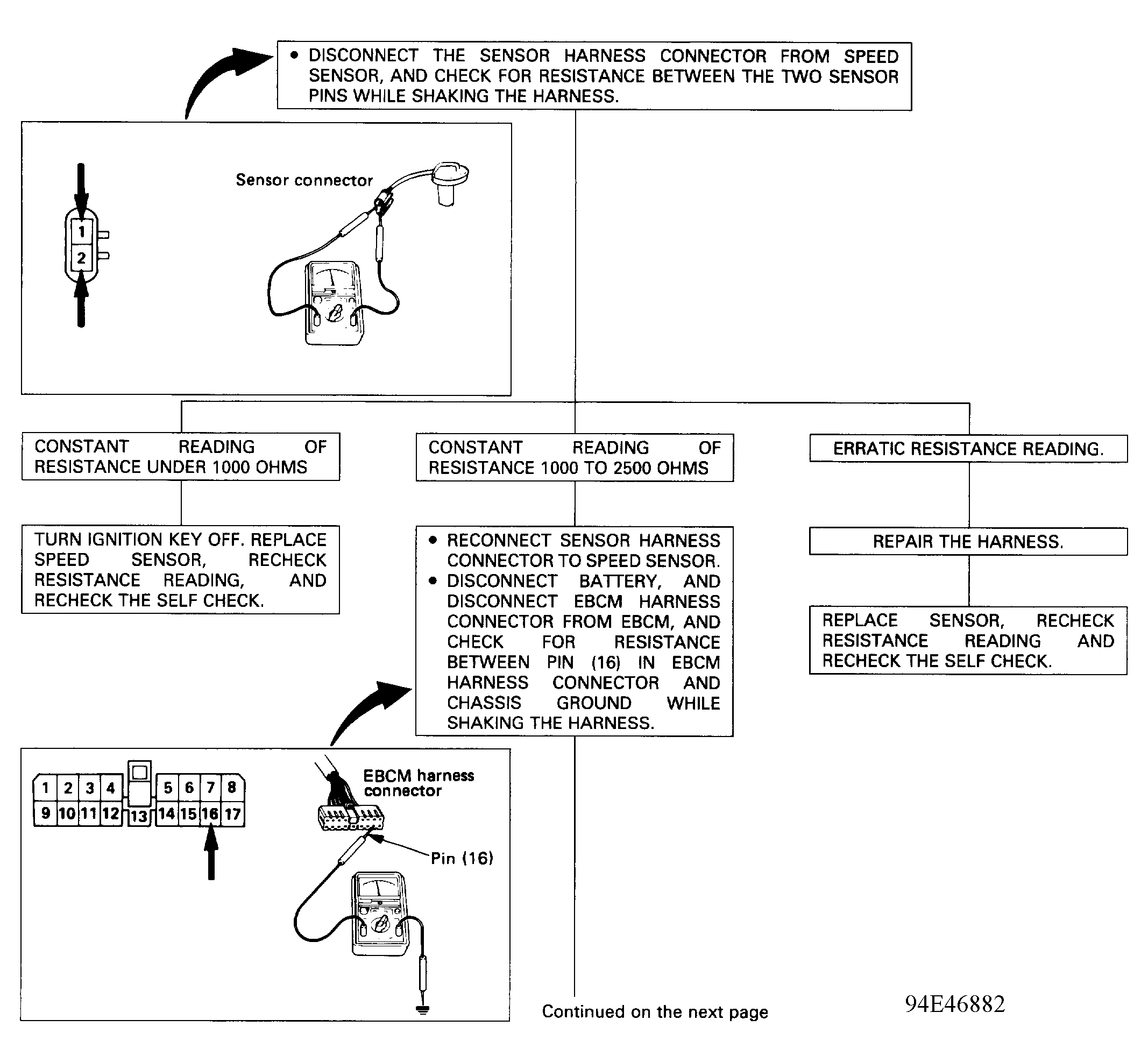

Fig 1: Code 10 - Low Speed Sensor Resistance (1 Of 3)

Courtesy of ISUZU MOTOR CO.

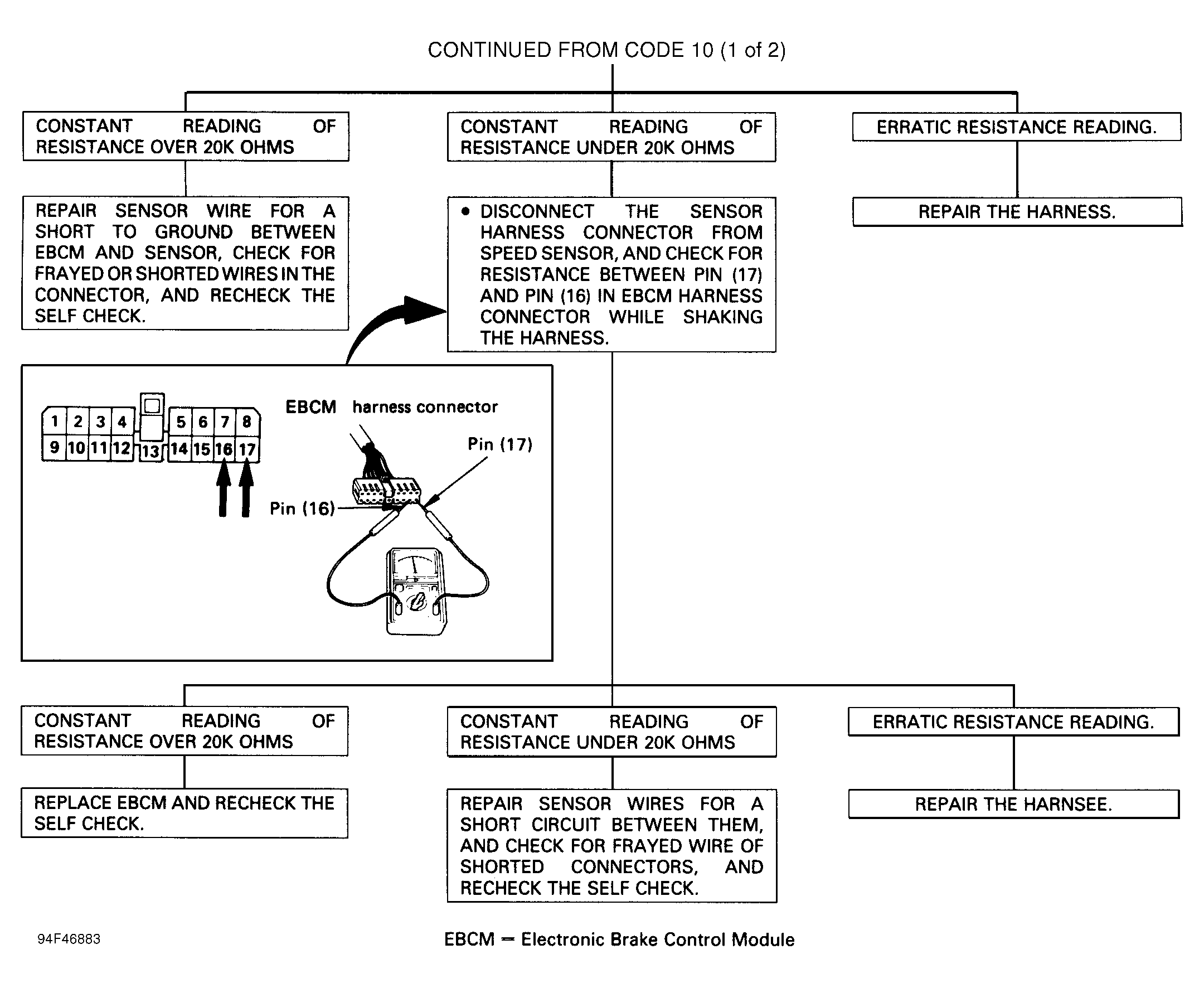

Fig 2: Code 10 - Low Speed Sensor Resistance (2 Of 3)

Courtesy of ISUZU MOTOR CO.

Fig 3: Code 10 - Low Speed Sensor Resistance (3 Of 3)

Courtesy of ISUZU MOTOR CO.
