Code 9 - High Speed Sensor Resistance

Fig 1: Code 9 - High Speed Sensor Resistance (1 Of 3)

Courtesy of ISUZU MOTOR CO.

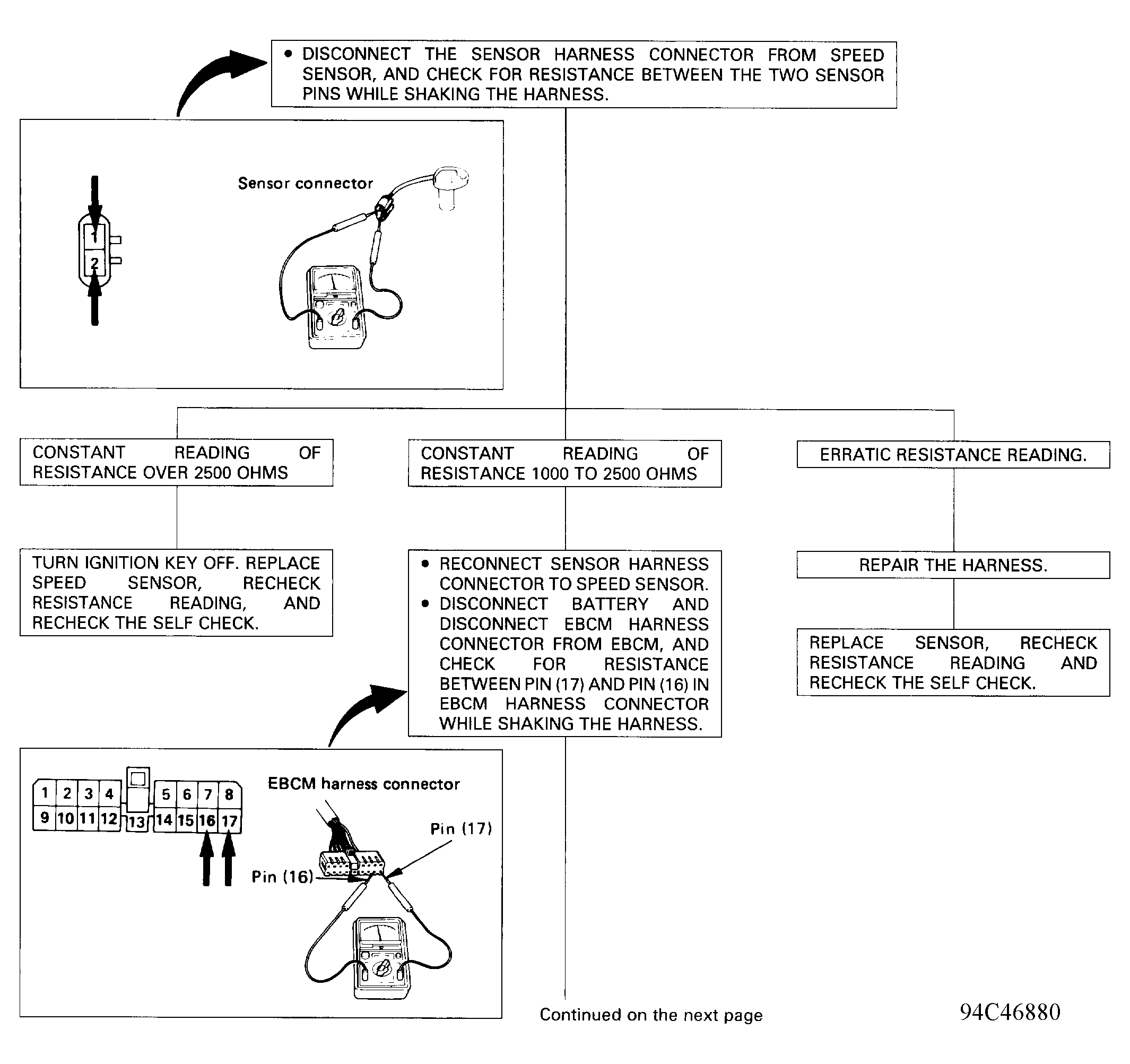

Fig 2: Code 9 - High Speed Sensor Resistance (2 Of 3)

Courtesy of ISUZU MOTOR CO.

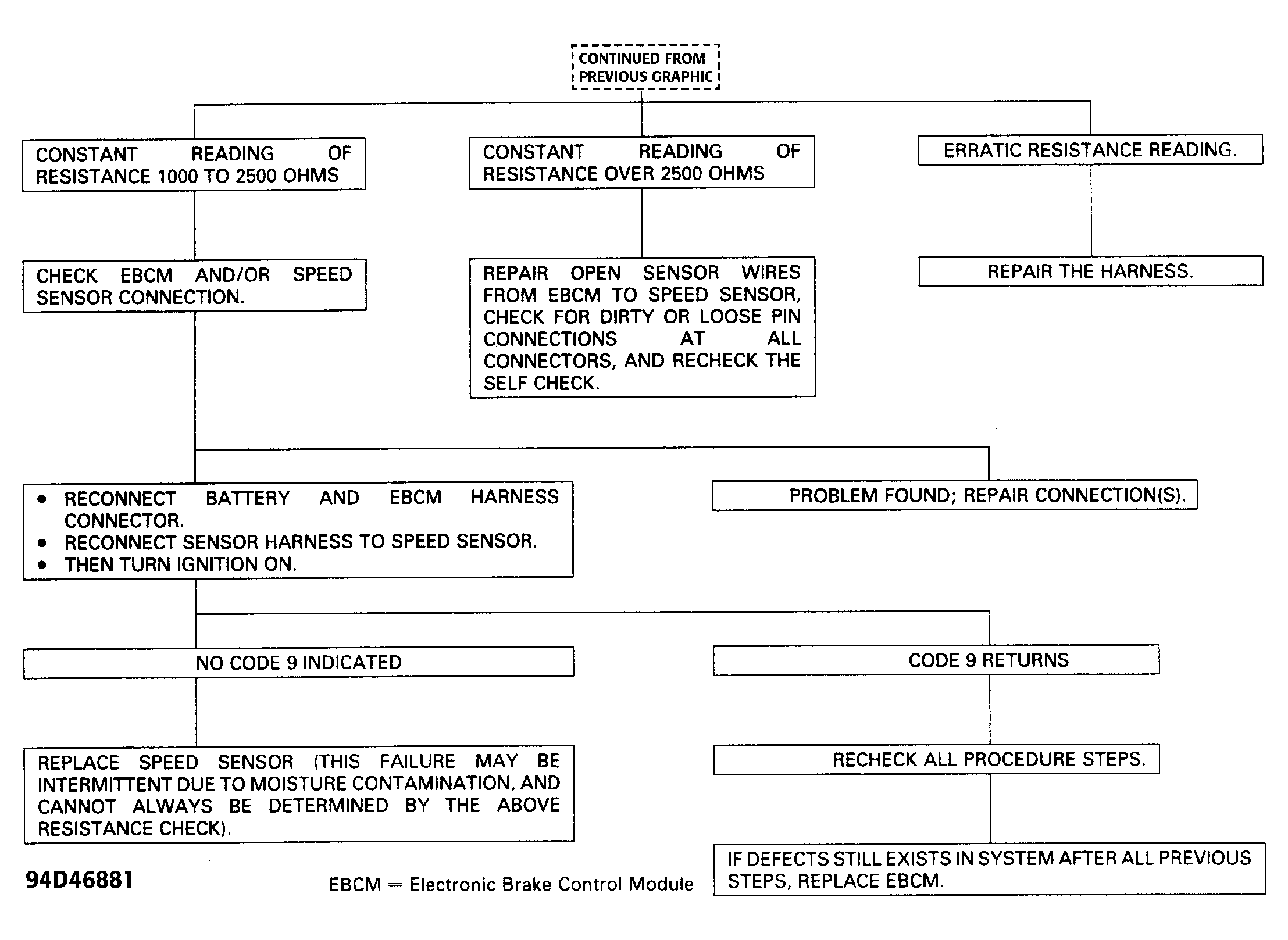

Fig 3: Code 9 - High Speed Sensor Resistance (3 Of 3)

Courtesy of ISUZU MOTOR CO.
