Control Switches

Disconnect cruise control switch harness connector. Test for continuity at appropriate connector terminals. SeeFig 1 .

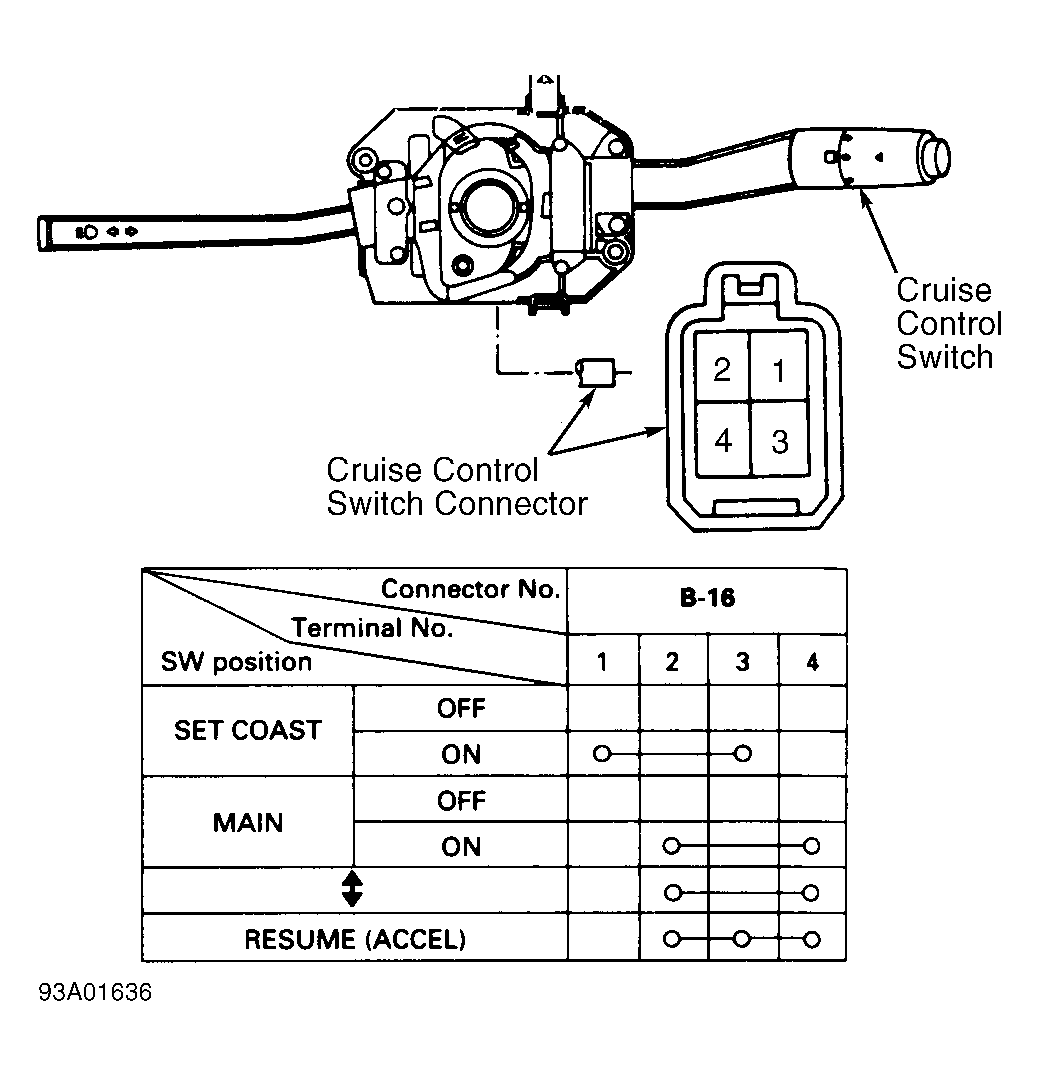

Fig 1: Testing Cruise Control Main Switch (Rodeo)

Courtesy of ISUZU MOTOR CO.
