Code 11 - BRAKELIGHT Switch Circuit

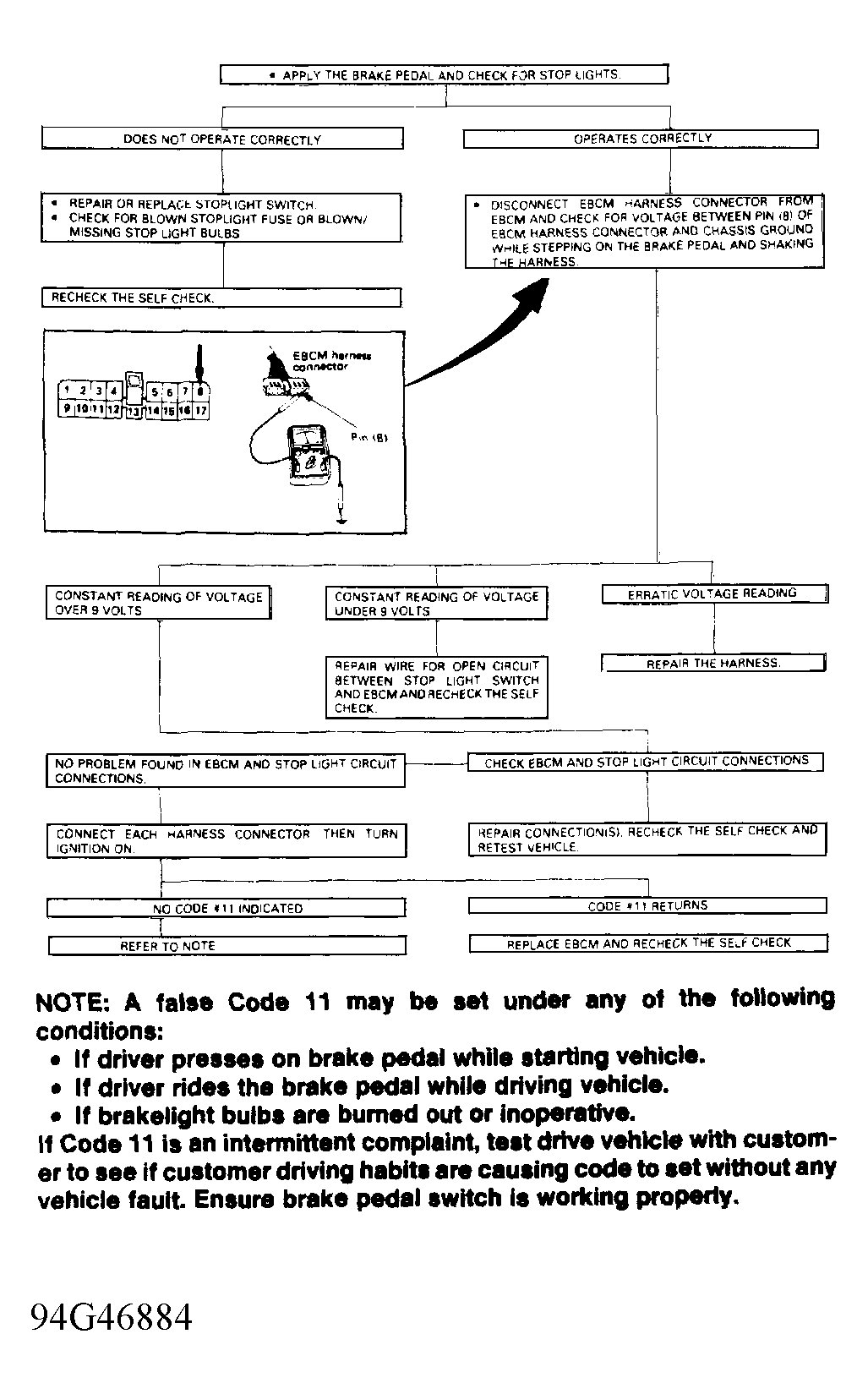

Fig 1: Code 11 - Defective Brakelight Switch Circuit (1 Of 2)

Courtesy of ISUZU MOTOR CO.

Fig 2: Code 11 - Defective Brakelight Switch Circuit (2 Of 2)

Courtesy of ISUZU MOTOR CO.
