Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |
| Fuse Block |
On left side of dash, behind access panel. See Figure
. |
| Fuse/Relay Block |

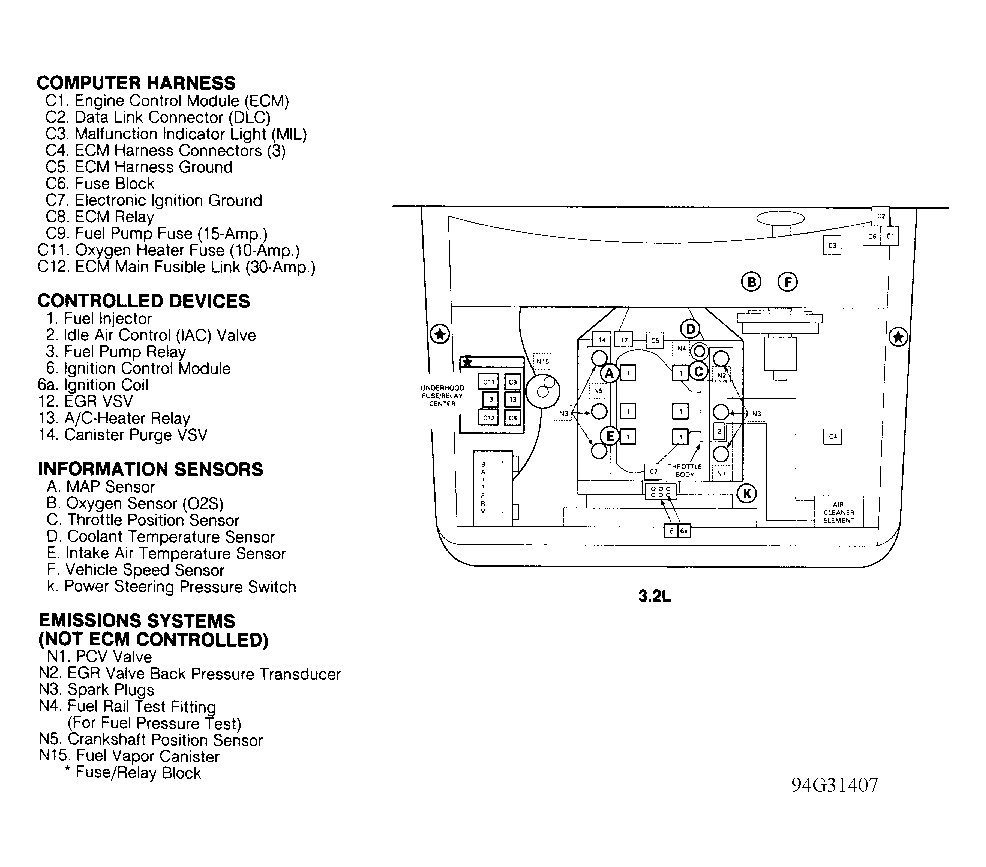

On right side of engine compartment, on inner fender panel. See Figure
. |
| Power Window Circuit Breaker (3.2L) |
In passenger compartment fuse block. |
