Dash Fuse Panel Identification
›
Notes
Dash Fuse Panel Identification: Notes

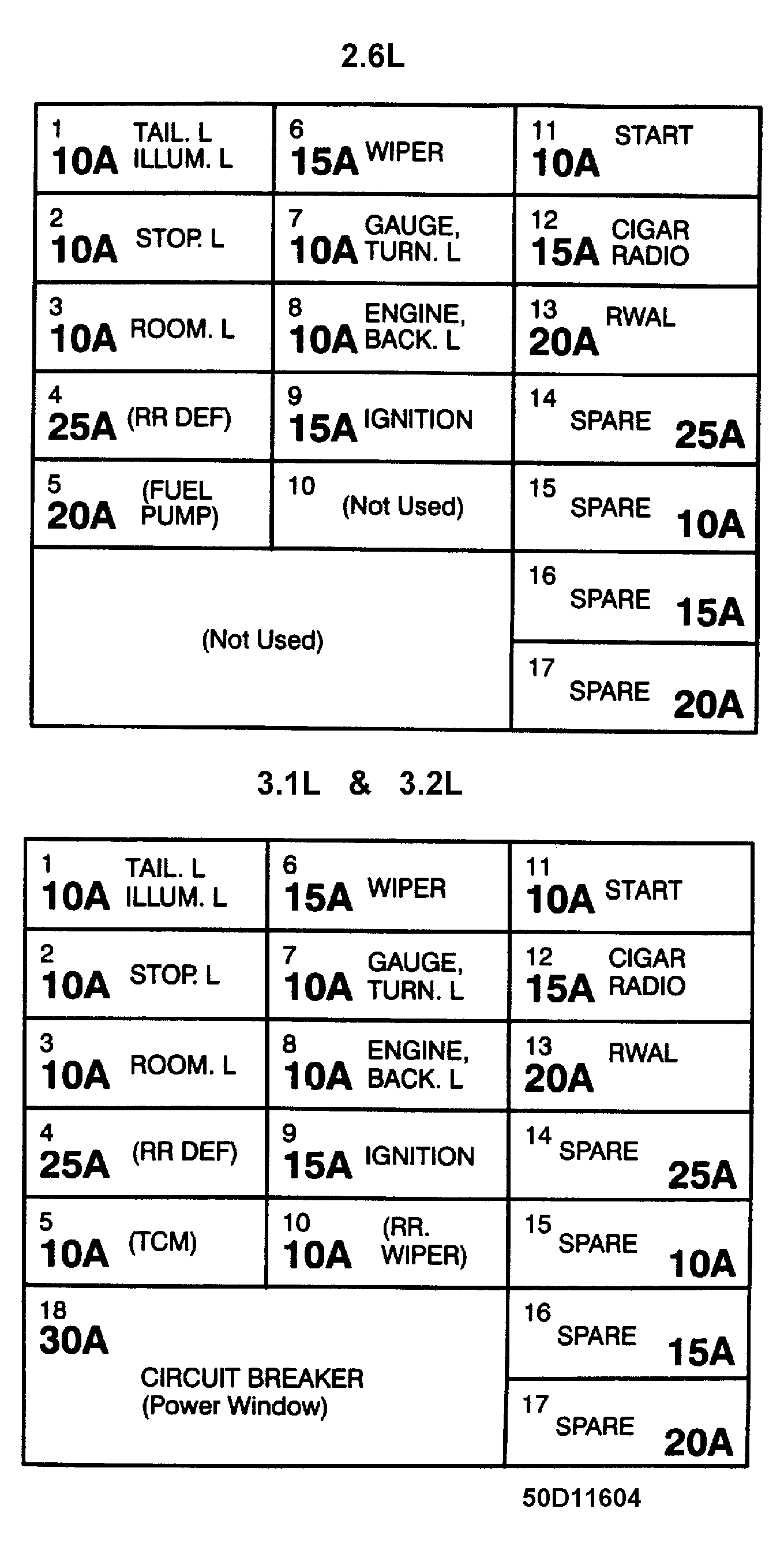

Fig 1: Dash Fuse Panel Identification
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
