Firing Order & Timing Marks

Fig 1: Firing Order

G92I25054

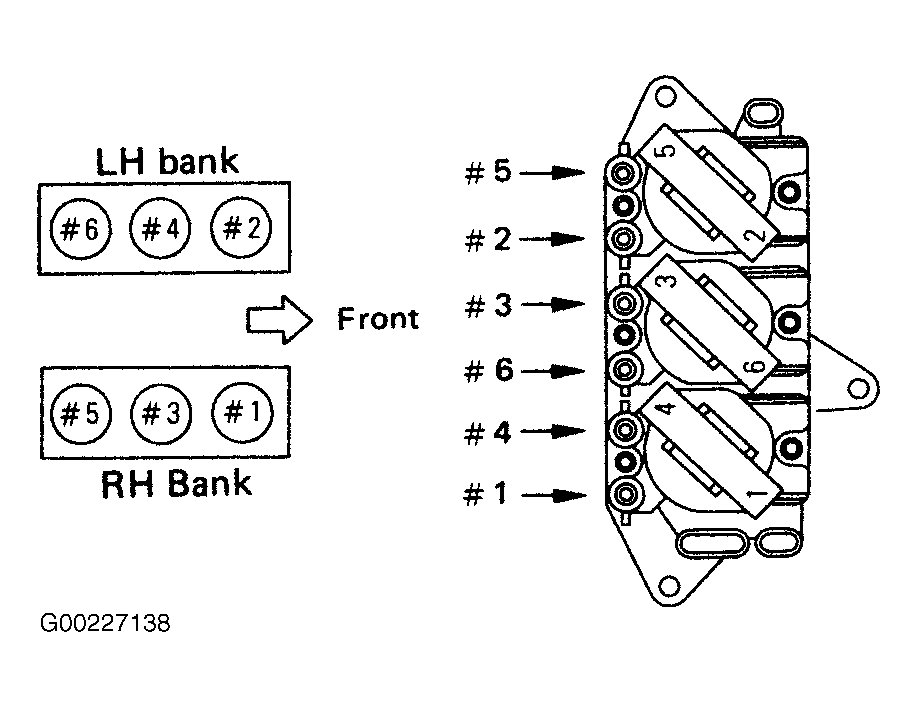

Fig 2: High Tension Wire Routing

G00227138

IGNITION TIMING SPECIFICATIONS (Degrees BTDC @ RPM)

Application	Base Timing
3.2L	5 @ 750
