DTC P0300 - Engine Misfire Detected: Notes

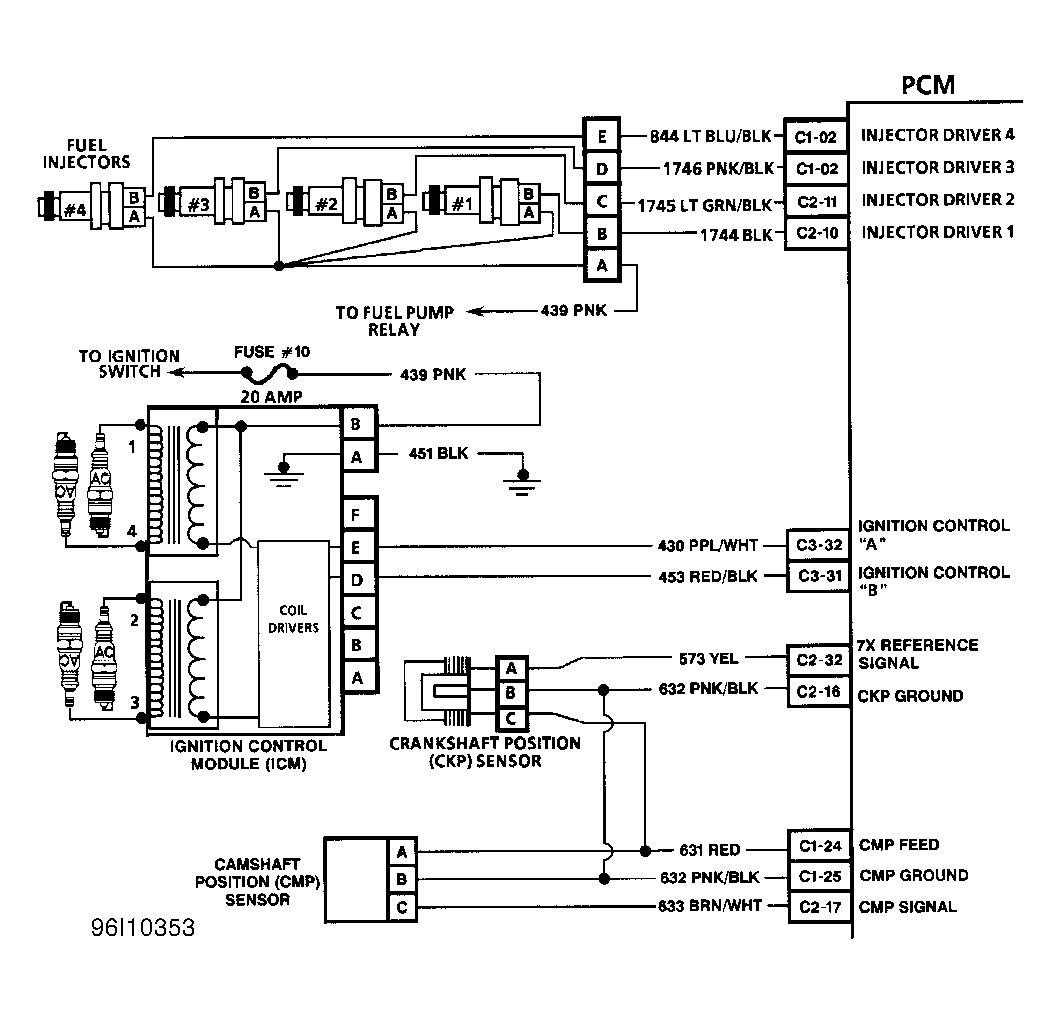

Fig 1: PCM, CKP Sensor & CMP Sensor Circuit (Hombre)
G96I10353Courtesy of ISUZU MOTOR CO.
