DTC P0530 - A/C Refrigerant Pressure Sensor Circuit
›
Notes
DTC P0530 - A/C Refrigerant Pressure Sensor Circuit: Notes

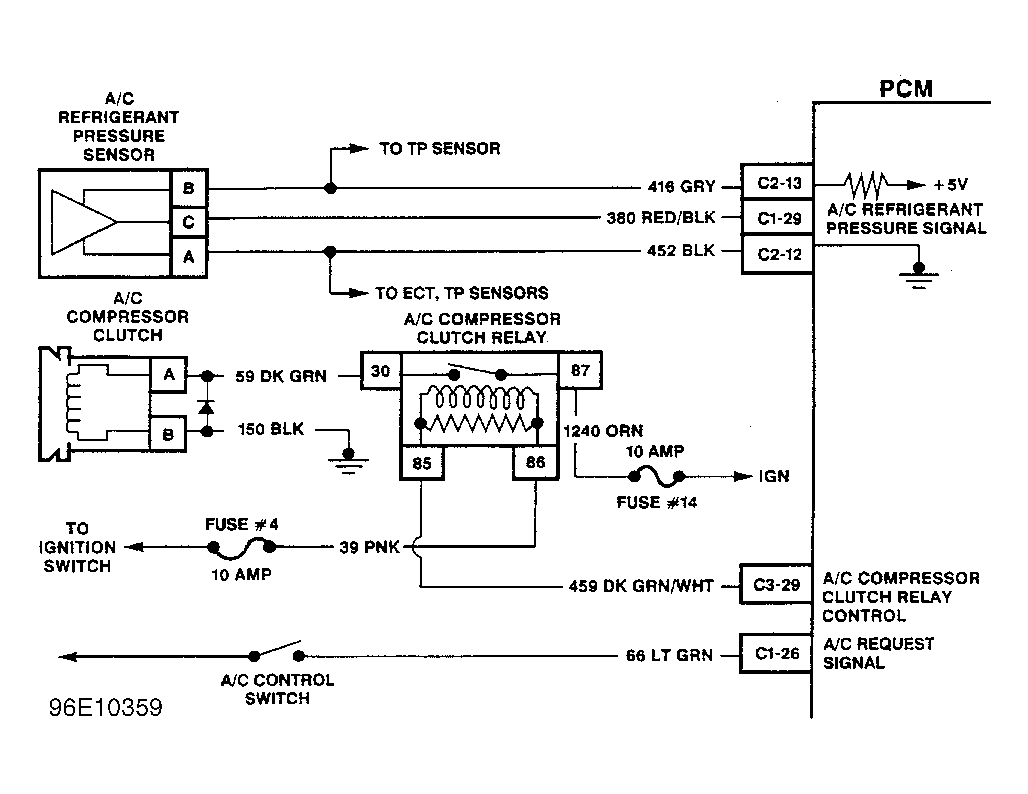

Fig 1: A/C Refrigerant Pressure Sensor Circuit (Hombre)
Courtesy of ISUZU MOTOR CO.
