Under-Dash Fuse/Relay Box

For under-dash fuse/relay box identification, refer to illustration. See Fig 2 .

Fig 1: Locating Under-Dash Fuse/Relay Box

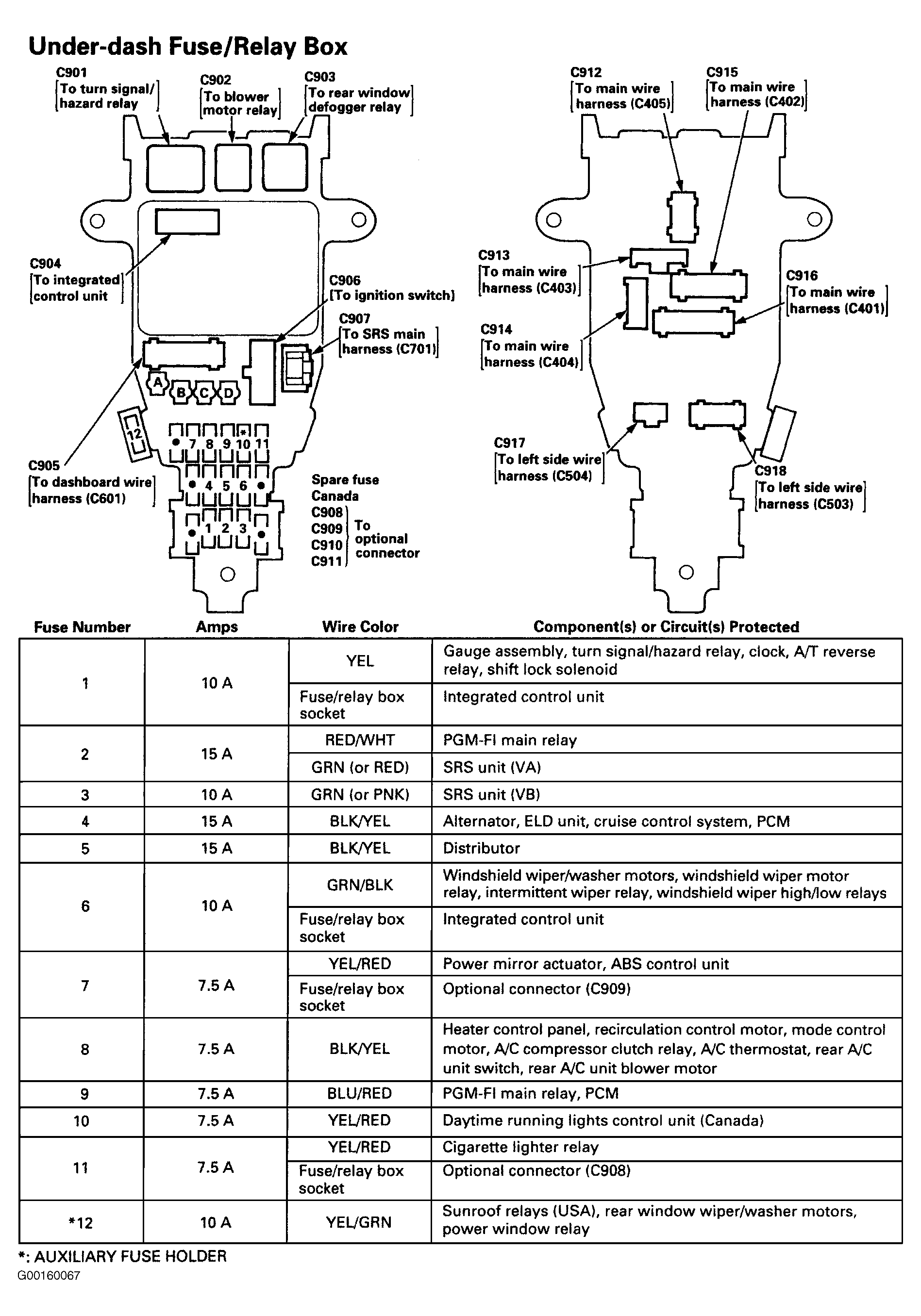

Fig 2: Identifying Under-Dash Fuse/Relay BoxComponents

Courtesy of ISUZU MOTOR CO.
