Under-Hood Abs Fuse/Relay Box

For under-hood ABS fuse/relay box identification, refer to illustration. See Fig 1 and Fig 2 .

Fig 1: Locating ABS & Under-Hood Fuse/Relay Box

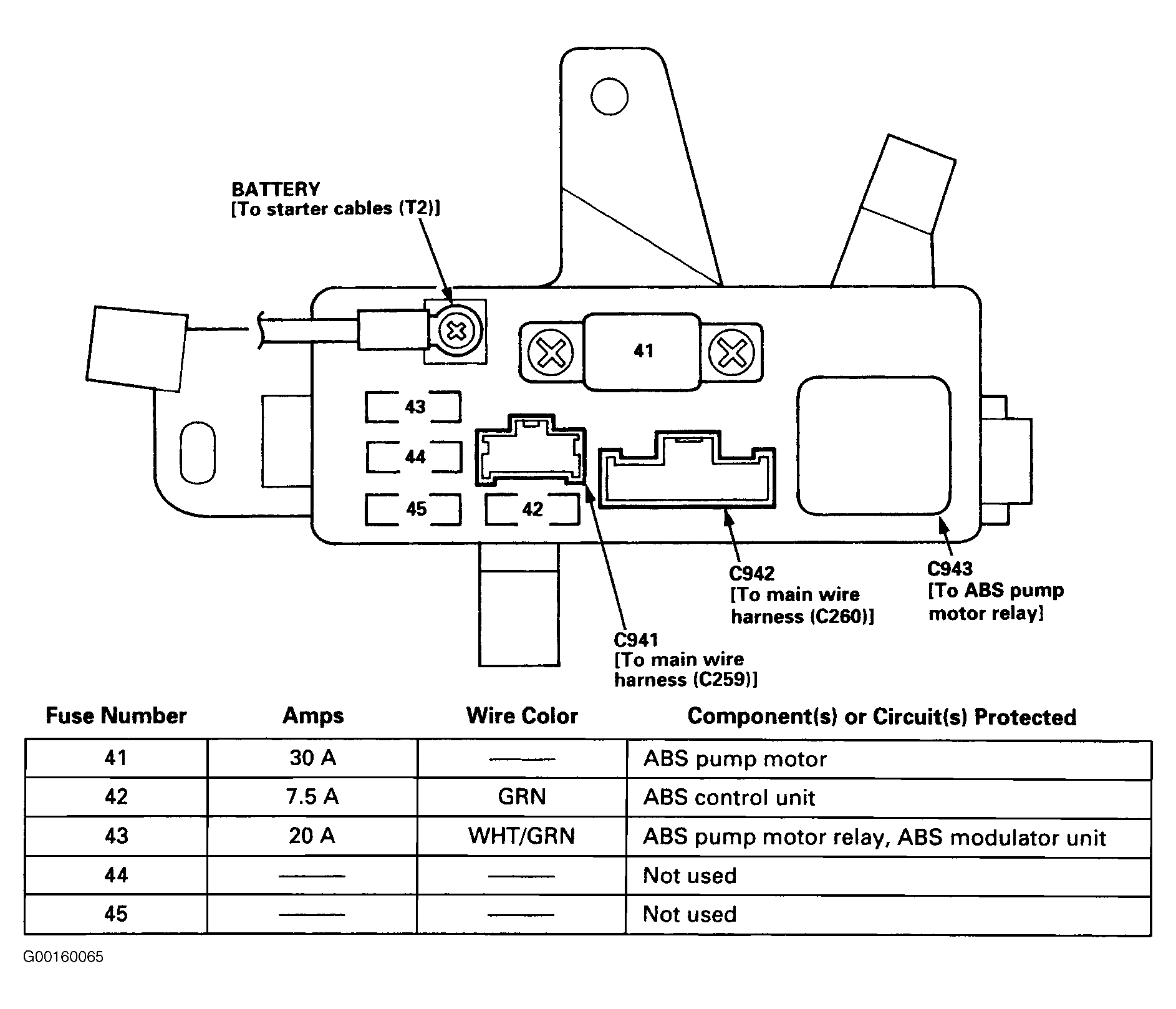

Fig 2: Identifying Under-Hood ABS Fuse/Relay Box

Courtesy of ISUZU MOTOR CO.
