Engine Controls - System/Component Tests - 3.2L V6
›
Component Locations
Component Locations

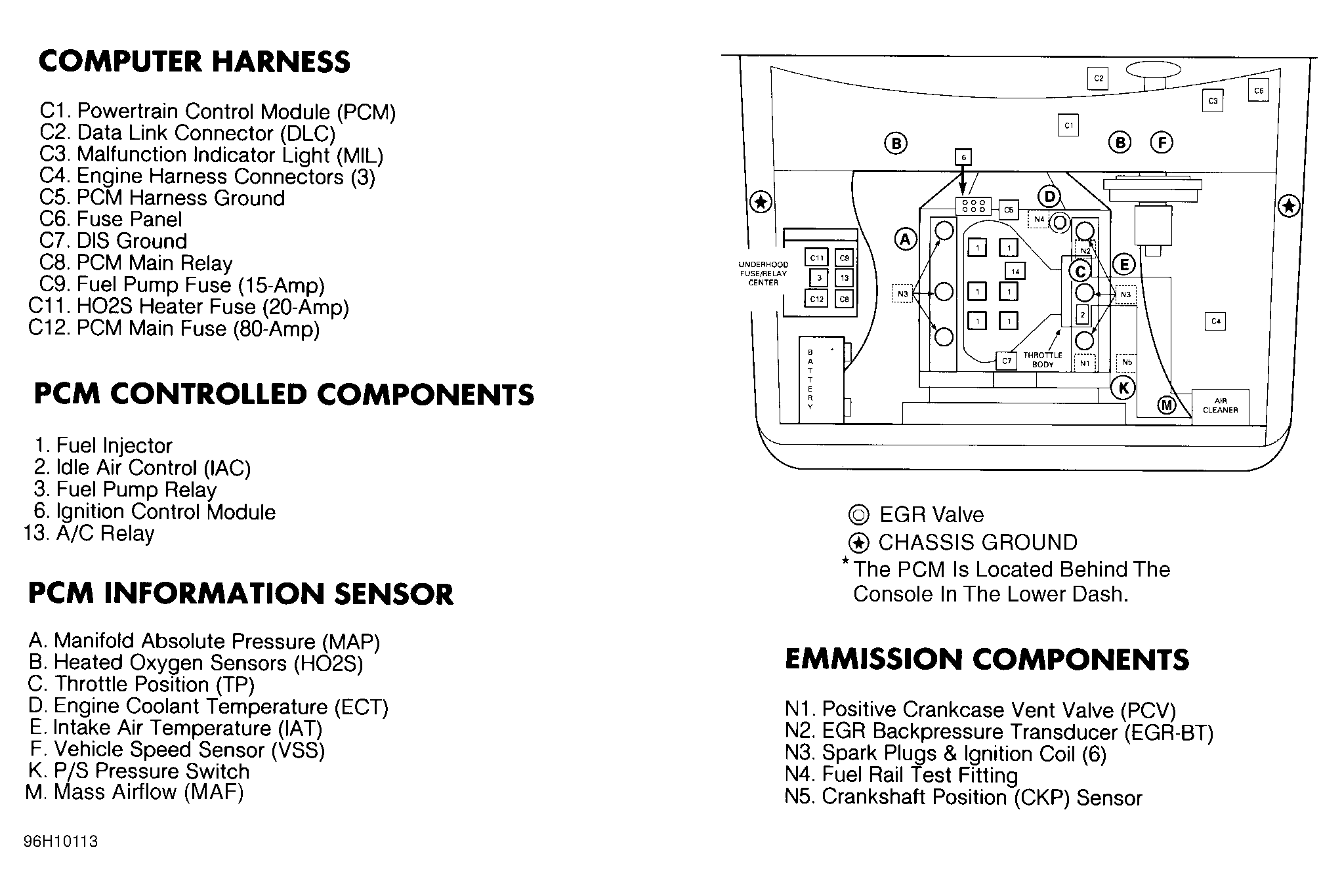

Fig 1: Component Locations For Rodeo 3.2L
Courtesy of ISUZU MOTOR CO.
