DTC P0336 - CKP Sensor Circuit 58X Reference Signal: Notes

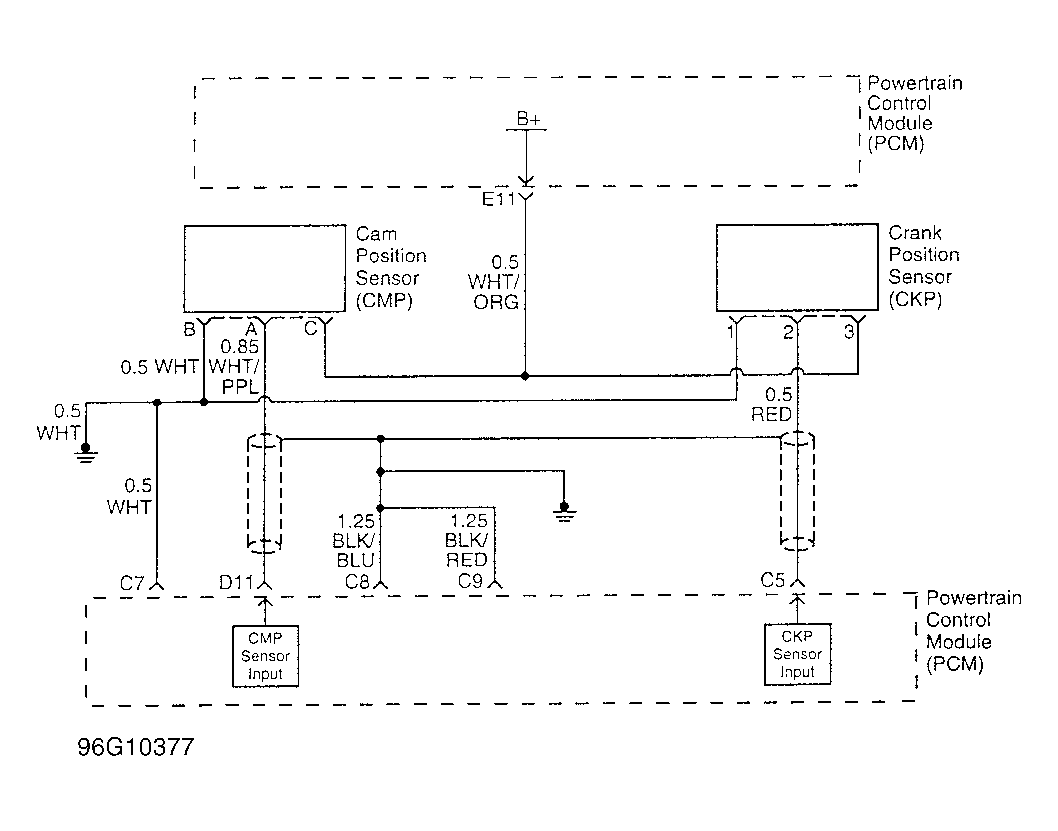

Fig 1: CKP Sensor Circuit (Rodeo 2.6L)
G96G10377Courtesy of ISUZU MOTOR CO.
