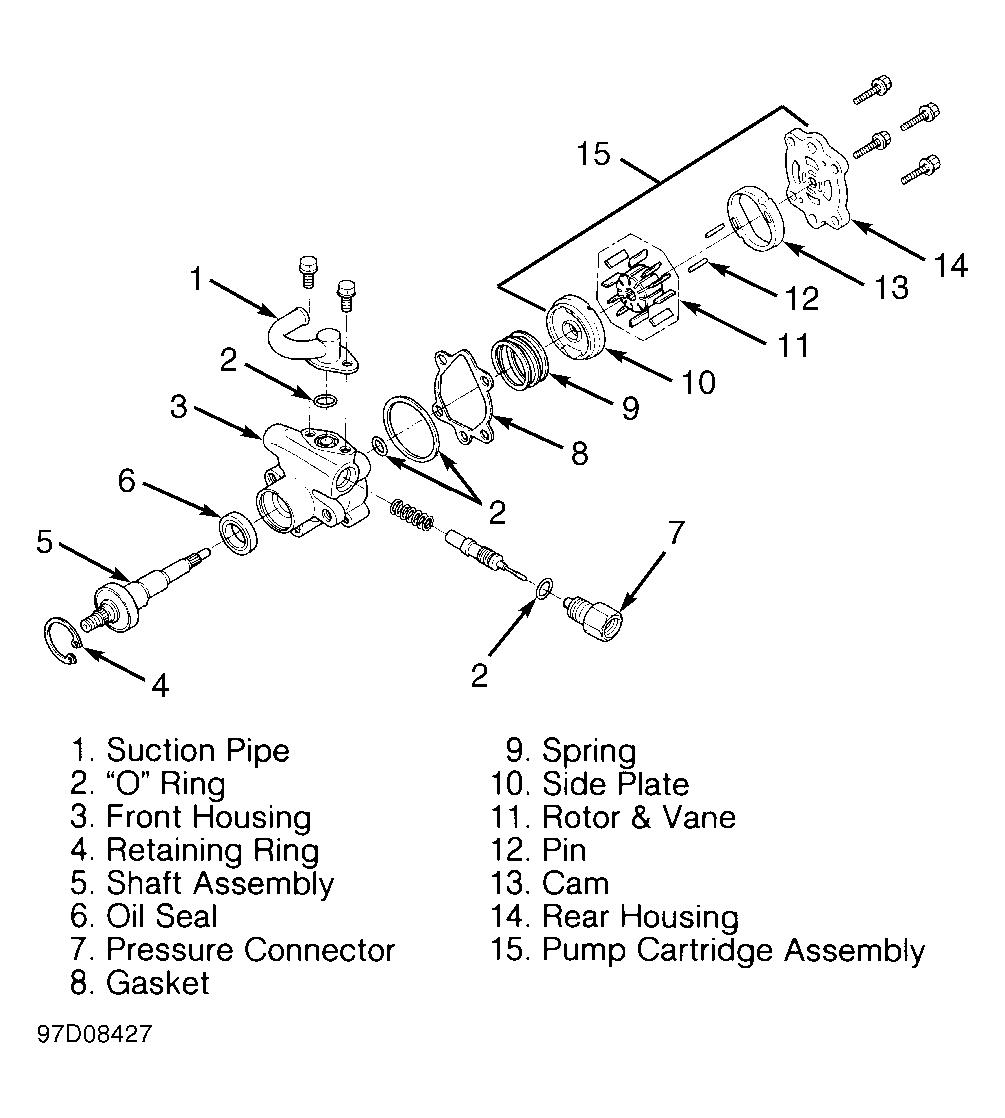

Power Steering Pump: Reassembly
To reassemble, reverse disassembly procedure using NEW "O" rings and seals. Install rotor with punch mark facing front. Install vanes into cam with curved edges inward. Tighten bolts to specification. See TORQUE SPECIFICATIONS table.
