BRAKELIGHT Switch

Disconnect 4-pin connector from brakelight switch. Using a DVOM, check for continuity between specified brakelight switch terminals, with switch in appropriate position. SeeFig 1 . If continuity is not as specified, replace brakelight switch.

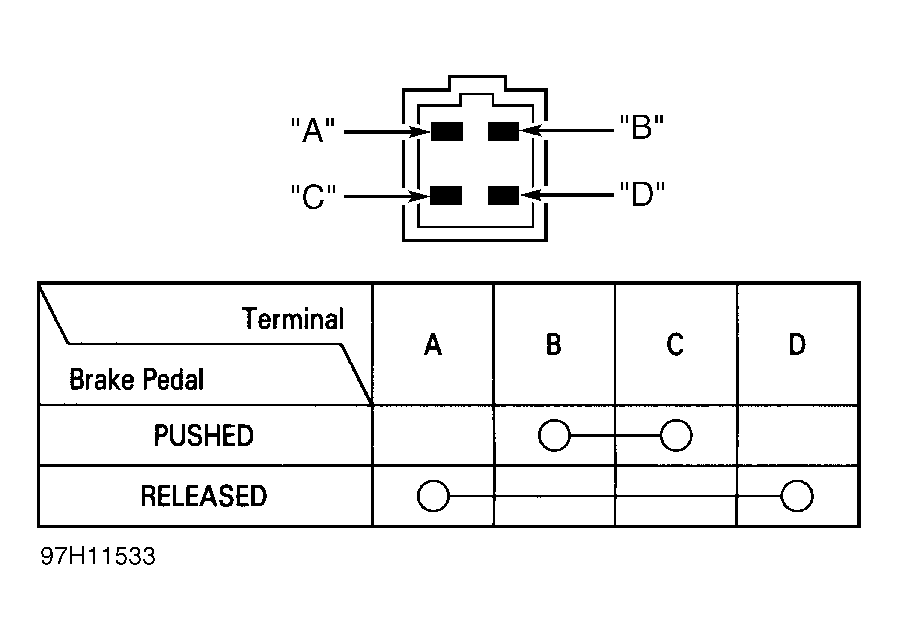

Fig 1: Identifying Brakelight Switch Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.
