Maintenance Information
›
Service Point Locations
Service Point Locations

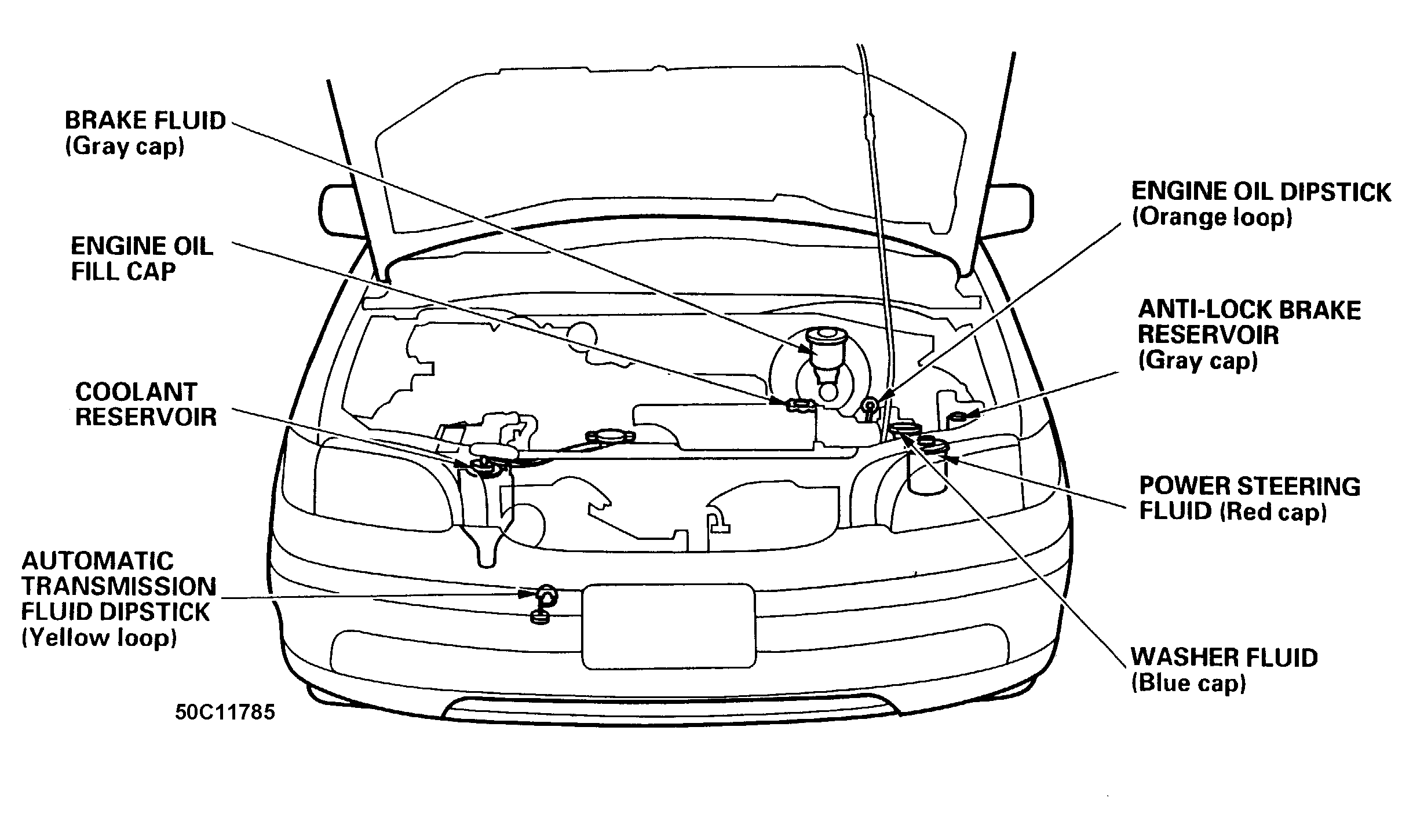

Fig 1: Service Point Locations
Courtesy of AMERICAN HONDA MOTOR CO., INC.

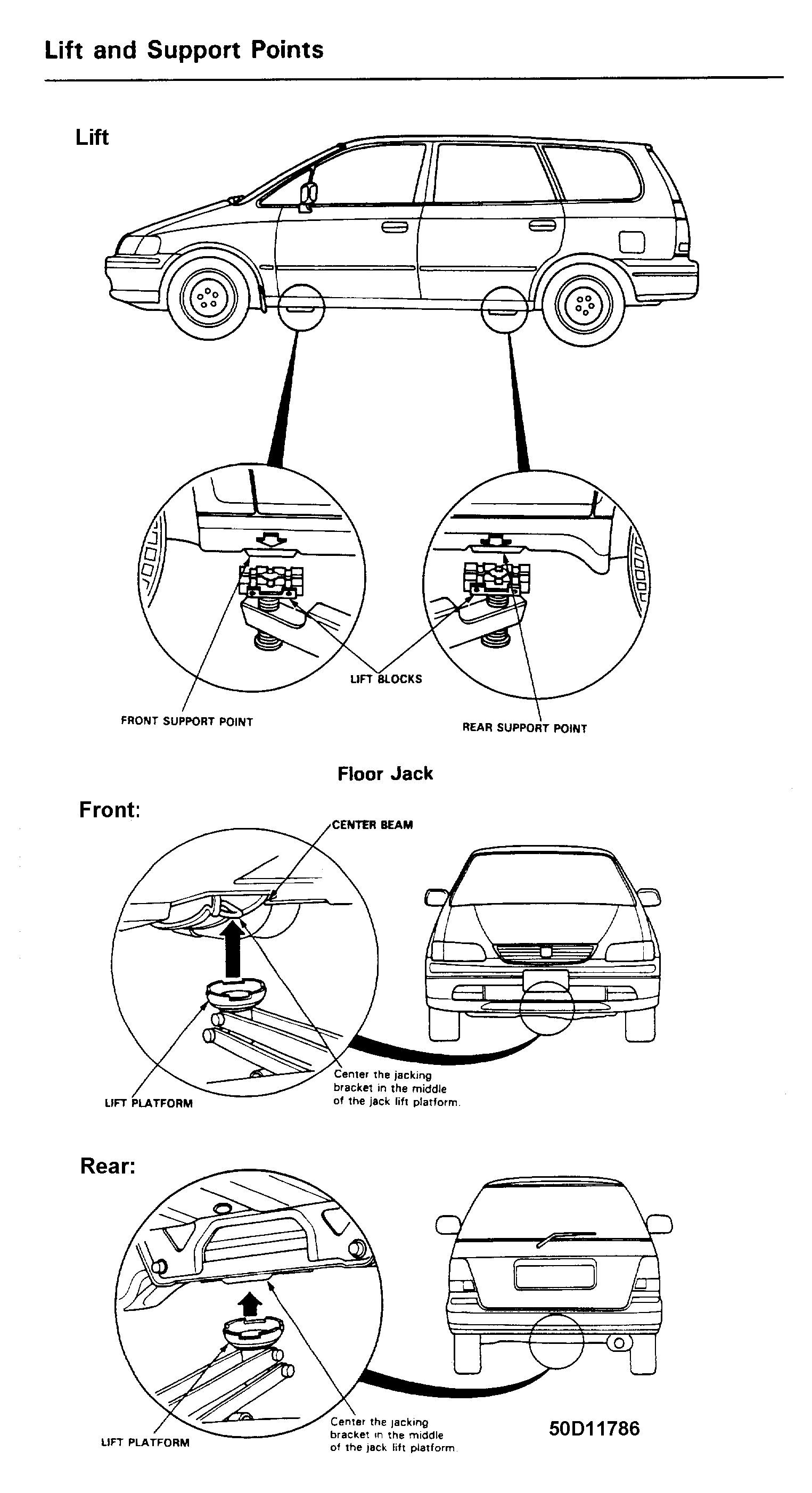

Fig 2: Lift Points
Courtesy of AMERICAN HONDA MOTOR CO., INC.

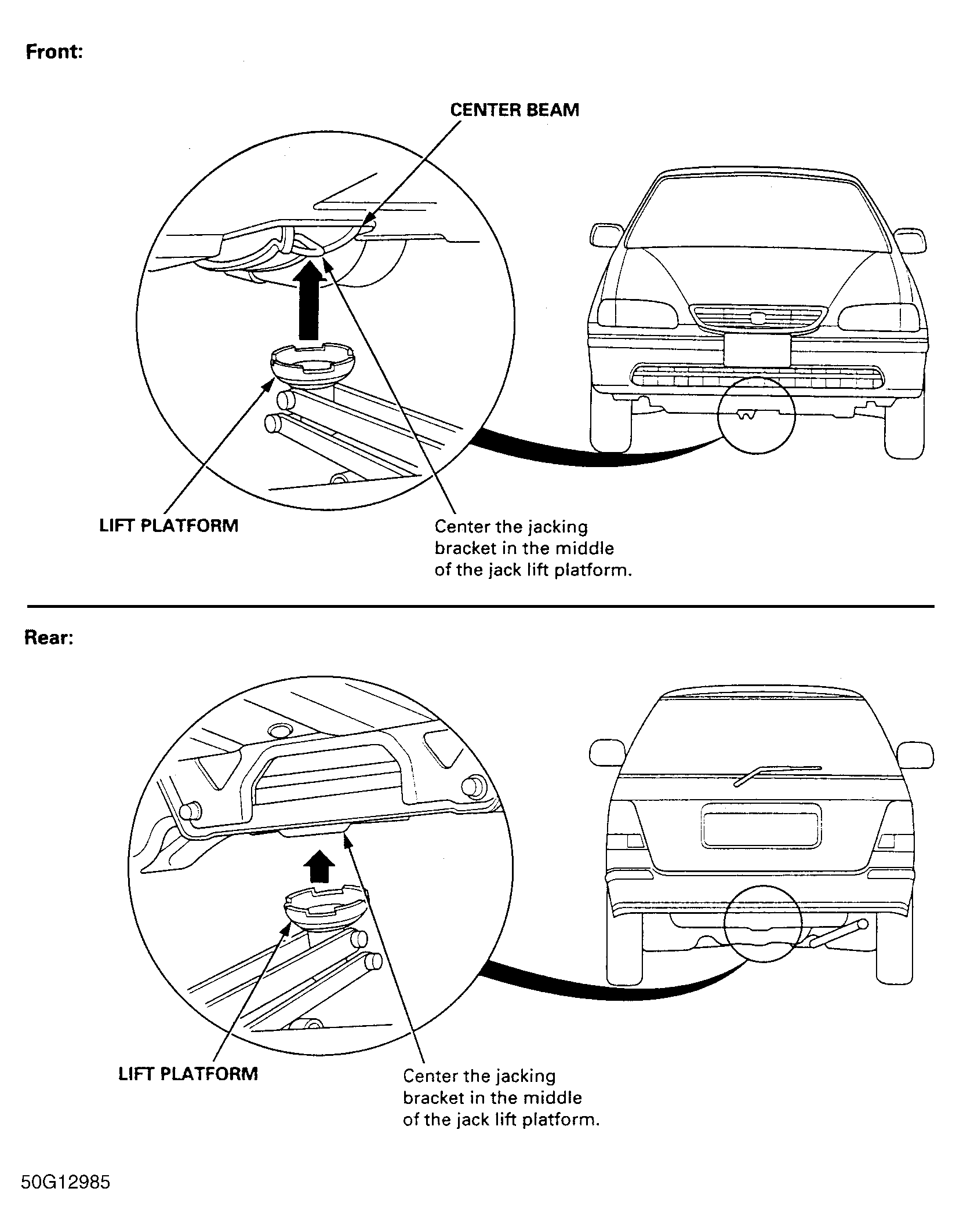

Fig 3: Floor Jack Lift Points
Courtesy of AMERICAN HONDA MOTOR CO., INC.

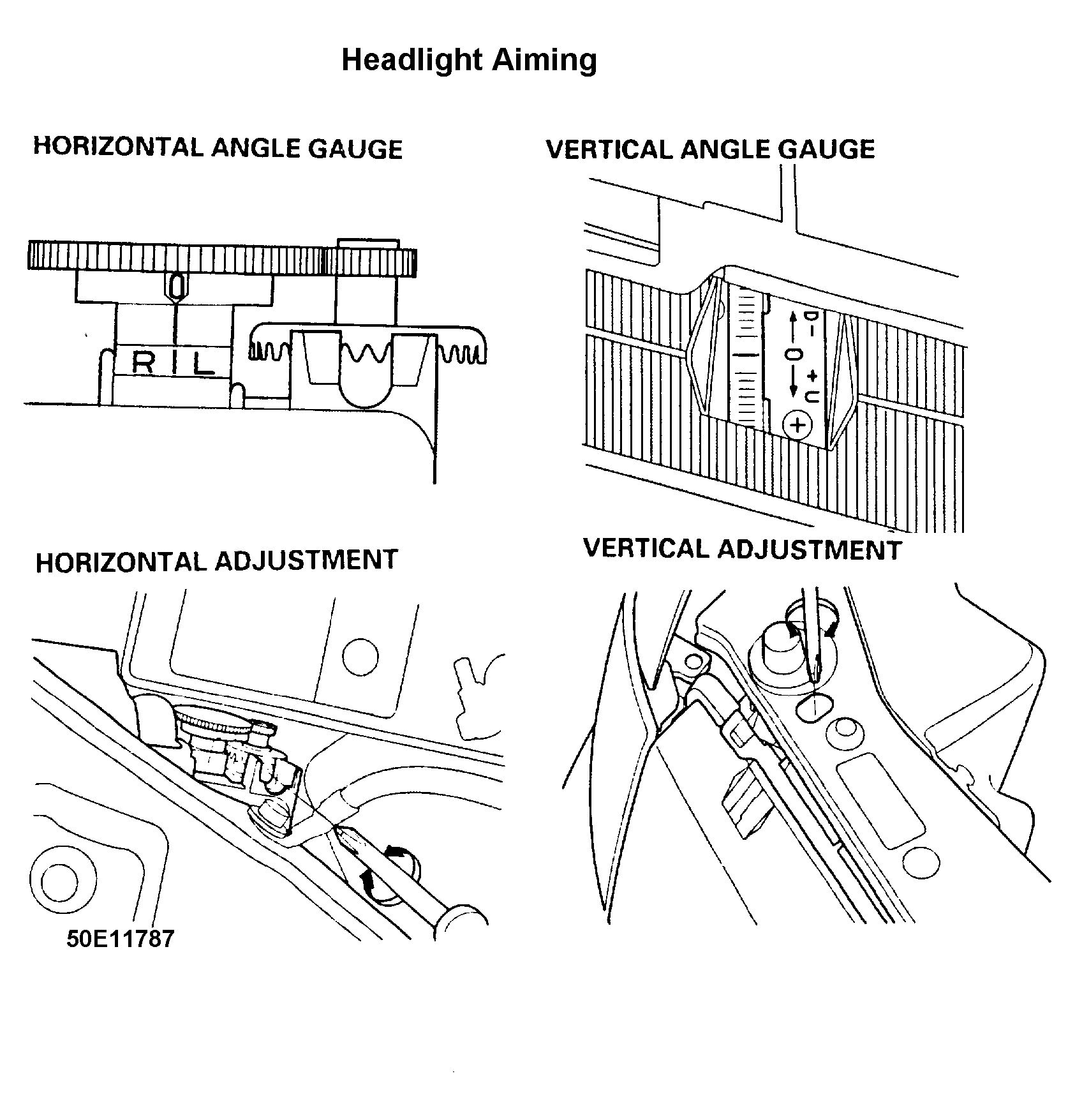

Fig 4: Headlight Aiming
Courtesy of AMERICAN HONDA MOTOR CO., INC.

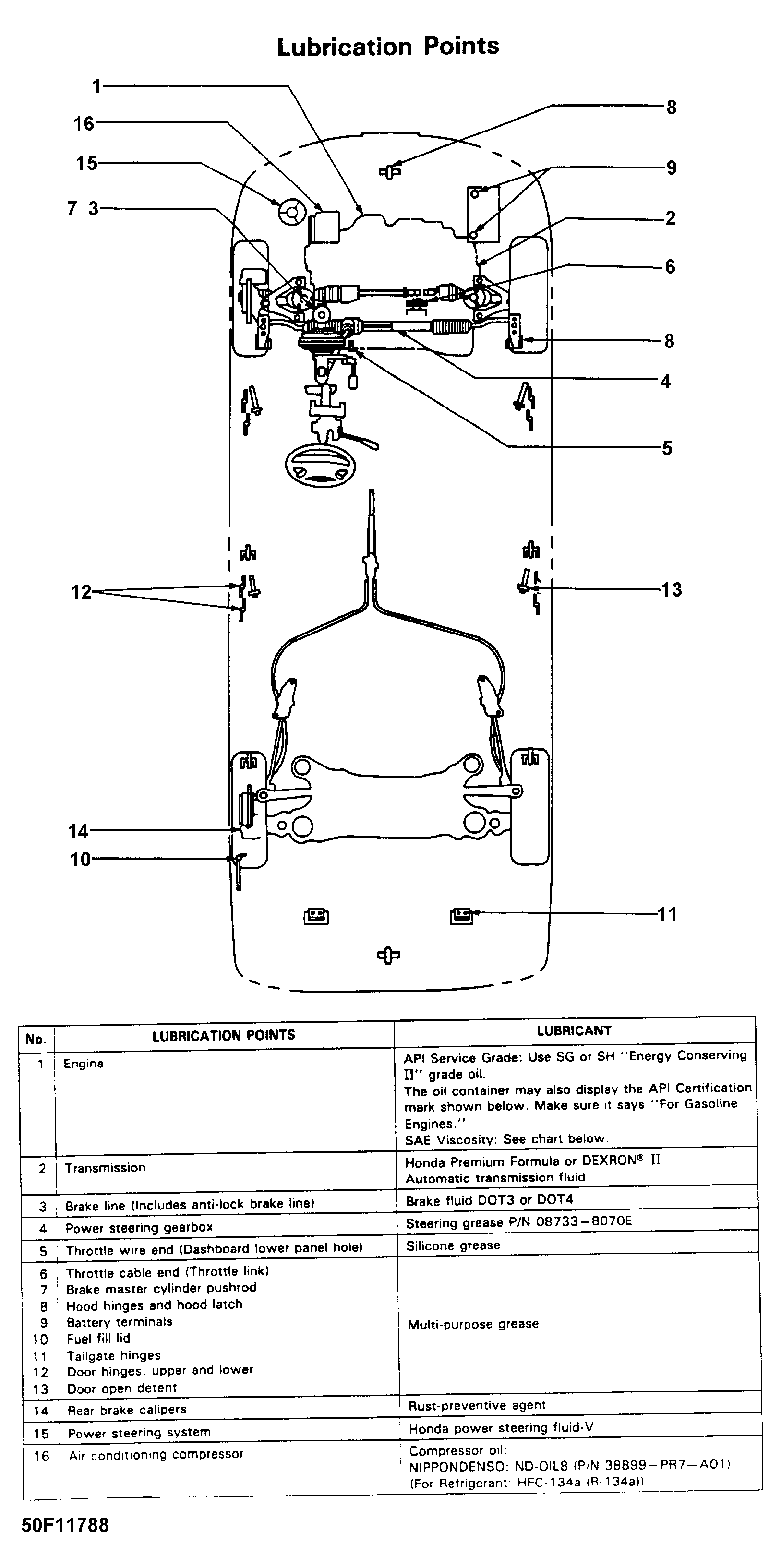

Fig 5: Lubrication Points
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
