Mirror Control Switch

Turn ignition off. Remove control switch from center console. Using an ohmmeter, check continuity between specified terminals of mirror control switch while operating switch in specified position. See Fig 1 . If control switch does not test as specified, replace switch.

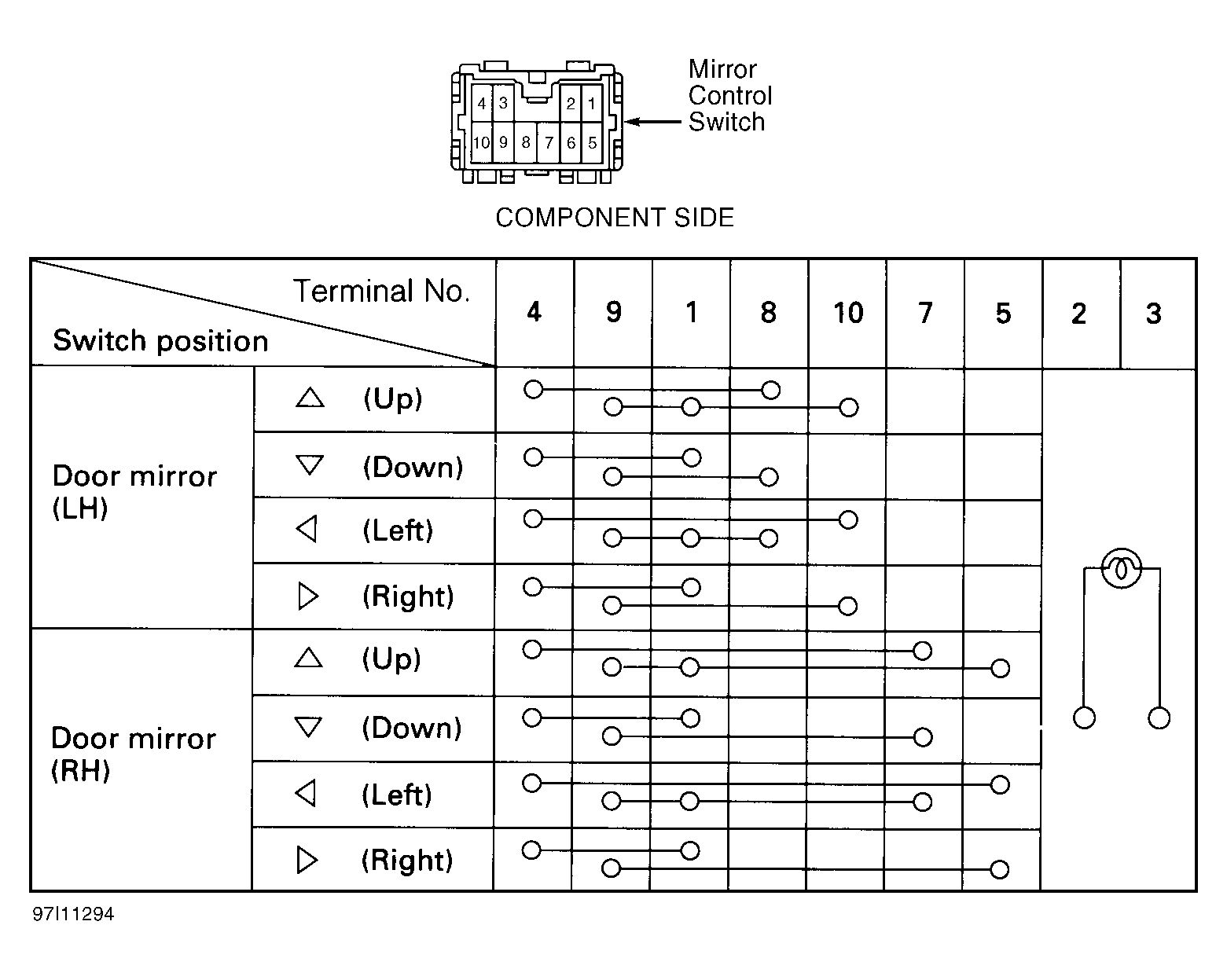

Fig 1: Testing Mirror Control Switch
G97I11294Courtesy of ISUZU MOTOR CO.
