DTC 17: Abs Enable Relay Circuit Shorted To Ground
DTC 17: Abs Enable Relay Circuit Shorted To Ground

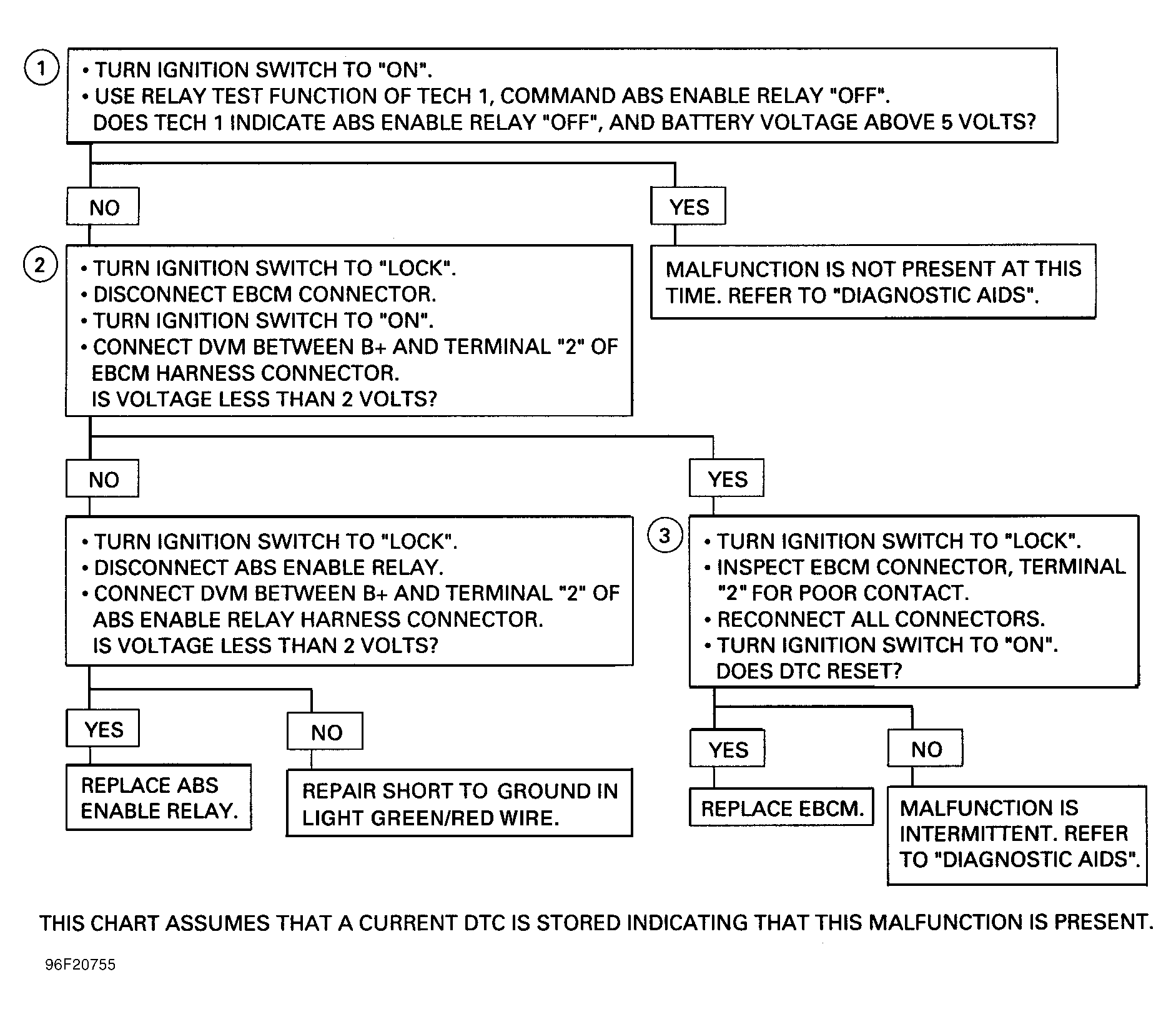

Fig 1: DTC 17: ABS Enable Relay Circuit Shorted To Ground
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
