Engine Controls - System/Component Tests - 2.6L
›
Component Locations
Component Locations

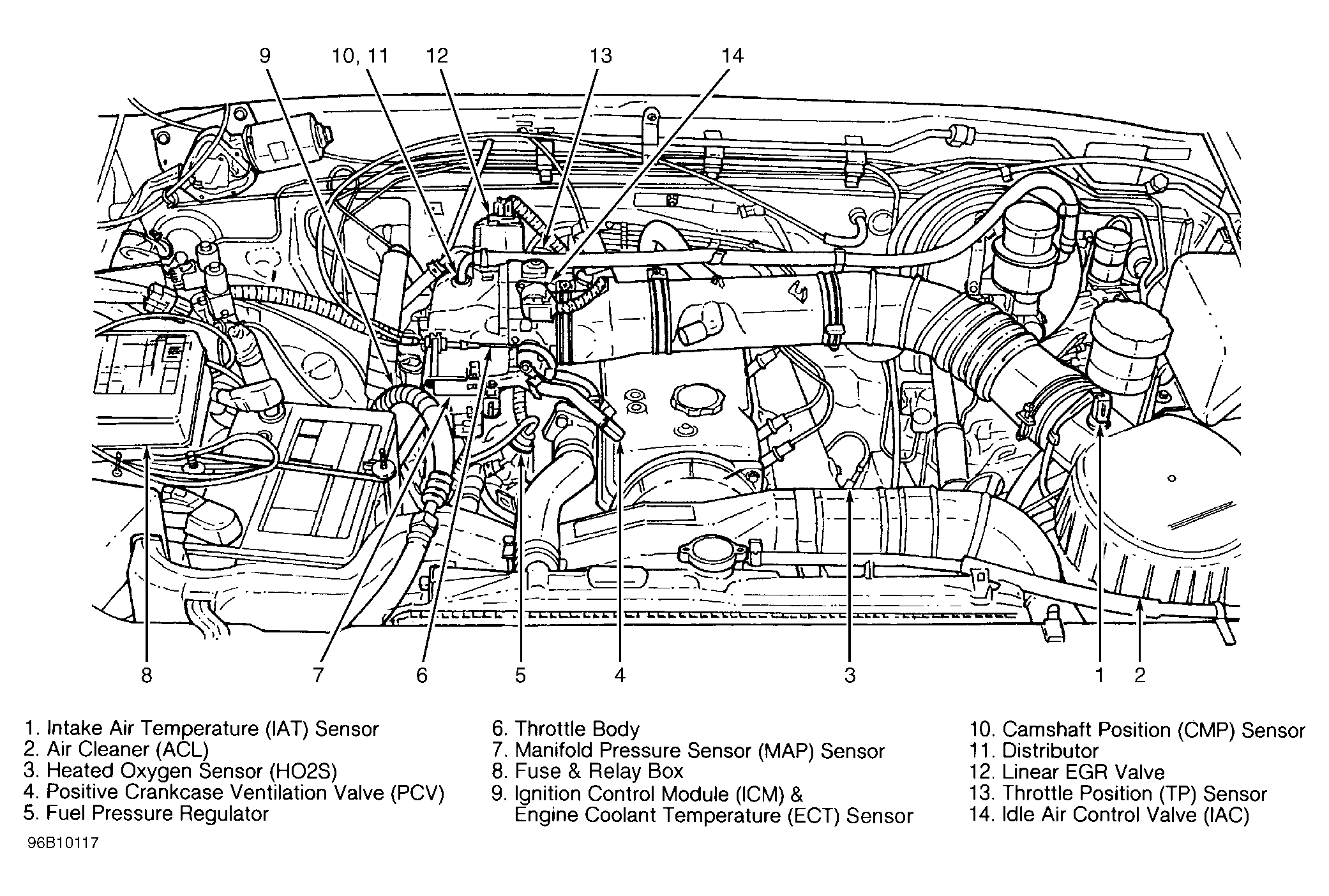

Fig 1: Component Location (2.6L)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
