Engine Controls - System/Component Tests - 3.2L
›
Component Locations
Component Locations

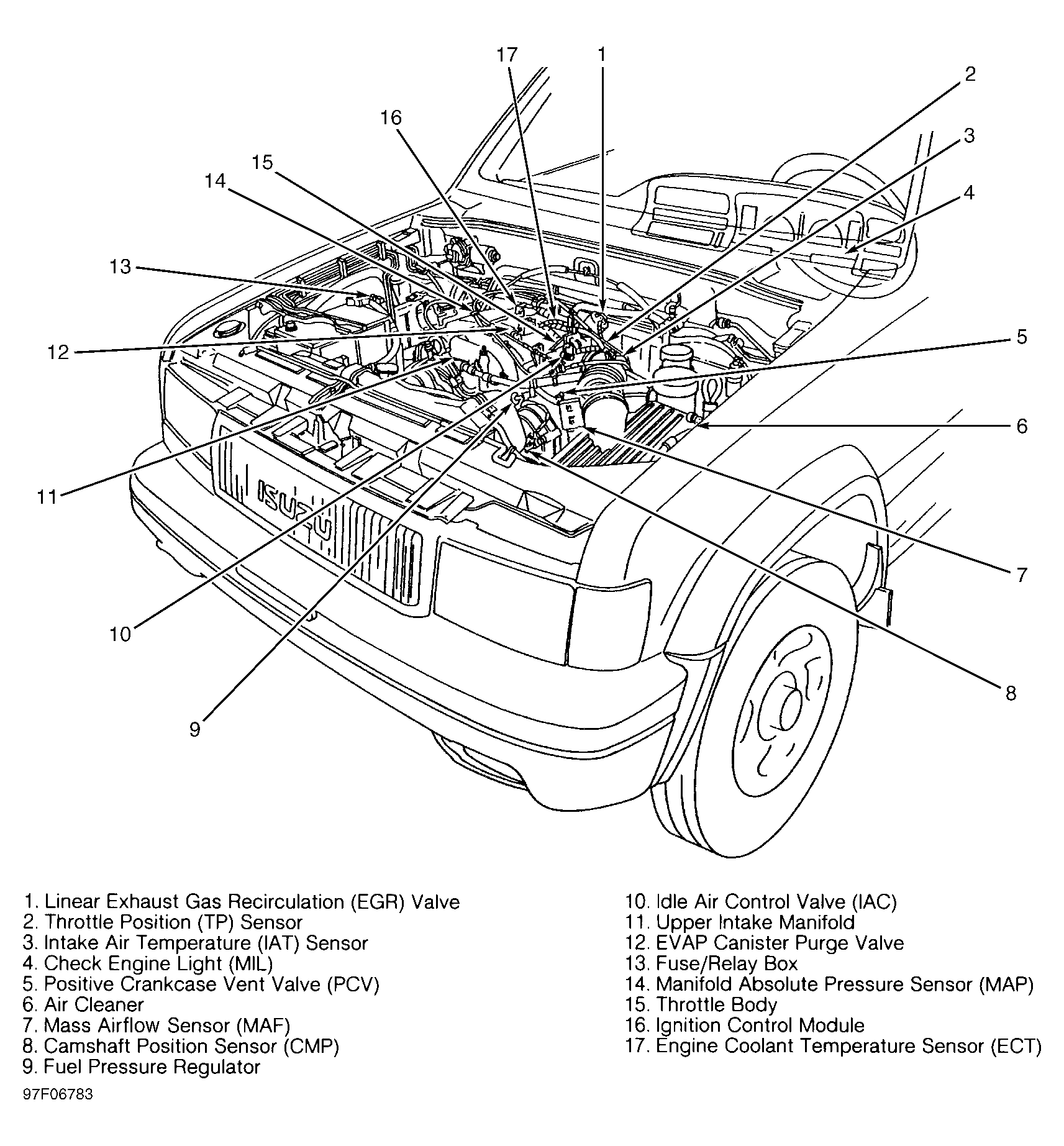

Fig 1: Component Location (3.2L)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
